Industrial-grade Serial to Wifi Wireless Module 232 Level Dual Internet Access RM04


Features:

- Support AP, Client, Repeater, Bridge, Router Five Working Mode
- Nax transmission ratio: 230400bps
- TCP connection: Max>20
- UDP connection: Max>20
- Serial baud ratio: 50-230400bps
- Bandwidth: 20MHz, 40MHz, Auto(optional)

Pin Configuration:



No.

Function Direction

Description

1

VDD5V

A

5V Power input

2

GND

GND

Power ground

3

WLAN_LED

O

WIFI start indicator light

4

3.3V

I

3.3V power output

5

LINK1

I/O

internet access 1 LED

6

USB_P



USB signal

7

USB_M



USB signal

8

I2S_SD



I2C DATA/GPIO

9

I2S_CLK



I2C CLK/GPIO

10

GIOP0

I/O

Common GPIO

11

TXOP1

I/O

internet access1 TX-P

12

TXON1

I/O

internet access1 TX-N

13

RXIP2

I/O

internet access2 RX-P

14

RXIN2

I/O

internet access2 RX-N

15

RXIN1

I/O

internet access1 RX-P

16

RXIP1

I/O

internet access1 RX-P

17

TXON2

I/O

internet access2 TX-N

18

TXOP2

I/O

internet access2 TX-P

19

RTS_N

I

Overall function serial port RTS

20

UART_RX

I

Simple serial port RX

21

UART_TX

O

Simple serial port TX

22

RXD

I

Overall function serial port RX

23

LINK2

I/O

internet access2 LED指示I/O

24

CTS_N

O

Overall function serial port CTS

25

RIN

I

GPIO

26

TXD

O

Overall function serial port TX

27

1.8V

Power Out

internet access1.8V output

28

VDD5V

Power In

5V input

Package list:

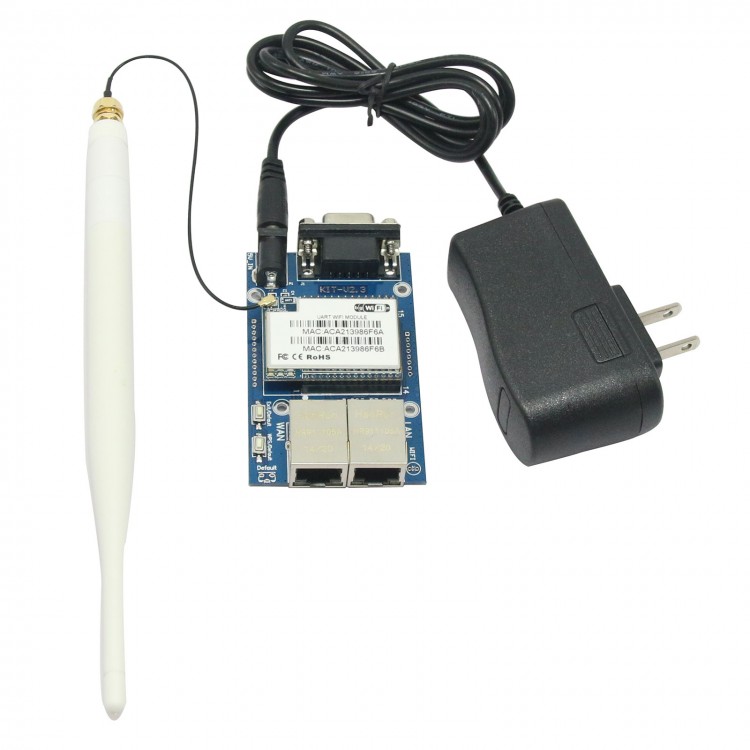

- 1 x Serial to Wifi Wireless Module 232 Level Dual Internet Access RM04
- 1 x charger
