Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $43.42 | $42.54 | $41.21 | $39.44 | Contact US |

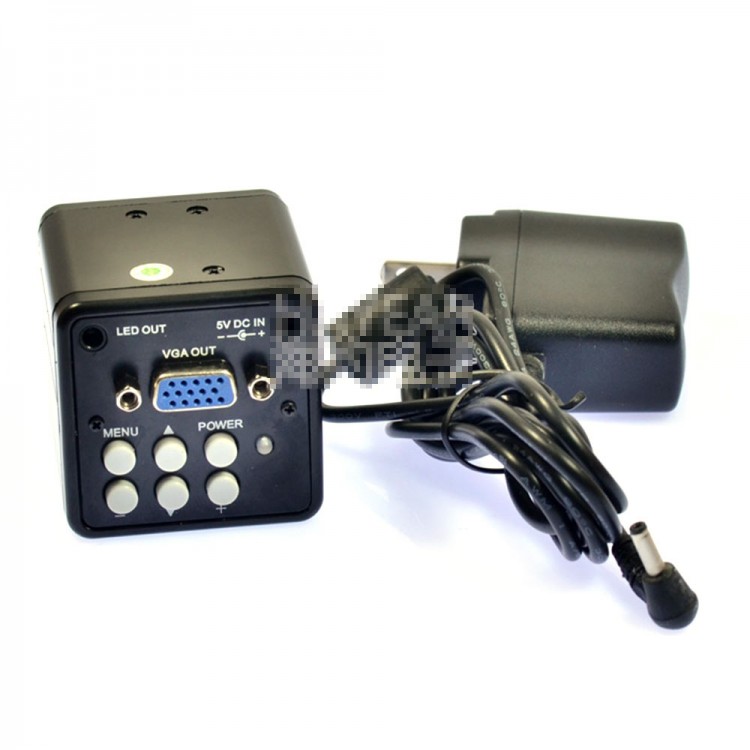

Industry Microscope Camera 2MP VGA Output PCB Inspection Repairing Electronic Camera Magnifier
Specification:
- Sensor type: 2MP 1/3 inch CMOS color
- Active pixel: 1600H*1200V
- Data bits: 8bit
- Pixel size: 2.8 um*2.8 um
- Frame rate: 15 fps @1600X1200, 30fps @1024X768
- Definition: 60Hz 1024X768,>600TV ;60Hz 1600X1200, >800TV
- Shutter type: Electronic shutter
- Dynamic range: 71dB
- Signal to noise ratio: 44dB
- Sensitivity: 1 V/lux-sec (550nm)
- Time of exposure: 10us - 60ms, automatic exposure
- White balance: Automatic
- Lens interface: C/CS
- Video interface: Standard VGA interface
- VGA output : 60Hz 1024X768 (default), 60Hz 1366X768, 60Hz 1280X1024
- Resolution: 60Hz 1440X900, 60Hz 1600X1200, 60Hz 1680X1050, 60Hz 1920X1080
- Working temperature: 0-60 C
- Power supply mode: External DC 5V ,allows 10% deviation
- Operating current: 600mA
- Power: 3W
- Size: 50*50*60 (mm)
Package List:
- 1 x Microscope Camera
- 1 x 5V power supply
- 1 x Manual
