INTRODUCTION
- The Intel® Edison development platform is the first in a series of low-cost, product-ready, general purpose compute platforms that help lower the barriers to entry for entrepreneurs of all sizes—from pro-makers to consumer electronics and companies working in the Internet of Things (IoT).
- Intel® Edison packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a wide range of customers.

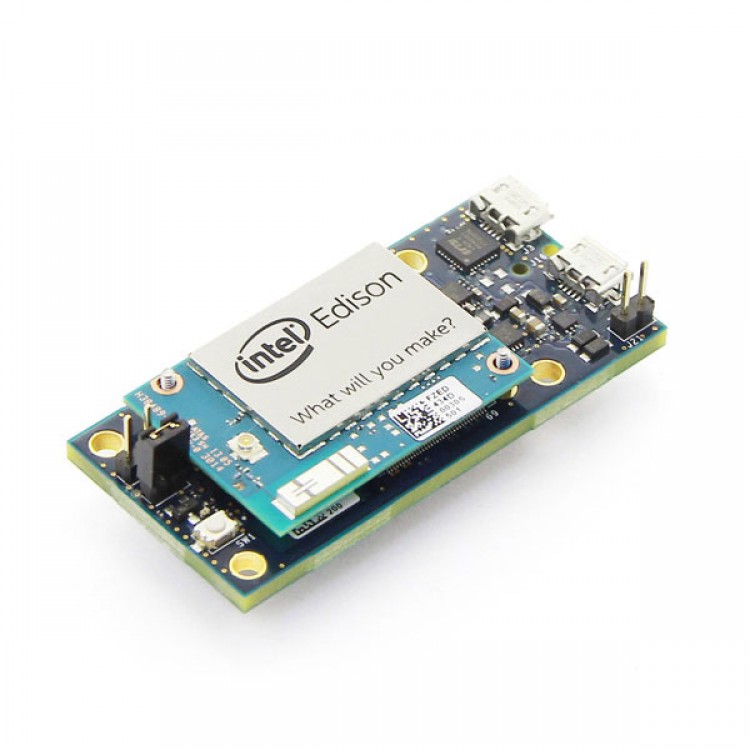

- This breakout kit is designed for non-Arduino users. This breakout board has a minimalistic set of features and is slightly larger than the Edison module.

- Note: This is a pre-order product. Shipping will start shortly at mid November.

FEATURES
    Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz.  It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp
    The Intel Edison module will initially support development with Arduino* and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future
    The Intel Edison module includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service

SPECIFICATION
    CPU: 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz
    RAM: 1 GB LPDDR3 @800MHz
    Flash: 4GB eMMC and SDIO interface
    GPIO: 70 pins
    WiFi: Dual-band 802.11 (a/b/g/n)
    Bluetooth: Bluetooth 2.1/4.0
    USB: 1 USB-OTG
    Other interfaces: SPI, UART, I2C, PWM
    Working Voltage: 7 to 15 VDC
    Power: Standby (No radios): 13 mW
    Standby (Bluetooth 4.0): 21.5 mW
    Standby (Wi-Fi): 35 mW
    Size: 35.5mm*25.0mm*3.9mm

DOCUMENTS
    Edison Main Page
    Getting Started with Edison
    Wiki Doc
    Edison Hands-on Tutorial: Pushbutton LED
    Edison Hands-on Tutorial: FlameFire Alarm
    Edison Hands-on Tutorial: Light Dimmer
    Edison Product Brief
    Edison - Software Downloads
    Forum
    Support

SHIPPING LIST
    Intel Edison with Arduino Breakout Kit x1
