Intelligent Wireless Auto-dial Alarm System with PIR Detector
- Auto-dial Alarm system(maximum supportability 99 defence area)
- Wireless easy installation
- Long distance listen-in/arm/disarm Function
- Intelligent Identification
- Can be triggered when power cable is cut
- Remote control
- Can pre-store 5-8 groups of Alarm phone number
- Can ad more sensors if needed
- With buile –in back up battery in case of electricity failure
System installation :
- Brief introduction of system
- This alarm consists of main engine of alarm and various wireless-connected accessories.When people enter the defense region illegally,the main engine will give sound of sirens and call the hosts,so hosts can return home or inform neighboring relatives to cope with the events instantly.Also,they can monitor the sound on the spot.
- REPLACE the plug of telephone outside line into LINE2 of the main engine and connect LINE1 of the main engine with the telephone using attached telephone wire of alarm.Then joint up the power source and warning signal;meanwhile the main engine will give a sond of “B”and light of the power source goes on,which means the main engine starts working.
Gate magnetism installation
- Use the random equipped double-side tape to stick a magnetic stripe on the door and affix the magnetometer emission box on the doorframe.Pay attention to put the magnetic strip slose to the side with indicator lights of the emission box during installation.assuring proper alignment and the smaller distance the better .
Infrared detector installation
- The principle of infrared detectors is to sense people’s movement through sensing infrared signals generated by bodies and the detection range is usually 5-12meters.Infrared sensor should be installed about 2.2 meters away from ground.Aim straight at the detection ranges.Moreover,the infrared detector can be only installed in the room.without facing the snshine,windows and other places where temperature is easy to change,because the installed location may influence the detection range and accuracy.

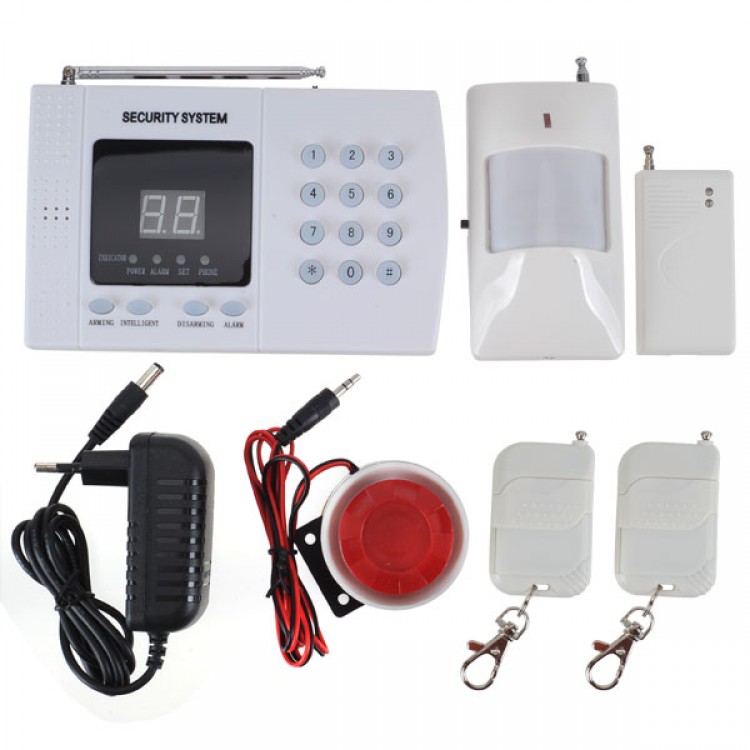

- Alarm system (central unit ) 1 pc
- Wireless PIR detector 1 pc.
- Wireless door (gap) sensor 1 pcs.
- Remote controller 2 pcs.
- Mini siren 110dB/0.3m 1 pc.
- Power supply 1 pc.
- Users/ Manual (english/chinese)1 pc
