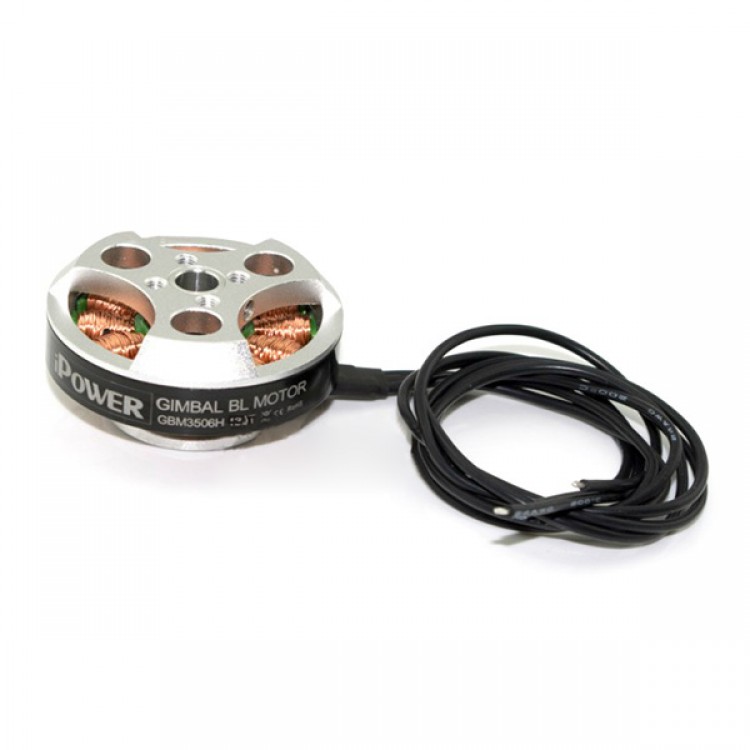

iPower GBM3506H-130T Hollow Shaft iFlight Gimbal Brushless Motor for FPV PTZ
Feature:
- 100% Brand new!
- Reasonable structure design, larger torque and stronger performance
- Absolutely compatible with Russia Alexmos brushless motor control board
- Concise and compacted appearance
- Top-quality material and exquisite workmanship
- Strict quality control system for the quality guarantee
Specification:
- Model NO.:GBM3506H-130T
- Weight:64g
- Motor Dimensions:42x14mm
- Stator Dimensions:35x6mm
- Copper wire(OD):0.21mm
- Configuration:12N14P
- Resistance:14.3 ohms
- Wind type and termination method:Star style
- Pre-wounded with 130 turns
- Hollow Shaft: inner diameter 6mm,outside diameter 8mm,thickness:2mm
- Bottom mounting holes: 16 and 19mm center to center
- Top mounting holes: 12mm center to center
- Camera range: 200-400grams
Package contains:
- 1 * GBM3506H-130T motor
