Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $16.03 | $15.71 | $15.21 | $14.56 | Contact US |
iPower MultiMate MT1806 2300KV Motor Dia 18mm Stator Thickness 6.0 mm for Quadcopter Multicopter
Specification:
- Motor Kv 2300 RPM / Volt
- Stator Diameter 18.0 mm
- Stator Thickness 6.0 mm
- No. of Stator Arms 12
- Magnet Poles 14
- No-Load Current (Io/10V) 0.6 Amps
- Motor Resistance (Rm) 0.117 Ohms
- Max Continuous Current 14 Amps
- Max Continuous Power 150 Watts
- Weight 21 Grams
- Outside Diameter 23.5 mm
- Body Length 18 mm
- Overall Shaft Length 45.0 mm
- Max Lipo Cell 2-3s

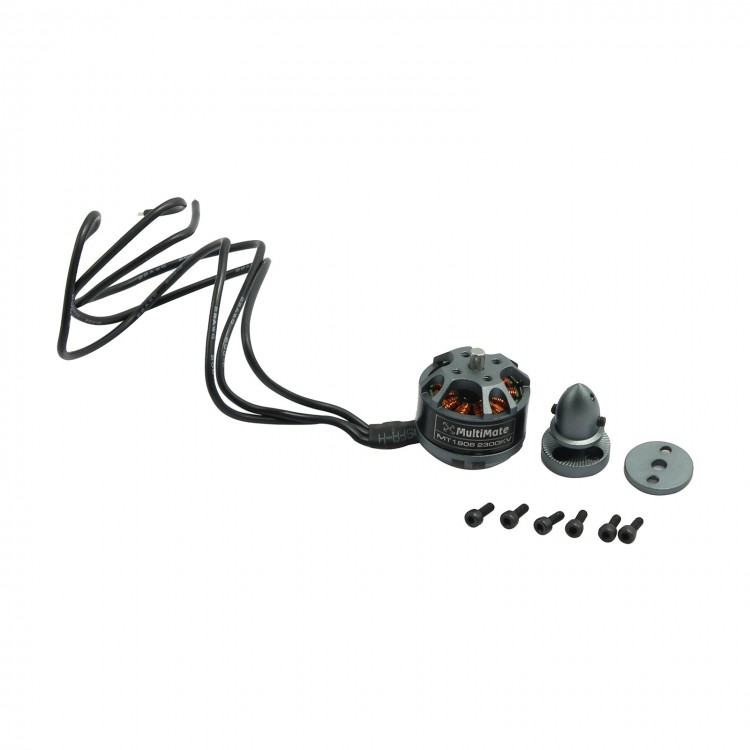

- Propeller mounting cross mount or reference to below image
