IR Audio Dome CCTV Camera NET Network 16CH DVR Security System 1000GB HDD
  • IR Audio Dome CCTV Camera NET Network 16CH DVR Security System 1000GB HDD

  • SKU:17487
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 80
  • Price:$801.64
  • Price in reward points: 8016
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $785.61 $769.57 $745.53 $713.46 Contact US

IR Audio Dome CCTV Camera NET Network 16CH DVR Security System 1000GB HDD

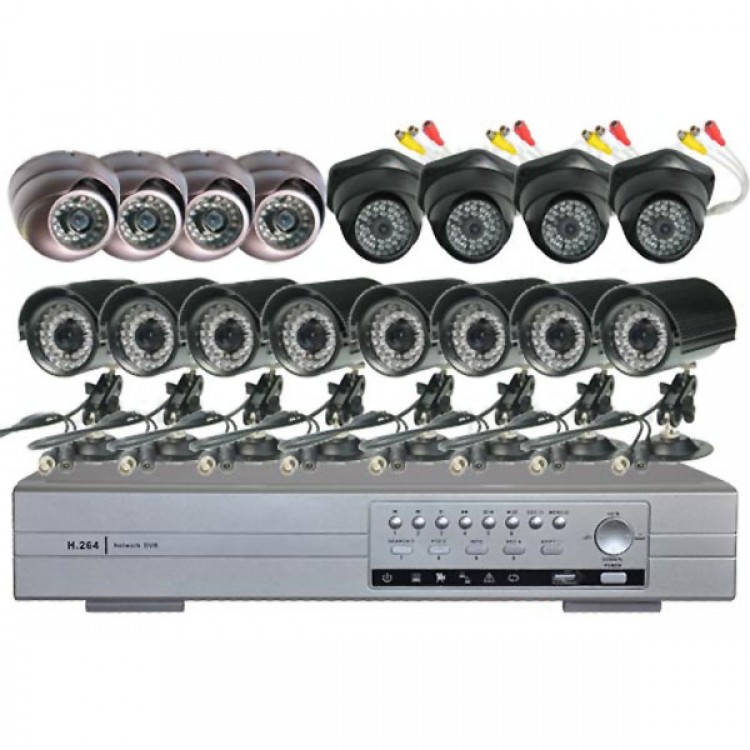

The kit includes a 8CH H.264 standalone DVR,8pcs 36LED IR waterproof camera,4pcs 36LED IR armour dome camera,4pcs 48LED IR audio dome camera,FREE AUDIO/VIDEO/POWER/AUDIO cable,FREE CAMERA/DVR power supply, quickly and easily install.


Features:
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
- GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
- Support CIF recording resolution
- Hexaplex operation simultaneously:Preview,recording,playback,and network live,backup,playback
- Multiple record mode:Auto、timer、motion、alarm recording mode
- Recording playback support:Normal play、Speed play、Fast back play、Manual single-frame slow play
- Support drag the progress bar can be targeted playback time directly
- Support Multiple channel playback at the same time(Support 16CH playback simultaneously)
- Support Network function:one IE browser centralized monitoring and SNS Software for multiple DVR (up to 20 DVR simultaneously)
- Support DHCP,DDNS,PPPoE and NTP network service
- Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser
- Support more than 17 kinds protocol of the PTZ control
- Supports Multiple backup mode:USB flash drive,USB hard disk,USB DVD-RW and network backup
- Support pre-alarm recording (before 10 sec),not lose any suspicious screen
- Support 2 SATA HDD,unlimited for the capacity
- Support 4ch audio input
- Support remote view by Mobilephone
- Support VGA output
- Support alarm triggered recording will send alerts with image to the designated emails
- System auto recovery to power after power reconnected,and return to the pre-power-down state

H.264 Standalone DVR Specifications:


Video Compression Format
H.264
Video System
NTSC / PAL
GUI OSD
YES
Video Input(BNC)
16CH BNC input(composite video signal 1Vp-p 75Ω BNC)
Video Output(BNC)
1CH BNC output
Audio Input/Output
4CH audio input,1CH audio output(RCA)
Maximum Recording Rate(CIF)
CIF:352×240 pixels with 480 FPS
352×288 pixels with 400 FPS
Image Quality Setting
Supper Best,Well,Good,Medium,Normal and Bad
Hard Disk Storage
Support 2 SATA HDD,unlimited for the capacity
Alarm Input/Output
8 alarm input,1 alarm output
Multiplex Operation
Live display/record/playback/backup/network transmit
Recording Mode
Manual/Timer/Motion
Playback Mode
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
Backup Device
USB flash disk/USB remove HDD/Network/USB DVD -RW
Pre-alarm Recording
Recording for 10 seconds before alarming
Network Protocol
TCP/IP、PPPOE 、DDNS and NTP
Ethernet remote view
Support remote surveillance up to 10 users simultaneously
SNS software
YES
Mobilephone View
YES
VGA Interface
YES
Log record function
YES
Image Tour
YES
IR Remote control
YES
Video Loss Detection
YES
Video Adjustable
Hue /Saturation /Contrast /Brightness adjust
PTZ Control
YES,built-in RS-485 port
USB Mouse
YES
Power Source
DC 12V  4A
Key Lock(Password Protection)
YES
Power-down recovery function
YES
Size(mm)
370(W) x285(D) x 72(H)

Specifications for 48LED IR Dome Camera:
Pickup Device
1/4"SHARP
Horizontal Resolution
420 TVL
Pixels
PAL:500(H)×582(V)
NTSC:510(H)×492(V)
TV SYSTEM
PAL/NTSC
LED
48 PCS
Lens
3.6mm
Sync System
Internal Syncronization
Usable Ⅲumination
0.000LUX/F1.2 (LED on)
S/N Ratio
≥48dB(AGC Off)
Gamma  Characterlstic
0.45
Video Output
1.0Vp-p 75Ω
Scanning System
PAL:625 lines 50 Field/sec
NTSC:525 lines 60 Field/sec
Electronic Shutter Time
Auto,PAL 1/50-100,000Sec
NTSC 1/60-1/100,000Sec
White Balanc
Auto
Power Supply
DC12V±10% 600 mA



 Specifications for 36LED IR Dome Camera:

MODEL
F-2008HC
Pickup Device
1/4"SHARP
Horizontal Resolution
420 TVL
Pixels

PAL:500(H)×582(V)
NTSC:510(H)×492(V)
TV SYSTEM
PAL/NTSC
LED
36 PCS
Lens
3.6 mm
Sync System
Internal Syncronization
Usable Ⅲumination
0.000LUX/F1.2 (LED on)
S/N Ratio
≥48dB(AGC Off)
Gamma  Characterlstic
0.45
Video Output
1.0Vp-p 75Ω
Scanning System

PAL:625 lines 50 Field/sec
NTSC:525 lines 60 Field/sec
Electronic Shutter Time
Auto,PAL 1/50-100,000Sec

NTSC 1/60-1/100,000Sec
Operation  Temperature
-10℃ - +50℃ RH95% Max
Storage  Temperature
-20℃ - +60℃ RH95% Max
White Balanc
Auto
Power Supply
DC12V±10% 600 mA

Specifications for 36LED IR Waterproof Camera:

Pickup Device
1/4"SHARP
Horizontal Resolution
420 TVL
Pixels
PAL:500(H)×582(V)
NTSC:510(H)×492(V)
TV SYSTEM
PAL/NTSC
LED
36 PCS
Lens
6mm(Defaulted)
Gamma Characterlstic
0.45
Video Output
1.0Vp-p 75Ω
Scanning System
PAL:625 lines 50 Field/sec
NTSC:525 lines 60 Field/sec
Electronic Shutter Time
Auto,PAL 1/50-100,000Sec
NTSC 1/60-1/100,000Sec
Operation Temperature
-10℃ - +50℃ RH95% Max
Storage Temperature
-20℃ - +60℃ RH95% Max
White Balanc
Auto
Sync System
Internal Syncronization
Usable Ⅲumination
0.000LUX/F1.2 (LED on)
S/N Ratio
≥48dB(AGC Off)


Package Included:
- 1 x 16 Channel H.264 Network Stand-alone Digital Video Rcorder
- 1 x 1000GB HDD
- 1 x Power Adaptor for Stand-alone DVR
- 1 x Power Cord for Stand-alone DVR
- 1 x Remote Controller for Stand-alone DVR
- 1 x Mouse for Stand-alone DVR
- 1 x CABLE connect Stand-alone DVR to TV
- 1 x CD SOFTWARE
- 1 x User manual (English)
- 4 x 48IR Color Day&Night AUDIO Dome Cameras
- 8 x 36IR Color Day&Night Waterproof Cameras
- 4 x 36IR Color Day&Night Waterproof ARMOUR DOME Cameras
- 4 x 65ft Audio/Power/Video cables, 8x65ft Power/Video cables,4x50ft Power/Video cables
- 3 x Power Suppliers for Camera (12V 5A)
