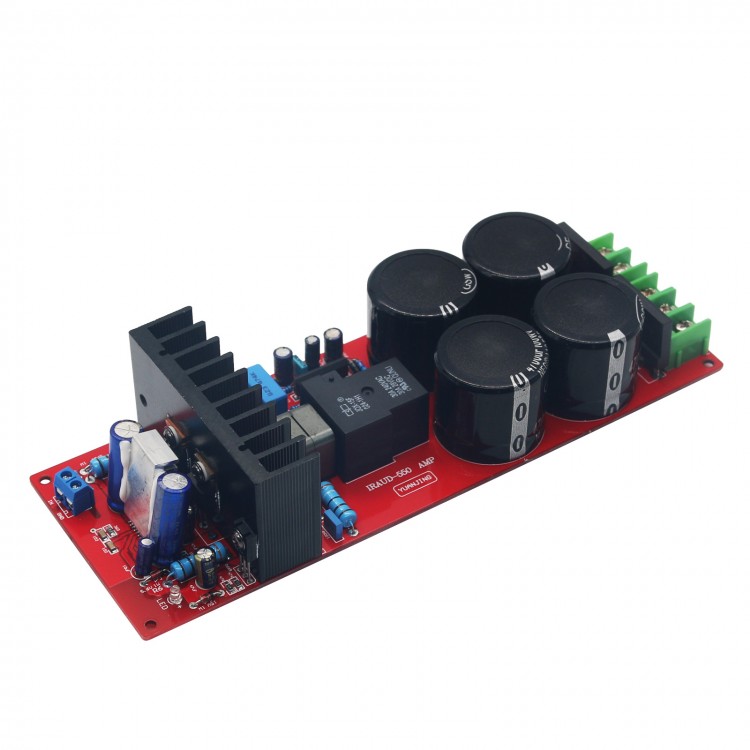

IRS2092 top Class D amplifier board (dual rectifier with protection)

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.99
  • Price in reward points: 450 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.09 $43.19 $41.84 $40.04 Contact US
Quantity:

IRS2092 top Class D amplifier board (dual rectifier with protection)

Description:
- Voltage Range: AC double-20V-58V (rectified voltage ± 28V-80V), pay attention to voltage below AC 40V, R6 R7 (39K 3W) to switch to 1.5KΩ/3W resistance.
- Maximum output power: 350W/8Ω the exchange of two 58V power supply, distortion <0.1%  700W/4Ω exchange dual 58V power supply, distortion <0.1%
- Voltage magnification: 36 times (to enlarge)
- Input sensitivity: 1.6V (RMS)
- Input impedance: 14KΩ
- Frequency response of 0-50KHz ± 1dB 10W/8Ω The
- Residual noise voltage: of 200uV  100dB">Dynamic Range:> 100dB

Packaging Details:
- Unit Type: 1x IRS2092 top Class D amplifier board
