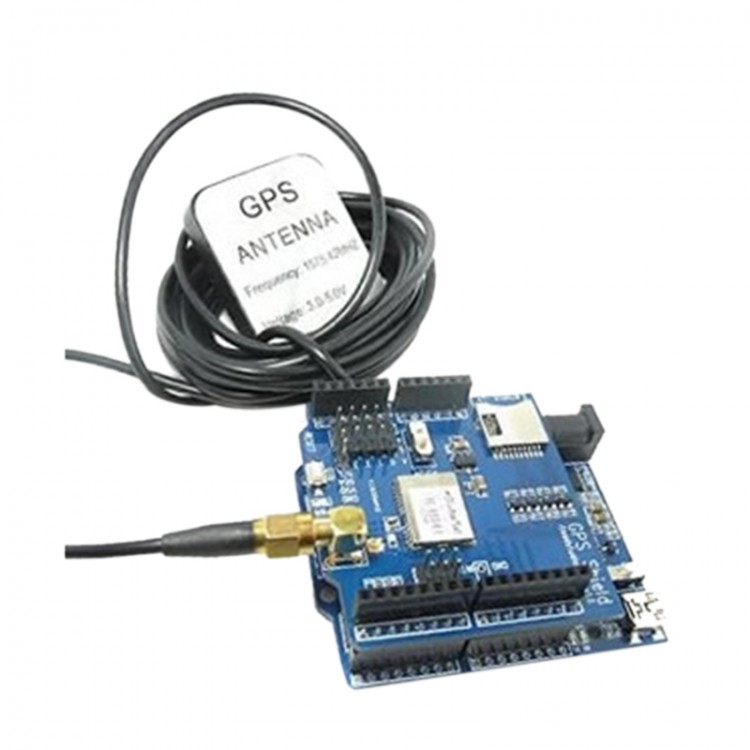

ITEAD GPS Navigation Expansion Board Shield Module No Antenna with SD Card Slot for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.30
  • Price in reward points: 343 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.61 $32.93 $31.90 $30.53 Contact US
Quantity:

ITEAD GPS Navigation Expansion Board Shield Module No Antenna with SD Card Slot for Arduino

Description:

- The expansion boards are designed specifically for the Ard-uino UNO GPS record expansion board. Offers 2 kinds of GPS antenna connector. Support 3.3V and 5V 2-level operations base (such as leaf Maple), leads with multiple analog pin IO port interface, can be directly connected to the electronic building blocks for rapid prototyping. With an SD card slot, support GPS information record.
- Add tracking features
- GPS shieldIs an extension of a global positioning can be achieved, put them together, we can easily use text messaging to query the current position coordinates, can be applied to cargo location queries.

Accessories include:
- ICOMAT
- Iteaduino MEGA2560
- GPS expansion board
- GPS antenna

This tutorial only works best iteaduino mega2560 development boards, because we use are two serial ports. UNO only 1, ARD-uino mega2560 series 1 on the front side, 3 in the back, out of place.

Hardware settings and build:
a) IcomsatOne end of the switch to UART, jumper caps as RXD->D2,TXD->D3 as shown in figure, connect the GSM antenna and plug in the mobile phone SIM card. Jumps in detail CAP and PIN please download and refer to the product manuals and schematics
b) GPSExtension Board switch to 5V, jumper caps by RXD->D1,TXD->D0 , connect the GPS antenna.
c) The program will be use two serial ports of MEGA2560, UART1 connects to Icomsat,UART2 connects to the GPS shield, also have a spare serial port can be burned to program, so you can take stack of 3 panels, connect the USB cable, download firmware directly.
Make the switch of mega2560 to 5V . (This Board can also provide 3.3V IO-level)
Fold GPS shield up and Icomsat , and then inserted into a MEGA Board Board a row of Ard-uino on the socket

APJ:
a)First we need to download Ard-uino GSM and GPS support.
GSM:pan.baidu.com/s/1nt6xcPr
tinyGPS:pan.baidu.com/s/1kT9OZJp

b)Unzip both libraries to Ard-uino\\libraries under the directory, and then open the Arduino IDE.

Then copy and paste the code into the Ard-uino IDE, download MEGA boards. "Board the Board type, select mega2560 or ADK"
#include "SIM900.h"
#include <SoftwareSerial.h>
#include "inetGSM.h"
#include "sms.h"
#include "call.h"

#include <string.h>

#include <TinyGPS.h>

/* This sample code demonstrates the normal use of a TinyGPS object.
   It requires the use of SoftwareSerial, and assumes that you have a
   4800-baud serial GPS device hooked up on pins 3(rx) and 4(tx).
*/

TinyGPS gps;

#define ledpin 13
#define pwrkey 27

//**************************************************************************
char sms_rx[122]; Received text SMS
byte type_sms=SMS_ALL; Type of SMS
byte del_sms=1; 0: No deleting sms - 1: Deleting SMS
char number_incoming[20];
//**************************************************************************
SMSGSM sms;
int error;
boolean started=false;
bool newData = false;

char gps_year[8];
char gps_mon[3];
char gps_day[3];
char gps_hour[3];
char gps_min[3];
char gps_sec[3];


char gps_lon[20];
char gps_lat[20];

char gps_sms[100];


void setup()
{

software power sim900 up

  pinMode(pwrkey,OUTPUT);
  digitalWrite(pwrkey,HIGH);
  delay(600);
  digitalWrite(pwrkey,LOW);


  Serial.begin(115200);
  Serial2.begin(9600);
     if (gsm.begin(9600)) {
          Serial.println("\\nstatus=READY");
          gsm.forceON();To ensure that SIM908 is not only in charge mode
          started=true;
     } else Serial.println("\\nstatus=IDLE");

  if(started)
  {
delete all sms message
Serial.println("Deleting SMS");
char error = DeleteAllSMS();
if (error==1)Serial.println("All SMS deleted");
    else Serial.println("SMS not deleted");


  }
  else
  {Serial.println("SIM900 NOT EXISTED"); while(1);}
  delay(10000);

}

void loop()
{

if(started)
{
check_gps();
Check_SMS();
}





}



 void Check_SMS() //Check if there is an sms 'type_sms'
 {
     char pos_sms_rx;     Received SMS position
     pos_sms_rx=sms. IsSMSPresent(type_sms);
     if (pos_sms_rx!=0)
     {
       Read text/number/position of sms
       sms. GetSMS(pos_sms_rx,number_incoming,sms_rx,120);
       Serial.print("Received SMS from ");
       Serial.print(number_incoming);
       Serial.print("(sim position: ");
       Serial.print(word(pos_sms_rx));
       Serial.println(")");
       Serial.println(sms_rx);
       if (del_sms==1) //If 'del_sms' is 1, i delete sms
       {
         error=sms. DeleteSMS(pos_sms_rx);
         if (error==1)Serial.println("SMS deleted");
         else Serial.println("SMS not deleted");

       }
if((strstr(sms_rx,"gps")!=0)&&(strlen(sms_rx)==3))
{
Serial.println("\\nsending SMS");
if(newData)
{
if (sms. SendSMS(number_incoming, gps_sms))
Serial.println("\\nSMS sent OK");
else
Serial.println("\\nSMS sent error");
}
else
{
if (sms. SendSMS(number_incoming, "gps not ready"))
Serial.println("\\nSMS sent OK");
else
Serial.println("\\nSMS sent error");
}
}
Serial2.flush();
     }
newData=false;
     return;
 }


char check_gps()
{
  newData=false;
  unsigned long chars;
  unsigned short sentences, failed;

  For one second we parse GPS data and report some key values
  for (unsigned long start = millis(); millis() - start < 1000;)
  {
    while (Serial2.available())
    {
      char c = Serial2.read();
      Serial.write(c); uncomment this line if you want to see the GPS data flowing
      if (gps.encode(c)) // Did a new valid sentence come in?
        newData = true;
    }
  }

  if (newData)
  {
    float flat, flon;
    unsigned long age;
    int _year;
    byte _month, _day,_hour,_minute,_second,_hundredths;
    gps.f_get_position(&flat, &flon, &age);
gps.crack_datetime(&_year,&_month,&_day,&_hour,&_minute,&_second,&_hundredths,&age);
flat == TinyGPS::GPS_INVALID_F_ANGLE ? 0.0 : flat, 6;
flon == TinyGPS::GPS_INVALID_F_ANGLE ? 0.0 : flon, 6;
    dtostrf(flat, 11, 6, gps_lat);
    dtostrf(flon, 10, 6, gps_lon);
strcpy(gps_sms,"lat:");
strcat(gps_sms,gps_lat);
strcat(gps_sms,"\\n");
strcat(gps_sms,"lon:");
strcat(gps_sms,gps_lon);
strcat(gps_sms,"\\n");
strcat(gps_sms,"time:");
    itoa(_year,gps_year,10);
    strcat(gps_sms,gps_year);
    itoa(_month,gps_mon,10);
    if(strlen(gps_mon)==1)
      strcat(gps_sms,"0");
    strcat(gps_sms,gps_mon);
    itoa(_day,gps_day,10);
if(strlen(gps_day)==1)
      strcat(gps_sms,"0");
    strcat(gps_sms,gps_day);
    itoa(_hour,gps_hour,10);
if(strlen(gps_hour)==1)
      strcat(gps_sms,"0");
    strcat(gps_sms,gps_hour);
    itoa(_minute,gps_min,10);
if(strlen(gps_min)==1)
      strcat(gps_sms,"0");
    strcat(gps_sms,gps_min);
    itoa(_second,gps_sec,10);
if(strlen(gps_sec)==1)
      strcat(gps_sms,"0");
    strcat(gps_sms,gps_sec);
    Serial.println(gps_sms);


  }




}

char DeleteAllSMS()
{
     char ret_val = -1;


     if (CLS_FREE != gsm. GetCommLineStatus()) return (ret_val);
     gsm. SetCommLineStatus(CLS_ATCMD);
     ret_val = 0; still not present
     gsm. SimpleWriteln(F("AT+CMGDA=\\"DEL ALL\\""));
     switch (gsm. WaitResp(8000, 50, "OK")) {
     case RX_TMOUT_ERR:
          response was not received in specific time
          ret_val = -2;
          break;

     case RX_FINISHED_STR_RECV:
          OK was received => SMS deleted
          ret_val = 1;
          break;

     case RX_FINISHED_STR_NOT_RECV:
          other response: e.g. ERROR => SMS was not deleted
          ret_val = 0;
          break;
     }

     gsm. SetCommLineStatus(CLS_FREE);
     return (ret_val);
}

 Code download to complete.

Unplug the USB cable, use the 9V/2A external power supply, GPS antenna as far as possible to signal good height. Icomsat power on after a period of time, using a mobile phone SIM card to send a "GPS" message, later on, you will receive a return SMS. Which contains the longitude, latitude and time information, such as:

lat: 22.588160

lon: 113.944100

time: 20140730073230

latLAT, Lon longitude, time standard "GMT", With the time difference of 8 hours in Beijing.

If you receive a message "gps not ready"Text messages,GPS shieldHave not positioned well. Waiting to connect satellite signal and the time and weather, regional, environmental and other factors, long minutes, short for dozens of seconds.

Package included:
- 1 x Expansion Board (no antenna)
