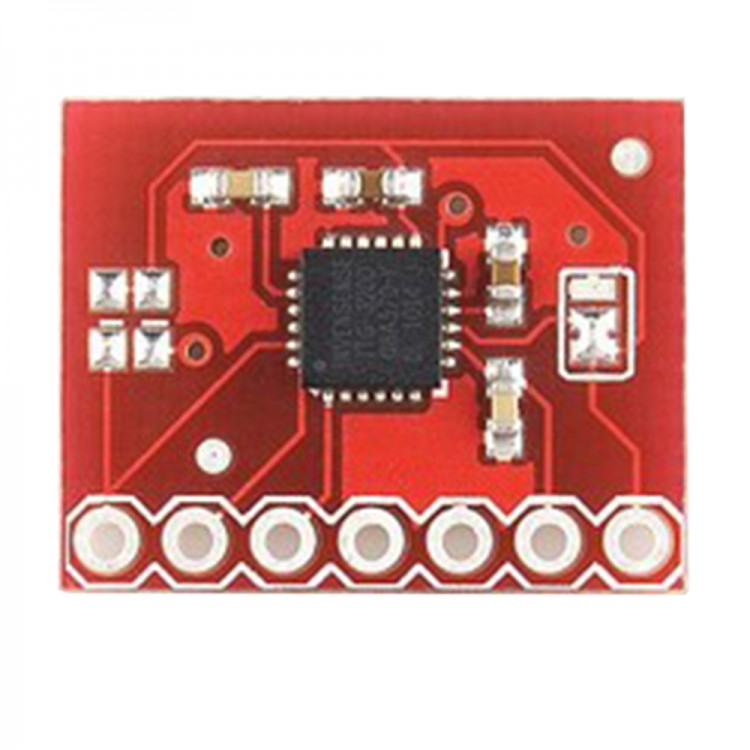

ITG3205 3-Axis Gyroscope Angular Velocity Sensor Module I2C Interface for DIY
Features:
- Support 3.3V/5V power supply, with blue LED indicator
- I2C interface, onboard logic level conversion circuit
- Operating temperature: -40~85 deg C
- Interface: 2.54mm space pin
ITG3205 parameters:
- Measure range: -+2000dps
- Sensitivity: 14.375LSB
- Sensitivity to temperature: -+10% (0-55deg C)
- Digital output X, Y, Z axis angular velocity sensor integrated in a single circuit, with 16 LSBs/sec sensitivity and + 2000 deg /sec (full scale range).
- Programmable digital low-pass filter
- Lower than the current of 6.5mA, the standby current is only 5uA
- Wide power supply range VDD 2.1V-3.6V
- Digital output temperature sensor
- I2C high speed serial interface (400KHZ)
- Optional external clock input 32.768KHZ or 19.2MHZ
Package included:
- 1 x Module
