IV-CC3200MOD:CC3200 Module CC3200-LAUNCHXL CC3200R1M2RGC

IV-CC3200MOD:CC3200 Module CC3200-LAUNCHXL CC3200R1M2RGC

Description

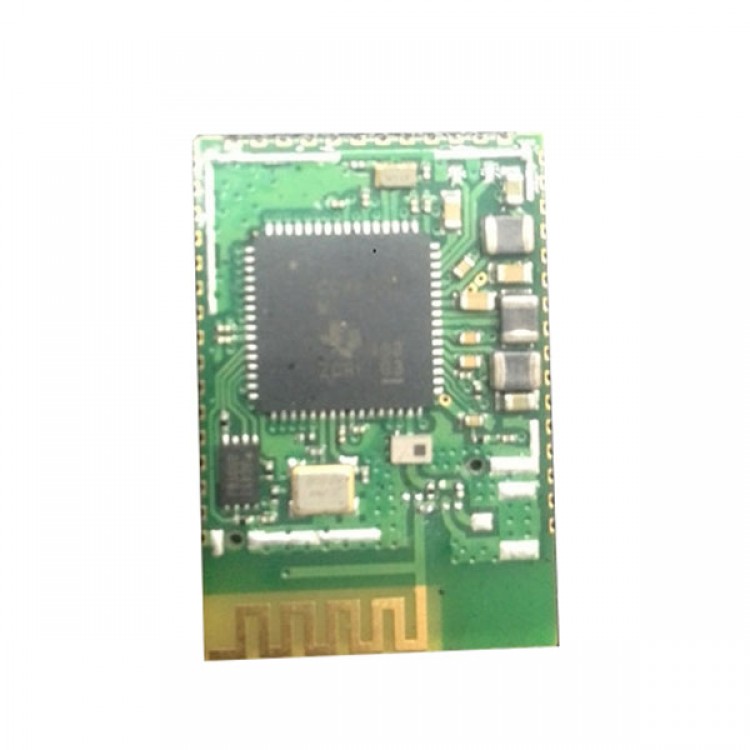

- TA3200R1A Module is a low-power module includes an 802.11 b/g/n radio,baseband, and MAC, which is designed for the application of wireless network communication with embedded technology.
- Using this module user can connect physical device to Wi-Fi Network, and then realize the control and management of the Internet of Things.
- The core of the module is CC3200 launched by TI. CC3200 device is a wireless MCU that integrates a high-performance ARM Cortex-M4 core running at 80MHz,
includes embedded TCP/IP and TLS/SSL stacks, HTTP Server,and multiple Internet protocols, allowing customers to develop an entire application with a single IC.

Features
- ARM Cortex -M4 Core at 80 MHz ARM Core
- includes a wide variety of peripherals
- Wi-Fi and Internet Protocols in ROM
- 802.11 b/g/n Radio, Baseband, Medium
- Access Control (MAC), Wi-Fi Driver, and Supplicant
- Station, AP, and Wi-Fi Direct Modes

TX Power:
- 18.0 dBm @ 1 DSSS
- 14.5 dBm @ 54 OFDM

RX Sensitivity:
-  -95.7 dBm @ 1 DSSS
-  -74.0 dBm @ 54 OFDM

Power-Management Subsystem:
- V BATWide-Voltage Mode: 2.1 to 3.6 V
- Preregulated 1.85-V Mode

Advanced Low-Power Modes:
- Hibernate: 4μA
- Low-Power Deep Sleep (LPDS):120μA
- RX Traffic:59 mA@ 54OFDM
- TX Traffic:229 mA @54 OFDM @18dBm
- Ambient Temperature Range: -25~+75℃
- Package: 18.22mm*26.65mm*2.8mm

Applications
- Cloud Connectivity
- Home Automation
- Home Appliances
- Access Control
- Security Systems
- Smart Energy
- Internet Gateway
- Industrial Control
- Smart Plug and Metering
- Wireless Audio
-  IP Network Sensor Nodes
