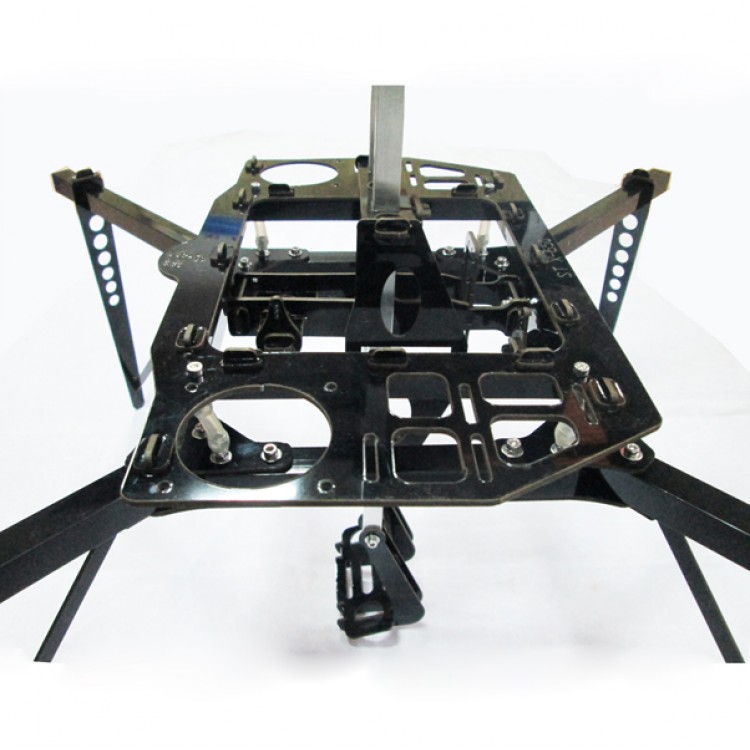

ST Mini X-650 Quadcopter Professional FPV Airframe w/ Camera Mount Gimble only 542g
- Lightweight miniature ball bearing, resistance smaller lighter
- Increase the device panel, more convenient to install electronic accessories
- Super lightweight tripod, using imported high elastic nylon plate pleated Rao
- 1. Using the onboard battery as a balance of the camera unit to strengthen the stabilizing effect.
- 2. Counterweight to achieve a compact, lightweight and rigid rotation mechanism.
- 3. Battery moved to a stable platform for the the UAV maneuverability bring good results.
- 4. Not hard-wired with the servo unit to prevent the camera bumps and vibrations.
- 5. Adjustable fixtures to ensure precise balance can be easily achieved within the three-dimensional space within the camera support frame.
- 6. The camera bracket precisely balanced to ensure that the servo unit is lightweight and fast.
- 7. Electronic gyroscope installed in the solid part of the camera bracket can stop rocking.
- 8. Latest silicone damping suppressing vibration in a wide frequency range.
- 9. The airborne electronic device is mounted on the platform with a damper. The increased weight of the platform to ensure more stable.
- Total length: 19.6 in/500mm
- Wheelbase: 25.5 in/650mm
- Net weight: 12 Ib/542g
- Camcorders weight: 0.9 Ib/400g
- Tilt Angle : 100°(pitch) /90°(roll)
Required configuration:(Not included)
- More than six-channel wireless remote control device 1 set
- Brushless external rotor motor A2814/KV900 4 or A5010/KV700 4
- The 30 amperes ESC 4
- 12x6 positive and negative paddle two pairs
- A 4 cells14.8V 5000 mAh lithium polymer battery and charger
- 9257 high-speed digital servo 2
- Two digital gyroscope
- Digital camera (400G camera below are common)
