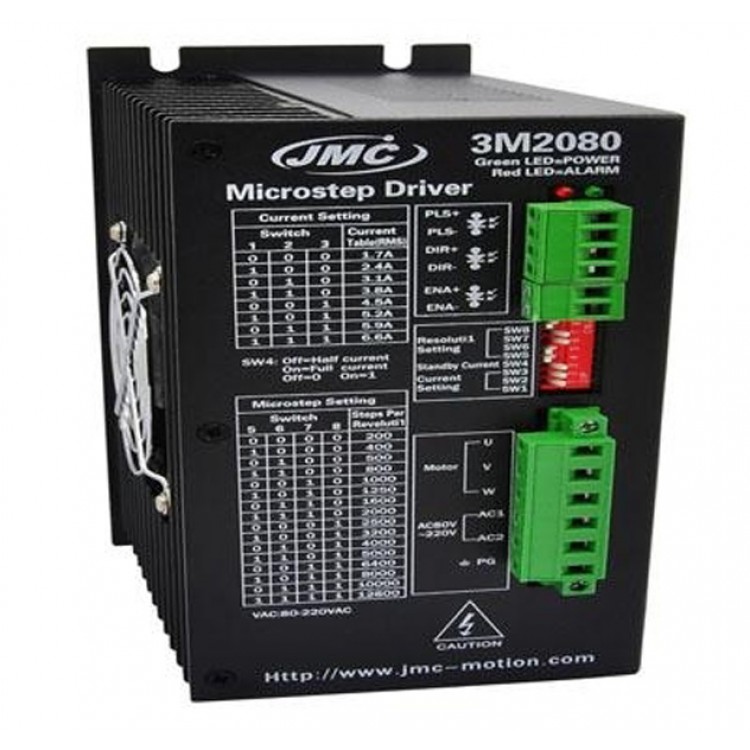

JMC 3M2080 3-phase Stepper Motor Drive Driver Replace 3ND1183 3ND2283

Introduction:
The 3M2080 is one of  the few Direct-On-Line step motor drive ,available in the industry, which can be simpiy power up from the AC power source without the need of a power supply ,This makes it cost effective and space efficient 3M2080 is a bi-polar three phase miacro-stepping drive applying pure-sinusoidal current control technique .It had the potential of delivering more torque with smoother stepping motion with a three phase motor .this resulted for applications that desire extreme low speed smooth motion. especially in muiti-axes linear and cicular intepolated application ,or application that is sensitive to vibration at extreme slow speed.

Key  Features:
1, 110-  220VDC supply Voltage
2, H-Bridge ,3Phase Bi-polar Micro-stepping Drive
3, Suitable for 2-phase ,4,6and8 leads step motors.with Nema size 34 to52
4, Output current selectable from 2.4-9.2A peak
5, Current reduction by 50% automatically,when motor standstill mode is enabled
6, Selectable  resulutions up to 12800 steps
7, Over Voltage ,Coil to Coil and Coil to Ground short dircuit protection

Specifications:

Parameters Min Typical Max Unit
Output Current(Peak) 1.7 - 6.6 Amps
Supply voltage 80 110 220 VDC
Logic Input Current - 15 - mA
Pulse input frequency - - 200 KHz
Low Level Tim 2.5  -  - µsec


Cooling Natural Cooling or Forced Convection:

Environment Space Avoid dust,oil forced frost and corrosive gases
Ambient Temperature -10℃—80℃
Humidity <80%RH
Vibration 5.9m/s² Max
Storage Temp -10℃—80℃
Weight Approx .1.75Kg


Current  Setting:

Current  Setting(A) SW1 SW2 SW3
1.7 OFF OFF OFF
2.4 ON OFF OFF
3.1 OFF ON OFF
3.8 ON ON OFF
4.5 OFF OFF ON
5.2 ON OFF ON
5.9 OFF ON ON
6.6 ON ON ON


Microstep Setting:

Step/Rew SW5 SW6 SW7 SW8
200 OFF OFF OFF OFF
400 ON OFF OFF OFF
500 OFF ON OFF OFF
800 ON ON OFF OFF
1000 OFF OFF ON OFF
1250 ON OFF ON OFF
1600 OFF ON ON OFF
2000 ON ON ON OFF
2500 OFF OFF OFF ON
3200 ON OFF OFF ON
4000 OFF ON OFF ON
5000 ON ON OFF ON
6400 OFF OFF ON ON
8000 ON OFF ON ON
10000 OFF ON ON ON
12800 ON ON ON ON

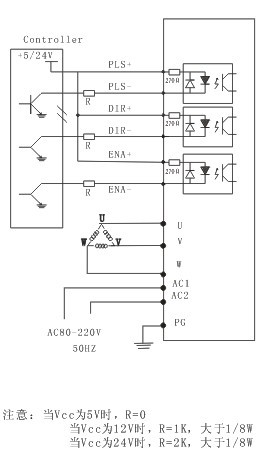

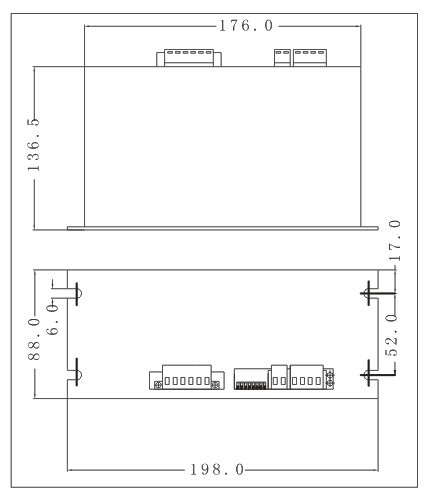

Wiring Dimensions in mm
