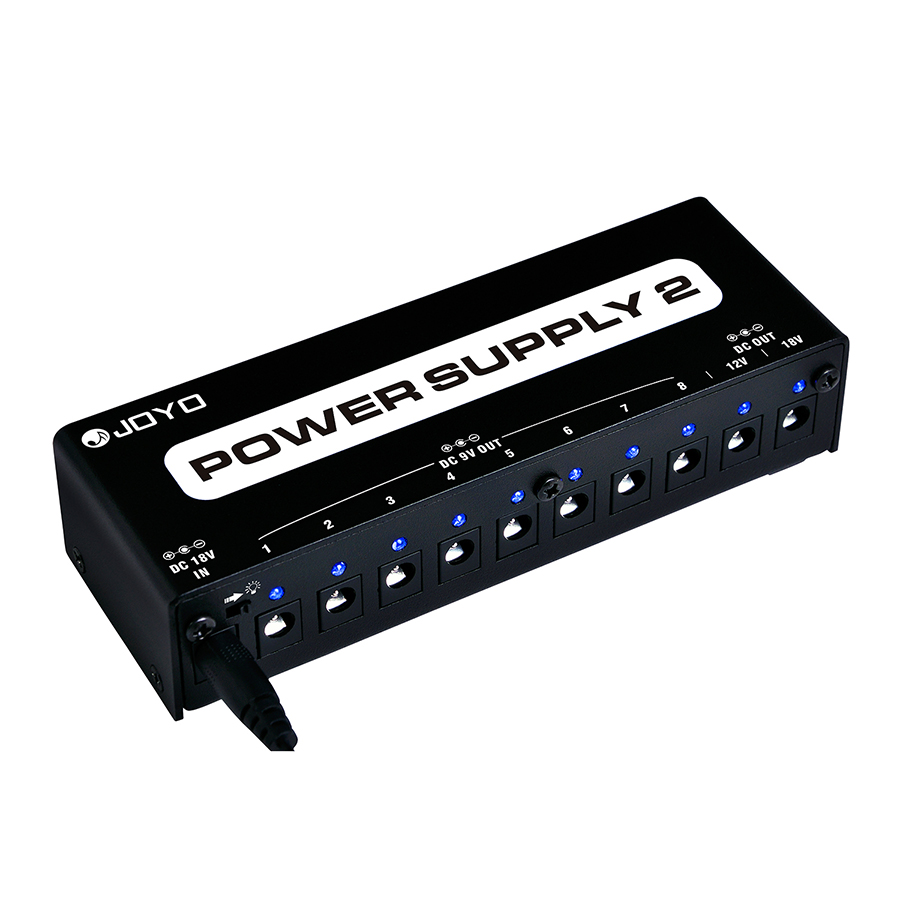

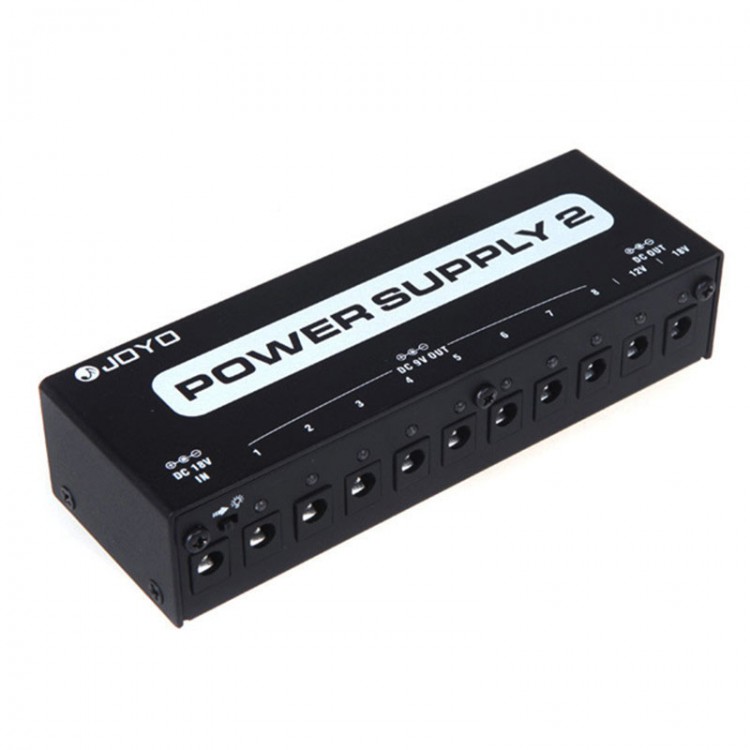

JOYO JP-02 Guitar Effects Pedal Power Supply 8 Pedal Chain Brick Isolated Output DC 9V 12V 18V
- You got to power your effects. 9V batteries are unreliable and expensive so if you're like most guitarists, this involves using a single adapter in a daisy chained fashion. Problem is this solution often results in a very loud effects chain due to improper electrical grounding. Better to use a dedicated power supply for a quieter more reliable pedal board.
- The Joyo JP-02 Power Supply 2 solves this problem by offering you a total of 10 outputs that are fully regulated and offer protection against short circuits. Outputs 1-7 are for standard pedals of DC 9v 100mA. In addition, there is one output each for 9V 500mA, 12V 100mA, 16V 100mA.
- The chasis is built from steel and tough as bullets. Each power supply glows blue so as to be seen in dark stage settings. Very helpful. Adapter and cables included as well.
- This is a sound investment for any pedalboard.
- 10 Total Outputs: 7 x 9V 100mA, 1 x 9v 500mA, 1 x 12V 100mA, 1x 16V 100mA

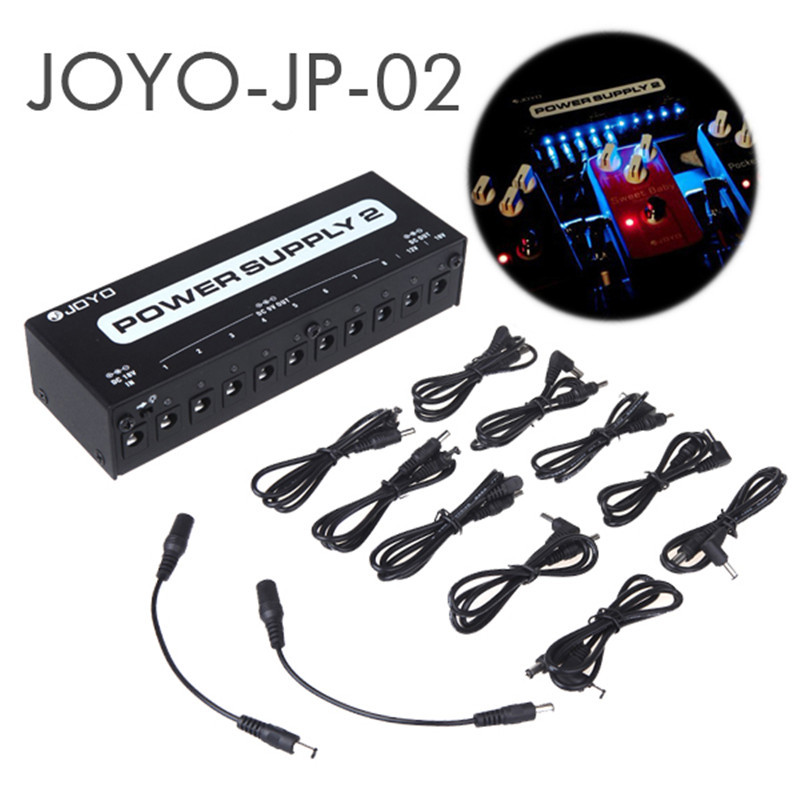

- Power adapter and 10 cables included
- Standard plug sizes and voltages for all pedals including Boss, MXR, Dunlop etc.(2.1 mm center negative)
- Rugged steel casing and new slim design.

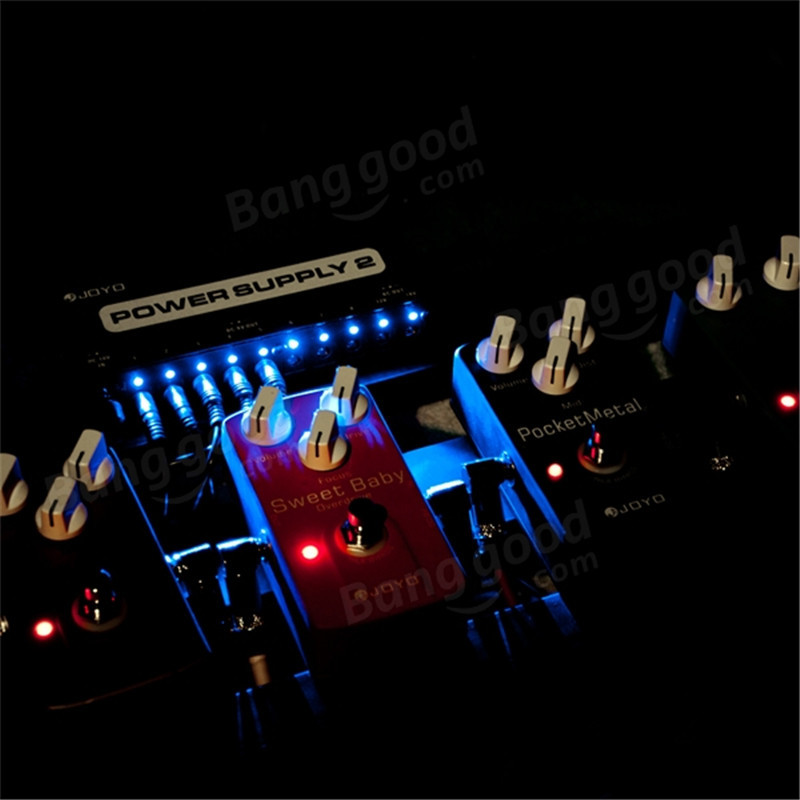

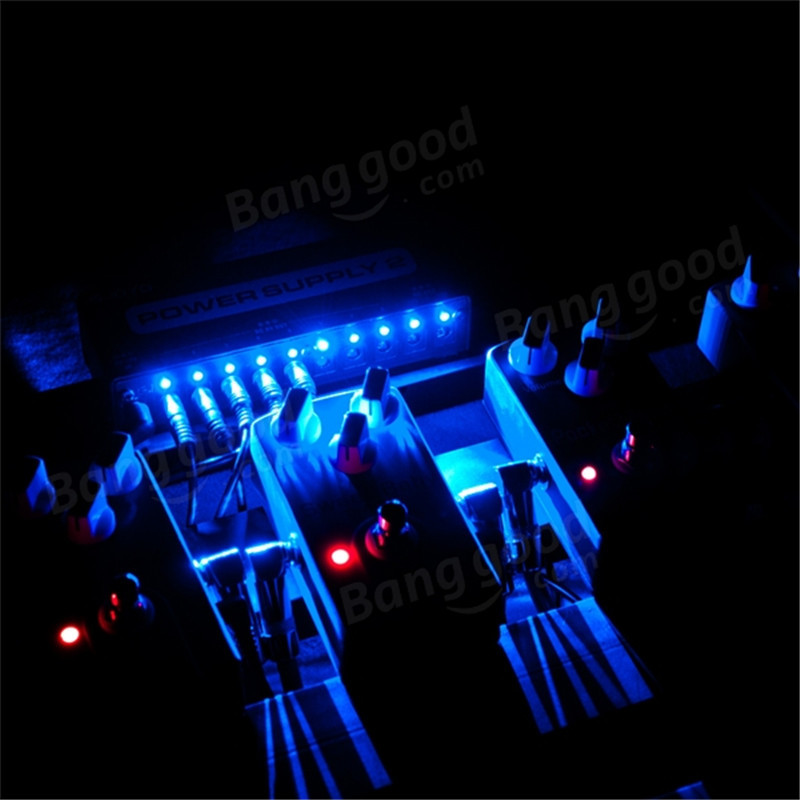

- Bright blue LED's for pedalboard lighting & short circuit warning indicators.
- Isolated Short Cricuit/Overcurrent Protected
- Bright Blue LED For Pedal Board Lighting & Short Cricuit Indicator - Switchable, on or off
- Function: Joyo JP-02 guitar pedal with 10 outputs
- OUTPUTS 1-7: All DC 9V power output with each output of 100mA. Suitable for most analog 9V effects on the market today. (negative center application)
- OUTPUT 8: DC 9V power output but with maximum output of 500mA, which is suitable for many digital effects as well when more power is required normally for these units.
- DC12 OUTPUT: The maximum output current is 100mA and used for effects requiring 12V power.
- DC18 OUTPUT: The maximum output current is 100mA for effects that carry this rating.
- Power Adapter: AC 110V ~ 240V (for International usage)
- Input Current: DC 18V, 1000mA
- Color: Black
- Approved: CE / FCC
- Dimension: 150 x 50x 30mm
- Net weight: 388g
Notes: All outputs are fully regulated and offer isolated short circuit protection,meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected.

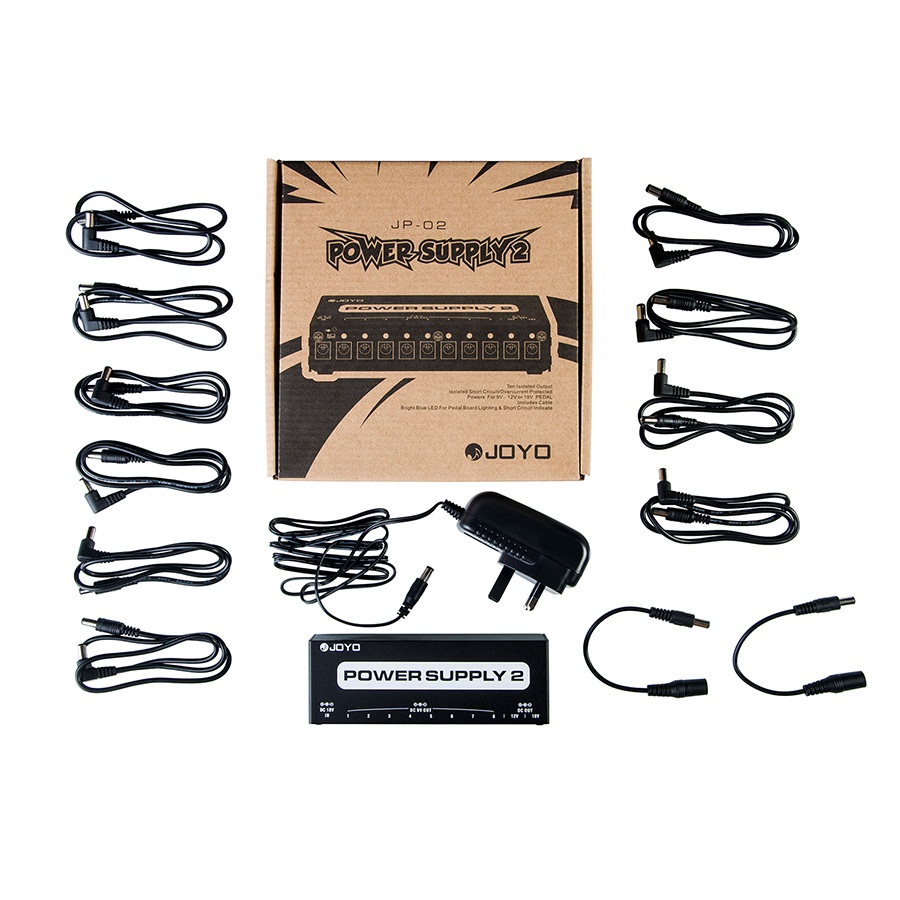

- 1 x JOYO JP-02 Guitar Effects Pedal Power Supply
- 1 x AC Adapter
- 10 x Pedal Power Cables
