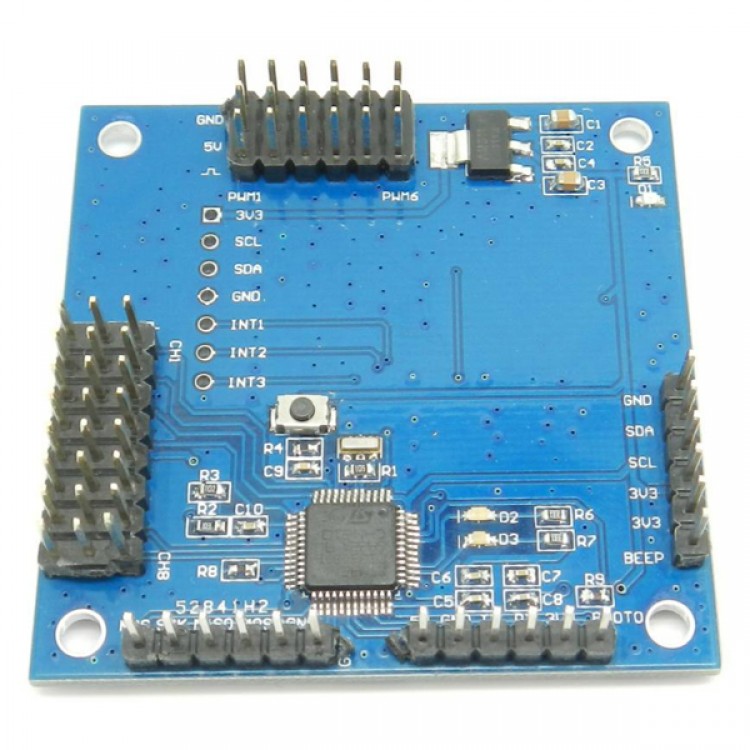

Kcopter STM32F103CBT6 Flight Control Board for Multicopter

Availability: Out Of Stock

  • Price:$23.77
  • Price in reward points: 238 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.29 $22.82 $22.11 $21.16 Contact US
Quantity:

Kcopter STM32F103CBT6 Flight Control Board for Multicopter
Specfications:
- size:50MM*50MM
- Main chip:STM32F103CBT6
- Power supply:5V
- PWM:6 Ch 8 Ch(TX,RX can be used to PWM)
- CPPM:8 standard PWC RC Input Channel
- with Power supply checker and voltage alarm circult
- can connect buzzer
- with
- with state LED
- UART port:can connect to GPS and so on
- can connect TF Card(micro SD):Note:TF card will be used to CH5 andCH6 Interface.
- Can not connect receiver when TF card is inserted in CH5 and CH6

CPPM Channel
CH1:AIL flap
CH2:ELE Up and down
CH3:THR accelerator
CH4:RUD Direaction
CH5、CH6、CH7、CH8:can connect other channel to fly

Support following Sensor:
- MPU-6050 sensor
- HMC5883Lcompass sensor
- BMP085 pressure meter
