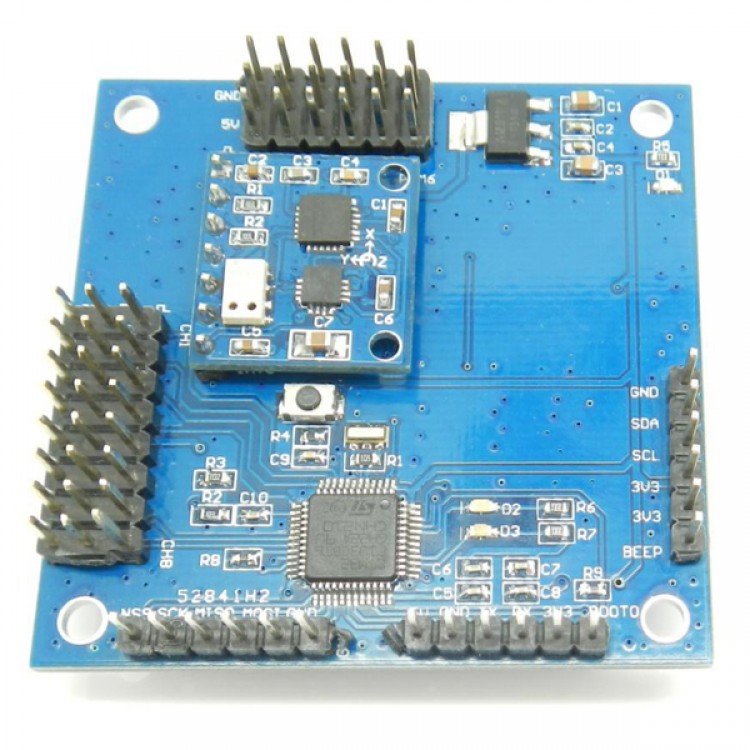

Kcopter STM32F103CBT6 Flight Control Board with MPU6050 HMC5883L Chip
Specfications:

- with MPU6050 HMC5883L chip
- size:50MM*50MM
- Main chip:STM32F103CBT6
- Power supply:5V
- PWM:6 Ch 8 Ch(TX,RX can be used to PWM)
- CPPM:8 standard PWC RC Input Channel
- with Power supply checker and voltage alarm circult
- can connect buzzer
- with
- with state LED
- UART port:can connect to GPS and so on
- can connect TF Card(micro SD):Note:TF card will be used to CH5 andCH6 Interface.
- Can not connect receiver when TF card is inserted in CH5 and CH6

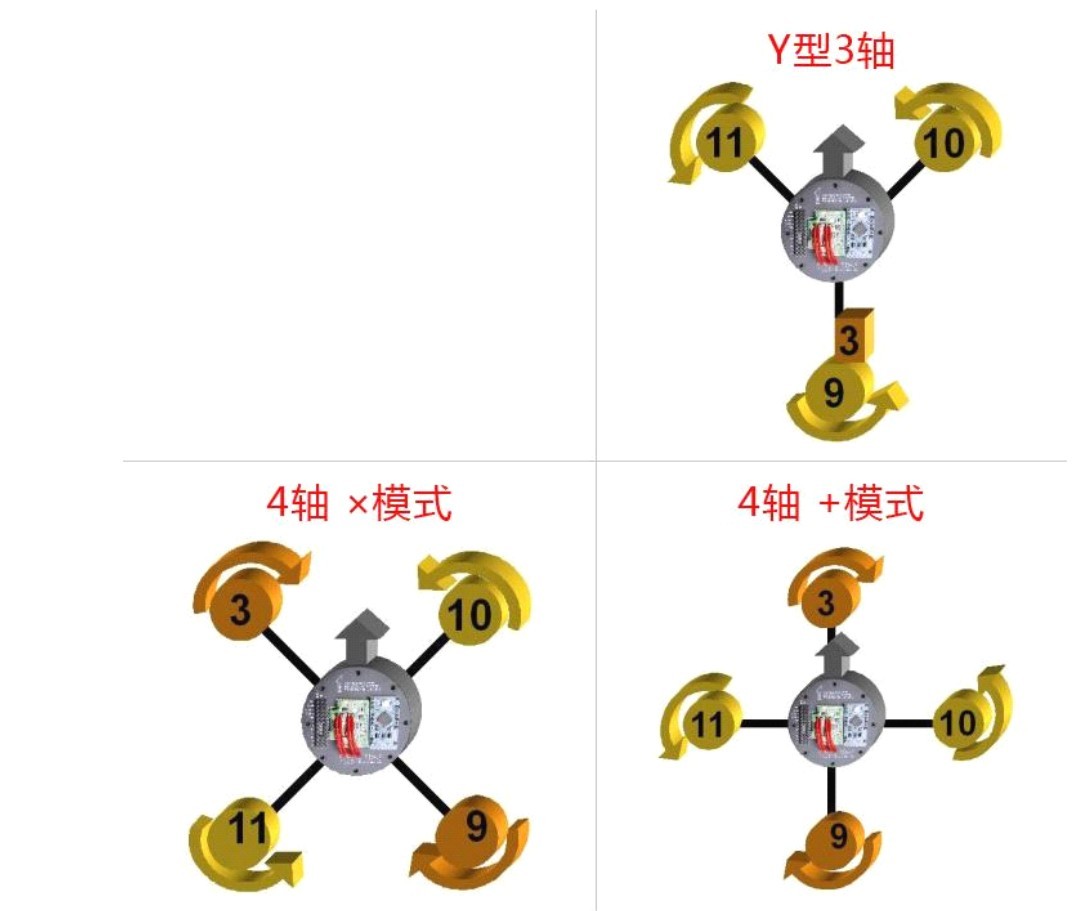

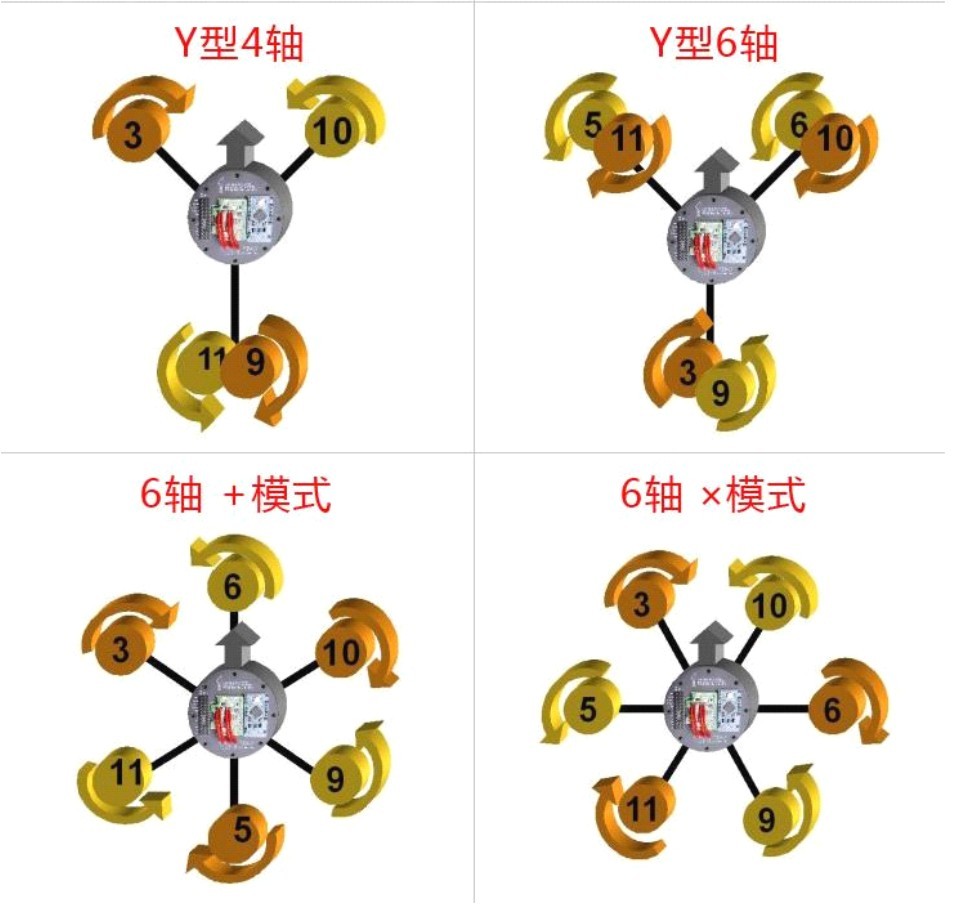

CPPM Channel
CH1:AIL flap
CH2:ELE Up and down
CH3:THR accelerator
CH4:RUD Direaction
CH5、CH6、CH7、CH8:can connect other channel to fly

Support following Sensor:
- MPU-6050 sensor
- HMC5883Lcompass sensor
- BMP085 pressure meter
