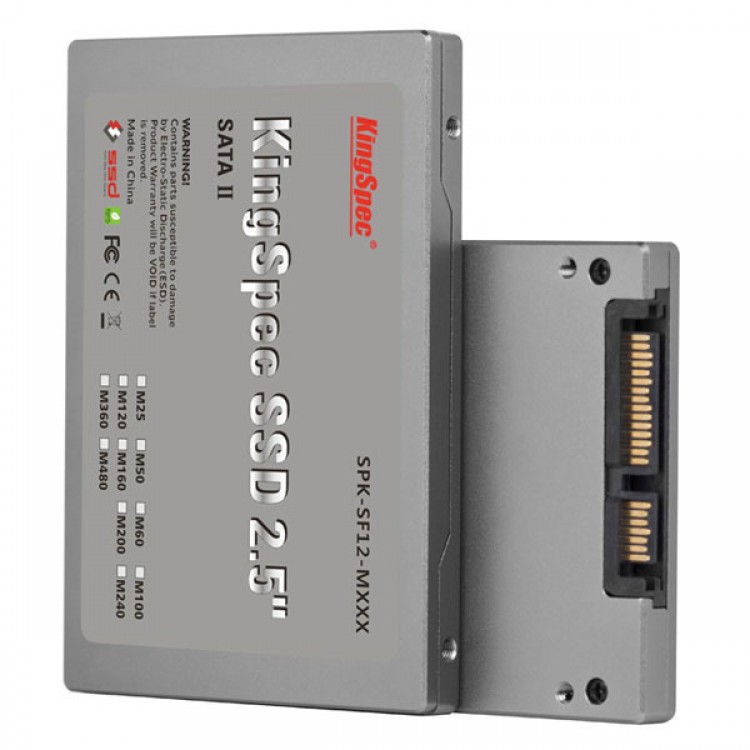

| Item | Model | SPK-S12-M60 | SPK-S12-M120 | SPK-S12-M480 |
| General | Form factor | 2.5" | 2.5" | 2.5" |
| Capacity(GB) | 60GB | 120GB | 480GB | |
| interface | SATAⅡ | SATAⅡ | SATAⅡ | |
| Performance | Average Access time | 0.1ms | 0.1ms | 0.1ms |
| Sustained Read | 283MB/S | 285MB/S | 285MB/S | |
| Sustained Write | 271MB/S | 273MB/S | 200MB/S | |
| 4KB Random Read IOPS | 30,000 | 30,000 | ||
| 4KB Random Write IOPS | 10,000 | 10,000 | ||
| Storage Media | NAND Flash | MLC- NAND Flash | MLC- NAND Flash | MLC- NAND Flash |
| Power Consumption | input Voltage | 5V+/_5% | 5V+/_5% | 5V+/_5% |
| Idle | 0.5W | 0.5W | ||
| Active | 2.0W | 2.0W | ||
|
Reliability & Endurance |
Write endurance | 16years@100GBytes write and erase per day at 60GB | ||
| Read endurance | unlimited | |||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | |||
| Data Retention | 10years at 25℃ | |||
| MTBF | 2,000,000hours | |||
| ECC | 24bytes ECC per 512-byte | |||
| Bad block Management | Auto bad block management in system | |||
| Environment | Operating Temperature | 0～70℃ | ||
| Non-operating Temperature | -40～85℃ | |||
| Shock | 2,000G(@0.3ms half sine wave) | |||
| Vibration | 20G(40-2000Hz) | |||
| Humidity | 5-95% | |||
|
Physical Dimensions & Weight |
Height(mm) | 9.5±0.25 | 9.5±0.25 | 9.5±0.25 |
| Width(mm) | 69.8±0.25 | 69.8±0.25 | 69.8±0.25 | |
| Length(mm) | 100.2±0.25 | 100.2±0.25 | 100.2±0.25 | |
| Weight(g) | 80 | 80 | 80 | |
