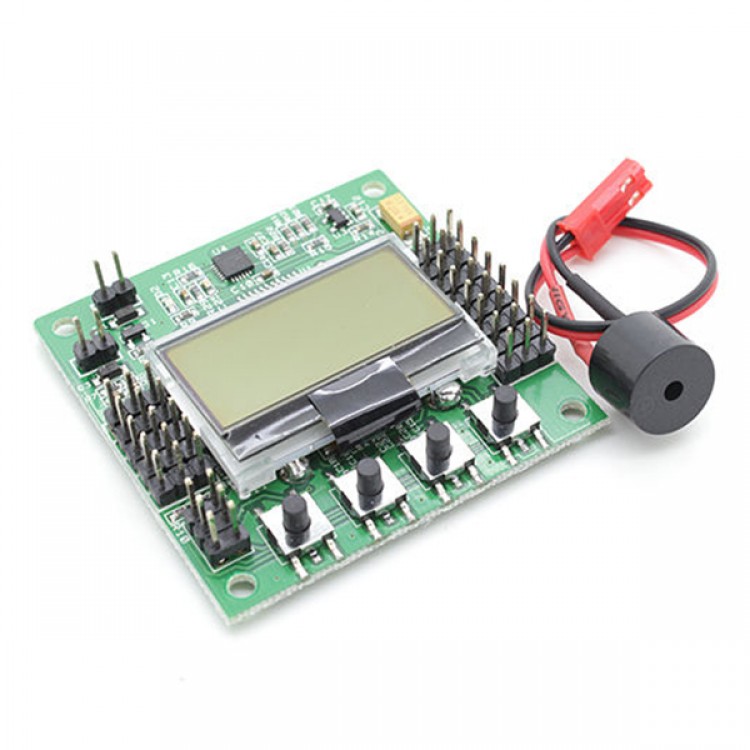

KK2.15 Multi-rotor LCD Flight Control Board Atmega644 PA Main Chip for Multicopter No Shell

The original KK gyro system has been updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK2.1 is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory. An additional header has been added for voltage detection, so no need for on-board soldering. A handy piezo buzzer is also included with the board for audio warning when activating and deactivating the board.

Specs
- Size: 50.5mm x 50.5mm x 12mm
- Weight: 21 gram (Inc Piezo buzzer)
- IC: Atmega644 PA
- Gyro/Acc: 6050MPU InvenSense Inc.
- Auto-level: Yes
- Input Voltage: 4.8-6.0V
- AVR interface: standard 6 pin.
- Signal from Receiver: 1520us (5 channels)
- Signal to ESC: 1520us

Firmware Version: 1.5:
Pre-installed firmware.
Dualcopter
Tricopter
Y6
Quadcopter +
Quadcopter X
Hexcopter +
Hexcopter X
Octocopter +
Octocopter X
X8 +
X8 X
H8
H6
V8
V6
Aero 1S Aileron
Aero 2S Aileron
Flying Wing
Singlecopter 2M 2S
Singlecopter 1M 4S
