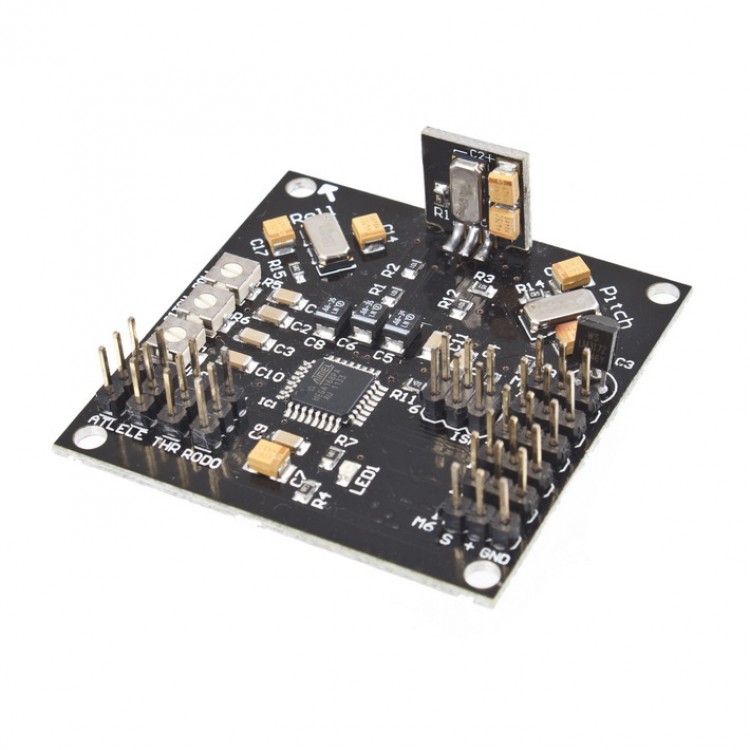

KKmulticopter V5.5 Controller BlackBoard V2.1 Program

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.71
  • Price in reward points: 337 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.04 $32.36 $31.35 $30.00 Contact US
Quantity:

Features:

- Simple structure, KKmulticopter is easy to Maintain and Debug Control
- With 3 pcs gyros, relying on potentiometer adjust gyro sensitivity.
- Full servo signal output, support normal ESC / analog servo
- Support for single-axis / UFO, Y3 3-axis, Y4-type 3-axis, 4 axis, 6 axis, V22  flight mode
- Supports 4-axis "+" and "X" flight mode, support for six-axis "HEXA6" and "Y6"  flight mode.
- Don't need MK 4-axis PPM decoder board, the receiver can be connected directly  to the Transmitter

Package included:
- 1 x 4-axis Circuit Board

The KKmulticopter is a KK flight controller board for remote control multicopters with 2,3,4 and 6 rotors. We get KKmulticopter to stablise the aircraft during flight. KK flight controller takes the signal from the three gyros on the board (roll, pitch and yaw) and feeds the information into the Integrated Circuit (Atmega IC). KK flight controller then processes the information according the the KK software and sends out a control signal to the Electronic Speed Controllers (ESCs) which are plugged onto the board and also connected to the motors. Depending upon the signal from the IC the ESCs will either speed up or slow down the motors (and tilt the rear rotor with a servo in a Tricopter) in order to establish level flight.

The board of KKmulticopter also takes a control signal from the Remote Control Receiver (RX) and feeds this into the IC via the aileron, elevator, throttle and rudder pins on the board. After processing this information, the IC will then send out a signal to the motors (Via the M1 to M6 pins on the board) to speed up or slow down to achieve controlled flight (up, down, backwards, forwards, left, right, yaw) on the command from the RC Pilot sent via his Transmitter (TX). In the case of a Tricopter, one of the pin connectors (M4) will control a servo to achieve yaw authority.

The v.5.5 has an Atmega168 chip on board and an ISP header which gives users the option to tweak and upload their own controller code.

also we supply config, you can get KK flight controller at the link below,

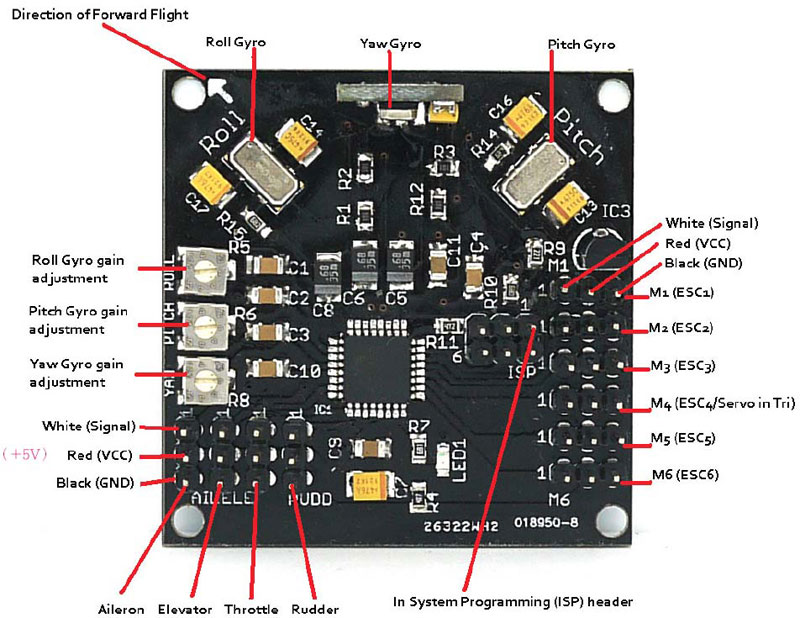

Connection Digram
KKMultiController
