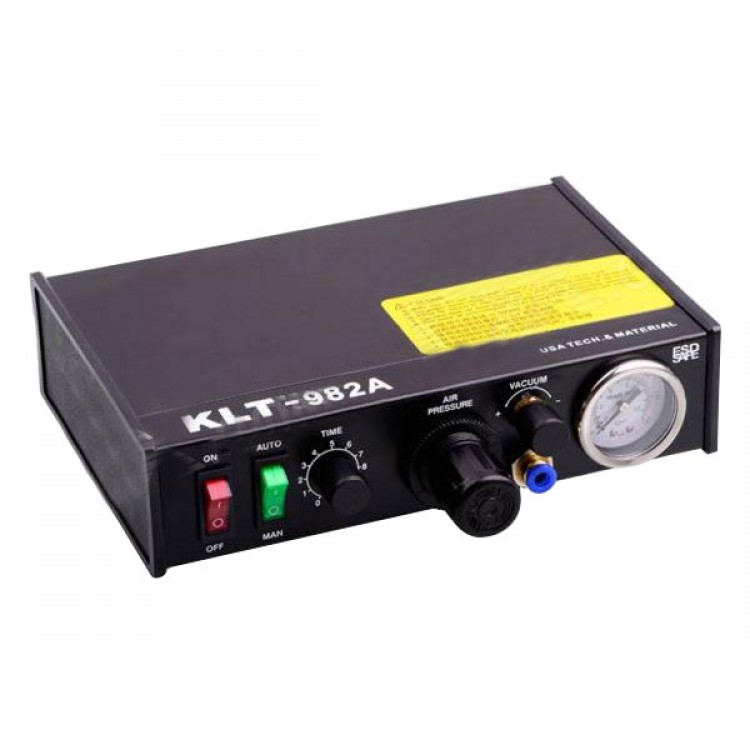

KLT-982A Solder Paste Glue Dropper Liquid Auto Dispenser Controller
Description:
- Automatic Liquid Dispenser with time control,to push the liquid pneumatically,controlled by timer,to be sure the same dispensing drops and dispensing cycle time,regulated the air pressure with suitable tip at your equipments of the different liquids as glues,greases,solder pastes.Applied for 10 types of steel tips and 5 types of plastic tips for various customers' needs...
Features
- Manual or timer operation modes
- Foot pedal controlled
- Suck-back feature ensure no dripping
- Designed for wide range of application
- Complete with an accessory dispensing kit
- Timer mode dispensing time 0.01-1,0.1-10,0.2-20,0.3-30 seconds
- Manual mode, materials could be dispensed continuously until operator release the foot pedal
Technical Data
- Timer: Programmable: 0.01-1S,0.1-10S,0.2-20S,0.3-30S
- Cycle Initiation: Maintained or Momentary
- Repeat Tolerance: +-0.5%
- Size: 235x225x63 m3
- Weight: 2.20kg
- Voltage Input: 220-240V 50Hz AC
- Internal Voltage: 24V DC
- Minimum Deposit: 0.01ml
- Air input: 2.5 ~ 7 bar (35~100 psi)
- Air output: 0.1 ~ 5.5 bar (1-78 psi)
3 x 30ml syringe and 1 x 30ml syringe head + tube
Package list:
- 1 x Dispenser controller
- 1 x Foot switch (cable length: about 186cm)
- 1 x Dispenser Stand
- 3 x 30cc Liquid Barrels
- 6 x Steel Needle/Tips
- 6 x Plastic Tips
- 1 x Air Tube to Barrel
- 1 x Air Tube to Air Supply
- 1 x Hand Switch
- 1 x Power Cable (cable length: about 149cm)
- 1 x User Manual (English and Chinese)
