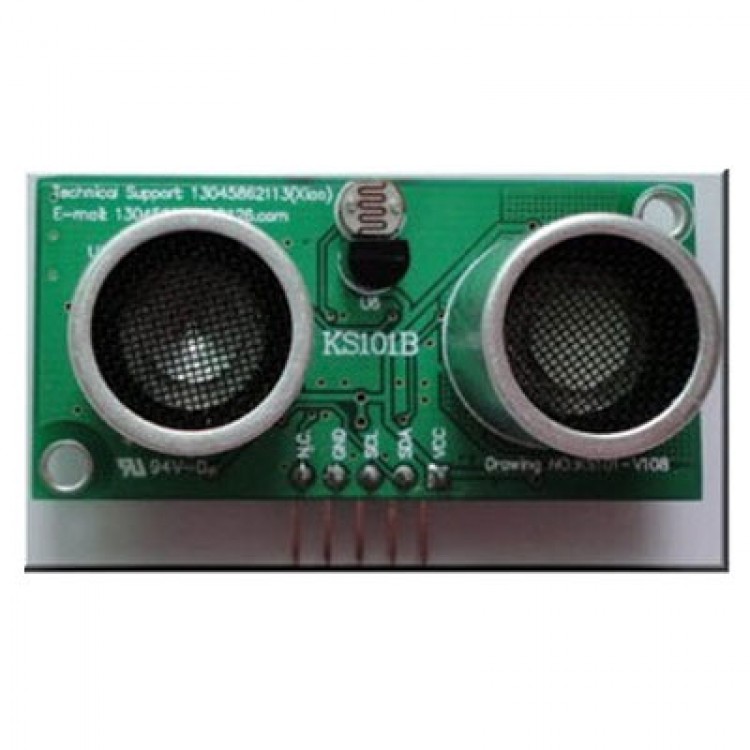

KS101B High-precision Ultrasonic Ranging Module Temperature Compensation  I2C Interface Robot Vision Module
Features :
- include real-time temperature compensation of the distance detection, high detection accuracy
- The patented detection mode, detection range 1cm ~ 650cm
 -communicate using the I2C interface with the host, the host automatically respond to the I2C control instructions
- A total of 20 to modify the I2C address range 0xd0 ~ 0xfe (0xf0, 0xf2, 0xf4, 0xf6 excluded)
- Support for 0x00 broadcast address
- 83ms fast, high-precision temperature probe, always accurate perception of the environment temperature
- 5s did not receive an I2C control commands automatically enter the uA level sleep, and ready to be awakened master I2C control commands
- Short detection range from the 10cm, 20cm, ... ..., to 470cm, to meet the fast short-range detection
- 1ms fast light detection, real-time detection of real-time intensity
- the use of industrial grade configuration, operating temperature (-30  ~ +85 )
- Wide operating voltage (3.0V ~ 5.5V)
- Operating voltage: 3.0V ~ 5.5V DC power supply
- The instant when the maximum current work: 10.6mA  5.0V, typical
- Current :1.6-2 .7 mA 5.0V, typical
- Maximum power consumption sleep: 500uA 5.0V, typical
- Power: Using nanoWatt Technology power, 5s did not receive an I2C control commands automatically enter the uA level sleep, and ready to be awakened master I2C control commands.
- Can be reliably connected while 20 KS101B, in which a detection module other modules work automatically enter a low power sleep, tested, even if only about 3.0V voltage (about two cell battery voltage) to supply power for 20 KS101B can still be detected.
Package details:
- Product size; 50mm × 24mm × 17mm
- Product weight: 11g
- Packing: 1PCS / box, box-type for the 1.5 ~ 2mm thick corrugated cardboard box material, which can effectively prevent pressure vibration.
