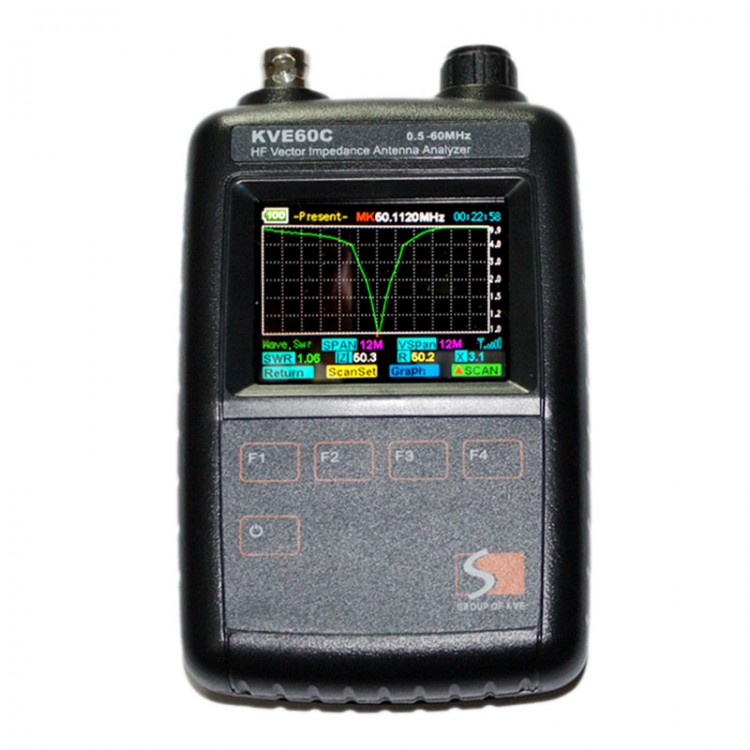

• KVE-60C SWR HF Vector Antenna Impedance Graphical Analyzer Amateur Ham Radio DIY

KVE-60C SWR HF Vector Antenna Impedance Graphical Analyzer Amateur Ham Radio DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$324.62
  • Price in reward points: 3246 Reward Points: 32
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $318.13 $311.64 $301.90 $288.91 Contact US
Quantity:

KVE-60C SWR HF Vector Antenna Impedance Graphical Analyzer Amateur Ham Radio DIY

Brief introduction:

- 0.5-60 MHz Color Graphic VNA Analyzer
- Pocket-Size, Incredible Performance! Truly accurate SWR, R, X and Z!
- This pocket-sized wonder breaks the mold for analyzer design with user-friendly  convenience, top notch accuracy, and a vivid TFT multi-color display. Don`t let  the size fool you, it is packed with all the VNAfeatures and performance you  need!
- For example, get data for SWR, resistance (R), reactance (X), and impedance  magnitude (Z) delivered on a color-coded high-resolution bar-graph display or  sharply defined swept-frequency plots.
- Get continuous DDS frequency coverage with 100-Hz resolution and a full  selection of tuning steps and sweeps.
- There's a movable marker that calls up alpha-numeric data for any point on any  plot -- and a memory to collect current data when you turn the analyzer off.
- Get other useful features too, like a built in help menu and a field-strength  indicator warns when powerful interference is present.
- Best of all, juggling batteries is a thing of the past -- a long-running  lithium-polymer power source is built right in. Recharge via any USB port.

Specification :
- Display: Sharp Transflective TFT, 1600  million colors
- VSWR 1.00 - 99.99, million level below market instruments
- Frequency range :0.5-60MHz
- Frequency stability: <3PPM
- Frequency Step: Min 100Hz / step
- Output Level: 1dbm
- Sweep width: 150K/300K/600K/1.2M/2.4M/6M/12M/24M/48M(Hz)
- Scan Step: 500Hz/1KHz/2KHz/4KHz/8KHz/20KHz/40KHz/80KHz/160KHz
- Impedance resistor reactance range :0.1-999.9 ohms
- Power Supply: 3.7V 1800mAH lithium polymer (standard built-in)
- Charging power supply: Micro USB standard connector(ensure output voltage from  DC 5.0V­ to 5.5V, current output capacity>500mA)
- Charge indicator: Hidden
