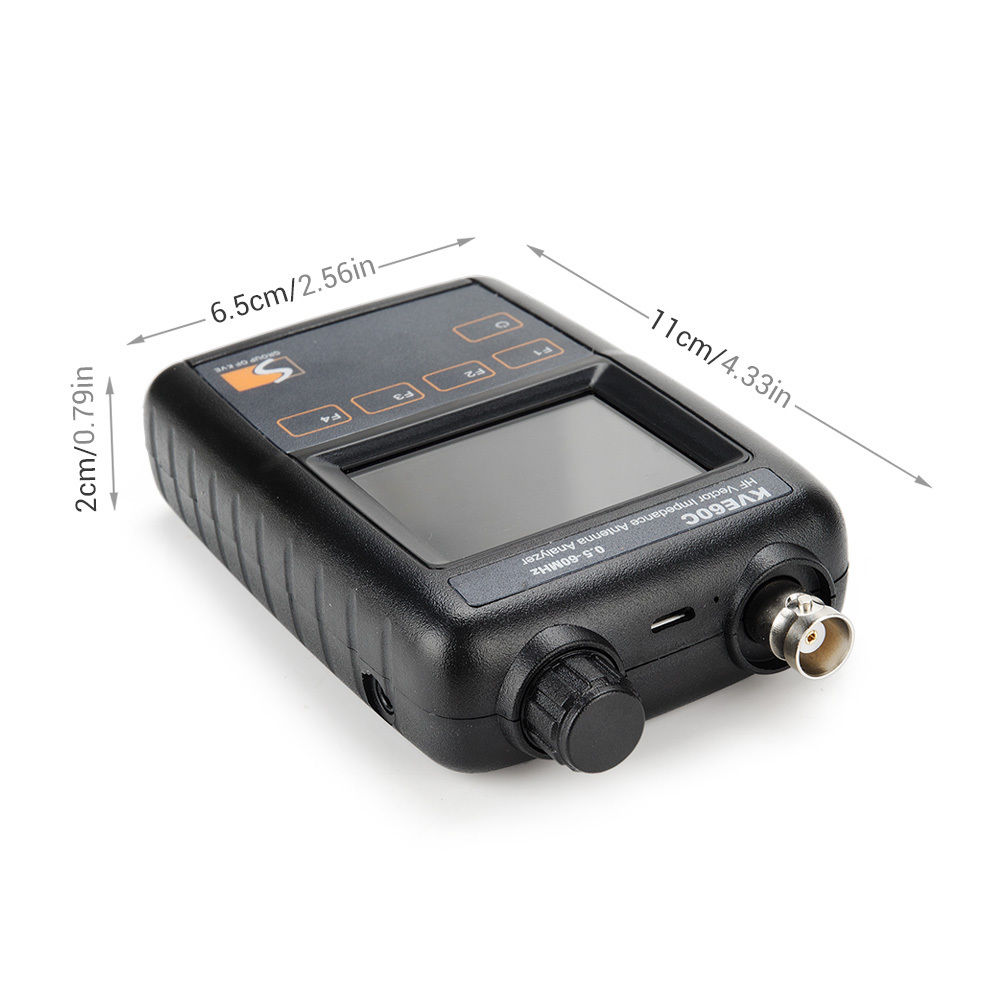

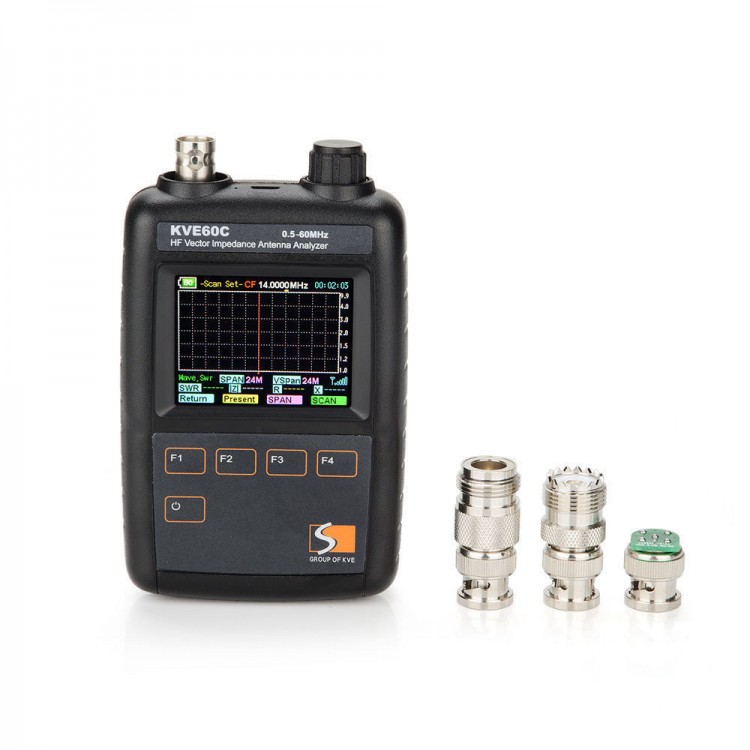

KVE60C HF Vector Color Graphic Impedance Antenna Analyzer 0.5MHz to 60MHz Meter
English manual: Click here
Features:
- Measuring Antenna SWR (Standing Wave Ratio) with graphical display in a selected frequency range.
- Measuring Antenna Impedance ( Z = R + X )
- Measuring Antenna Resistance R
- Measuring Antenna Reactance X, All the above with graphical display in a selected frequency range.
- Quick search for antenna resonance frequency
- Very suitable for antenna measurement and adjustment.
- Portable and small sized
- Easy and intuitive operation
- Robust measurement, accurate, and resistant to environmental interference.
- Long sustaining Li-ion Rechargeable Battery for a long operation time.
- Very suitable for outdoor antenna measurement.
- Low cost and wide frequency coverage.
- Clear LCD display, even under daylight
- Additional functions: used as a HF signal generator, or a Field strength meter.
Specifications:
- Display and protectiveglass:Sharp Transflective TFT,1600millioncolor,QVGA.Mitsubishi hardened scratch resistant acrylic protective lenses.
- VSWR1.00-99.99
- Frequency range:0.5-60MHz
- Frequency stability:<3PPM
- Frequency Step:Min100Hz/step
- Output Level:1dbm(basedon14MHzTest)
- Scan width:150K/300K/600K/1.2M/2.4M/6M/12M/24M/48M(Hz)
- Scan Step:500Hz/1KHz/2KHz/4KHz/8KHz/20KHz/40KHz/80KHz/160KHz
- Impedance resistor reactance range:0.1-999.9ohms
- Power Supply:3.7V 1800mAH lithium polymer(standardbuilt-in)
- Charging power supply:Micro USB standard connector(must ensure that the out put voltage is DC5.0-5.5V,and the current output capacity>500mA)
Package Contents:
- 1 x Antenna Analyzer
