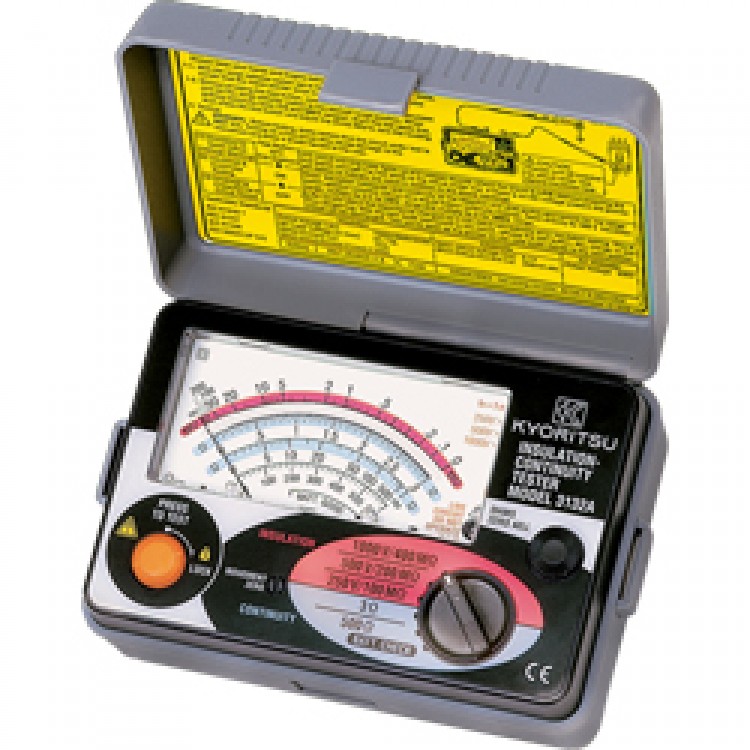

Kyoritsu 3132A Insulation Tester Fuse Protected
  • Kyoritsu 3132A Insulation Tester Fuse Protected

  • SKU:24194
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 30
  • Price:$300.16
  • Price in reward points: 3002
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $294.16 $288.15 $279.15 $267.14 Contact US

Feature:
- Dust and drip proof construction. (designed to IEC 60529 IP54)
- Designed to meet IEC 61010-1 and IEC 61557 safety standard.
- 1mA rated test current at the minimum resistance.
- 200mA measuring current on continuity testing.
- Automatic discharge of circuit capacitance.(Any charge stored in the circuit under test will be automatically discharged after testing.)
- Live circuit warning buzzer and neon lamp.
- Small and lightweight. Shock resistant new case material.
- AC voltmeter with linear, easy-to-read scale.
- Operates on AA, R6P×6 dry batteries.

Specification:

Insulation Resistance
Test Voltage
250V/500V/1000V
Measuring Ranges
(Mid-scale Value)
100MΩ/200MΩ/400MΩ
(1MΩ) (2MΩ) (4MΩ)
Output Voltage
on open circuit
Rated test voltage+20%, -0%
Nominal Current
1mA DC min.
Output Short
Circuit Current
1~2mA DC
Accuracy
0.1~10MΩ/0.2~20MΩ/0.4~40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value
Continuity
Measuring Ranges
(Mid-scale Value)
3Ω/500Ω
(1.5Ω) / (20Ω)
Output Voltage
on open circuit
4.1V DC approx.
Measuring Current
210mA DC min.
Accuracy
|±1.5% of scale length
AC Voltage
AC Voltage
0~600V AC
Accuracy
|±5% of scale length
General
Safety Standard
IEC 61010-1 CAT.III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4
IP Rating
IEC 60529-IP54
EMC Standard
IEC 61326-1
Withstand Voltage
3700V AC for 1 minute
Power Source
R6P (AA) (1.5V) × 6
Dimensions
106(L) × 160(W) × 72(D)mm
Weight
560g approx.
Accessories
(Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6P (AA) × 6
Shoulder Strap
Instruction Manual
