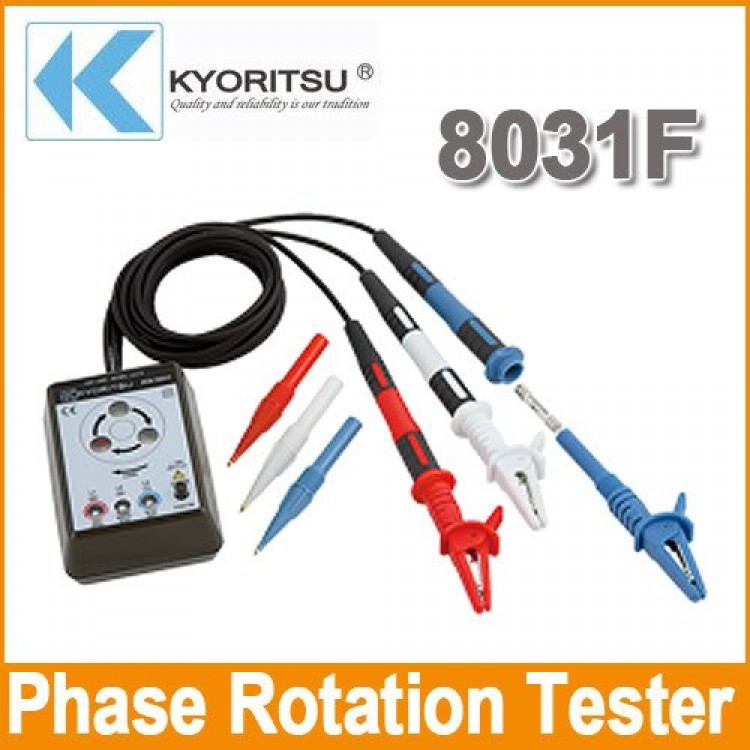

Kyoritsu 8031F 110~600V 50Hz/60Hz AC Phase Rotation Tester
The Type of 8031F Can check a wide range of 3-phase power source from 110V to 600V. Sealed against dust, the unit ensures trouble-free performance. No exposed metal parts, Safety features are incorporated including the instant push button switch operation.
Main Features:
- KEW8031F is designed to check phase sequence.
- Lamps provided on the unit will also tell you if a phase is open.
- Can check a wide range of 3-phase power source from 110V to 600V.
- Sealed against dust, the unit ensures trouble-free performance.
- Small, Lightweight and portable.
- Designed for maximum ease of operation and ruggedness.
- No exposed metal parts, Safety features are incorporated including the instant push button switch operation.
Specifications:
|
Operational Voltage |
110~600V AC |
|
Fuse |
0.5A/600V (F) |
|
Time limit for continuous |
>500V : within 5 minutes |
|
Frequency Response |
50Hz/60Hz |
|
Applicable Standards |
IEC 61010-1 CAT.III 600V Pollution Degree 2 |
|
Withstand Voltage |
5550V AC for 1 minute |
|
Dimensions |
106(L) × 75(W) × 40(D)mm |
|
Weight |
350g approx. |
|
Cord |
1.5m (R:red S:white T:blue) |
Package Including:
- 1 x Non-Contact Safety Phase Indicator 8031F
- 1 x Original Package
