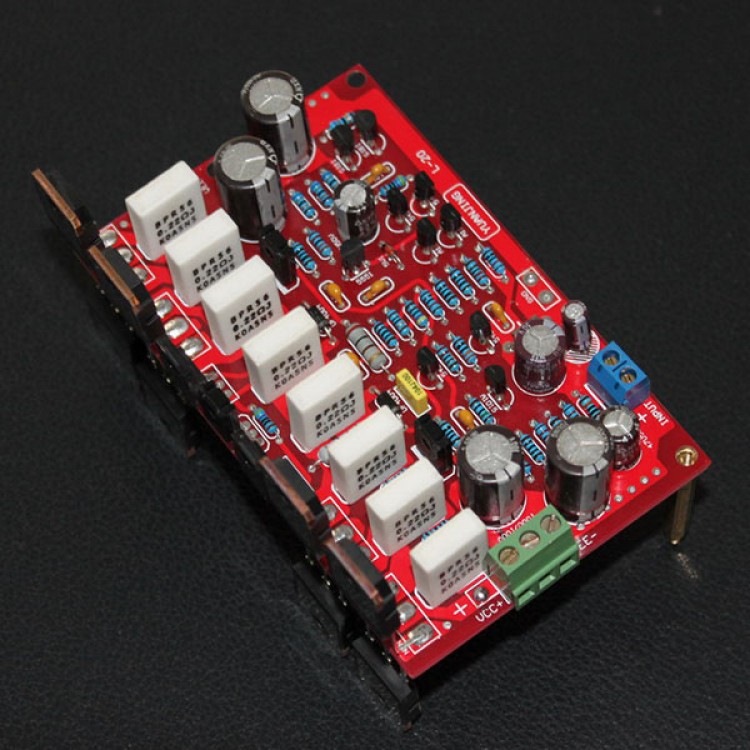

L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board
  • L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board
  • L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board
  • L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board
  • L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board
  • L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board

  • SKU:26632
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$23.39
  • Price in reward points: 234
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.92 $22.45 $21.75 $20.82 Contact US

L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board

Description:
- Circuit board using 1.6MM thick PCB,
- Each mono channel including four pairs of high-power tube.
- Support 200W 8 Ohm output power.
- L-20 has excellent control, low distortion, wide range of voltage support.
- High-power, high-current output load.
- Bassoon four pairs per channel output, the maximum load current of 40A.
- Wide range of voltage support, free to install two pairs per channel, four high-power tube.

Performance parameters:
- Power 200W (8R) 350W (4R)
- Voltage: DC + - 65V
- AC voltage before the rectifier:Recommended dual AC 36V;if you don't know what it is,pls using DC65V
- THD = 0.009% 1K HZ 50W 8R
- SR = 35V / US
- Noise 92DBU
- EIN = 114 DB
- Frequency Response 20-20KHZ + - 0.5 DB
- 34 times the voltage gain
- PCB size: 116MM * 72 MM
- Using KEC B817 D1047 and Toshiba A1930 C5171

Package list:
- 1 x L20 Amplifier Board 350W L-20 DSPPA L-20 Pure Post-Amplifier Mono Amplifier Board
