L298 L298N Motor Drive Board Motor Drive Module for Controlling DC Motor Speed and Direction and Stepping Motor

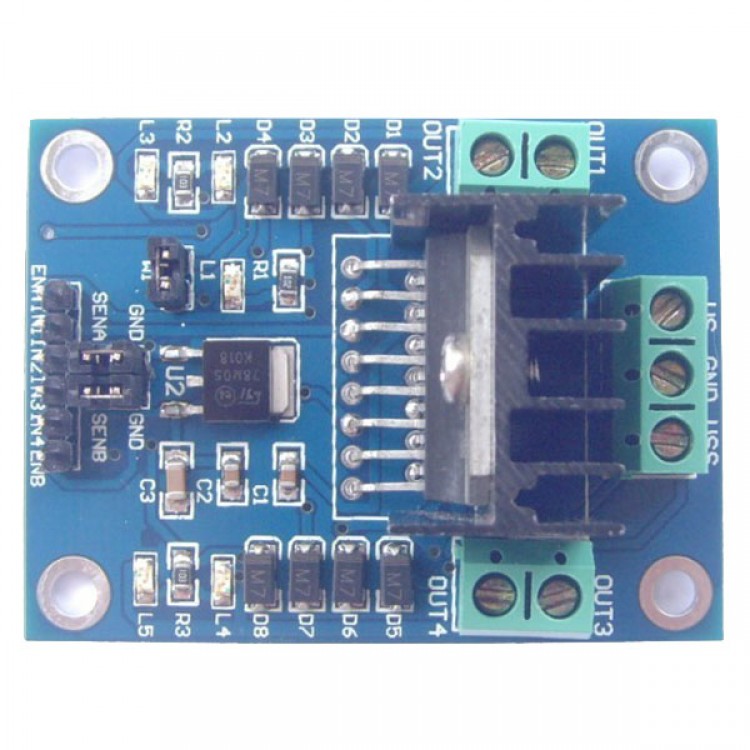

- This is a 4.8-46V, 2A Dual Motor Controller which uses ST L298N dual full-bridge driver. Its performance has been improved greatly. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Drive current up to 2A per motor output.

Specification:
- The logic part of the input voltage: 6 ~ 12V
- Driven part of the input voltage Vs: 4.8 ~ 46V
- The logical part of the work current Iss: 36mA
- Drive part of the operating current Io: 2A
- Maximum power dissipation: 25W (T = 75 degree Celsius)
- Control signal input level:
- High level: 2.3V = Vin = Vss
- Low:-0.3V = Vin = 1.5V
- Operating temperature: -25 degree Celsius ~ +130 degree Celsius
- Drive Type: Dual high-power H-bridge driver
- Module Size: 43mm*57mm

- Onboard L298N dual H bridge DC motor driver chip
- Onboard 78M05 chip to stablize the power supply, supplying stable working voltage for L298N. when VS voltage is smaller than 7V, 78M05 can stop using, W1 can be connected with shorter line, VS=VSS. When VS voltage is larger than 7V, please disconnect W1, the chip VSS will be powered by 78M05 with step-down voltage
- Onboard direction controlling signal light, power signal light
- L298N related pins have been elicited and annotated
- PCB size board:43(mm)x57(mm)

Packing list:
- 1 x L298 motor driver module
