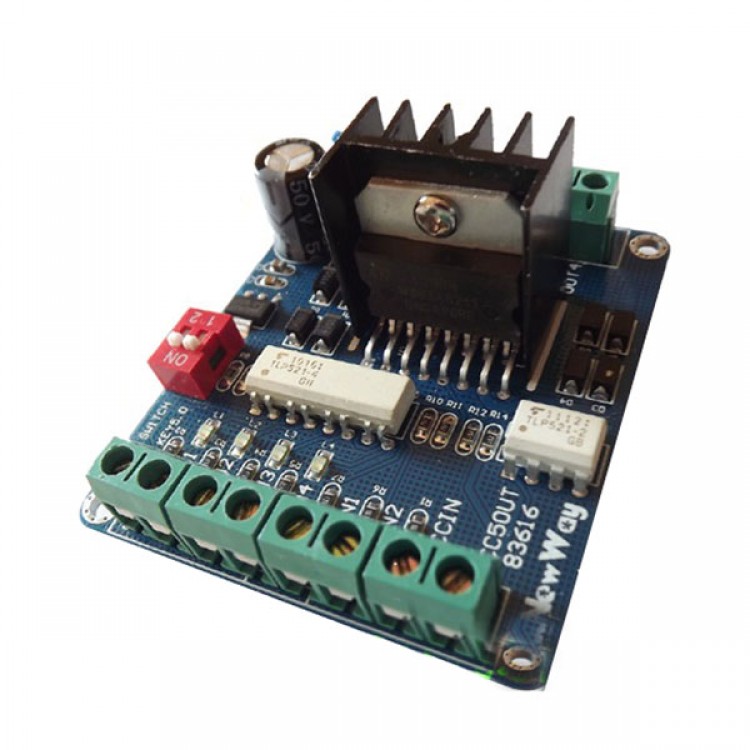

L298N Motor Drive Module DC Stepper Motor Drive Six Coupling Full Isolation w/ Video Guide

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.57
  • Price in reward points: 96 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.38 $9.19 $8.90 $8.52 Contact US
Quantity:

L298N Motor Drive Module DC Stepper Motor Drive Six Coupling Full Isolation w/ Video Guide

Parameters:

- Drive chip: L298N dual H bridge DC motor drive chip
- Power supply range: 5----46V
- Peak current Io: 2A*2
- Logic peak current Io: 2A
- Logic terminal power supply range: 5---7V degree
- Logic part working current voltage range: 0---36mA
- Control signal input voltaeg range:
   low level: -0.3V≤Vin≤1.5V
   high level: 2.3V≤Vin≤Vss
- Enabling signal input voltage range:
    low level: -0.3≤Vin≤1.5V (control siganl not available)
     high levle: 2.3V≤Vin≤Vss (control signal available)
- Max consumption: 25W (T+75degree)
- Working temp: -25----130degree
- Dimension: 60mm×54mm
- Weight: 64g
- Other expansion: current detection interface, control directional signal, logic part, onbaord power supply interface, resistor choosing interface
