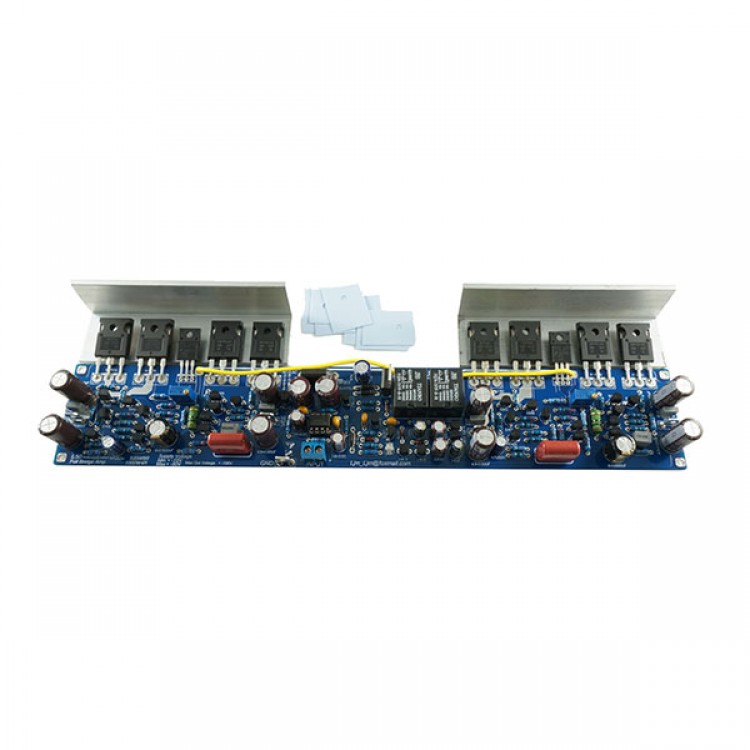

L50 500W 8ohm Full Bridge Single Channel Preamplifier Latter Merge Assembled Board 500W w/ Aluminum Angle

Description:

- The only version that supports single channel 500-1000W 8ohm full bridge amplifier
- Adopting full bridge output structure
- Has 500W 8R output power
- L50 can output +-100W sinusoidal wave, adopting field effect tube HEXFET and output through parallel

Parameters:
Output power:

- 500W 8R    1000W 4R single channel,  power supply + - 50V DC,  plus  AC12-0-12
- 400W 8R      800W 4R   single channel ,  power supply + -45V DC, plus  AC12-0-12
- 300W 8R       600W 4R  single channel,  power supply + -38V DC, plus AC12-0-12
- Volage gain: 200
- Input sensitivity: 0.5V, output +-100V
- Noise value: <25MW
- Sound distorion: <0.02%
- Max output current: >20A
- Amp efficiency>60%, efficiency is 10% larger than half bridge amplifier
