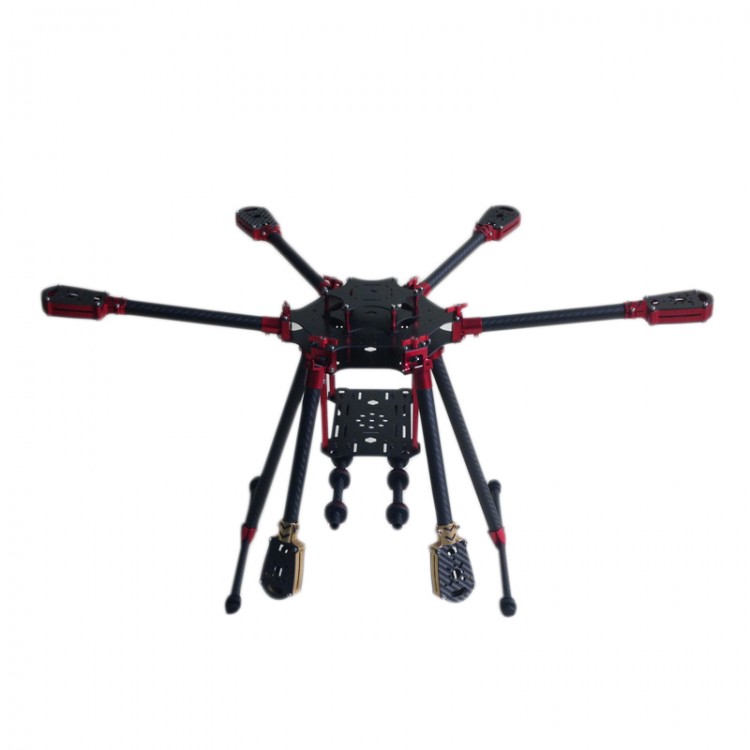

L800 3K Aluminum Carbon Fiber Folding Umbraller Hexacopter Frame for Flight Control Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$229.58
  • Price in reward points: 2296 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $224.99 $220.40 $213.51 $204.33 Contact US
Quantity:

L800 3K Aluminum Carbon Fiber Folding Umbraller Hexacopter Frame for Flight Control Multicopter

Parameters:

- Wheelbase diameter: 800MM
- Diameter: 16mm
- Center plate diameter: 185mm
- 3K Carbon fiber board thickness: 1.5mm
- Two layer center plate distance: 22mm
- Rotor blade size: 15 inch propeller
- Empty copter weight: 780g
- The frame size after folding: height 430mm*width 370mm*top width 10mm
- Tripod fround tube length: 300mm

Specification:
- Matt and twill 3K carbon aluminum alloy frame
- The angle for the arm: 7 degree
- Width of the tripod: 300mm
- Height for placing battery: 100mm
- Width of the battery plate:90mm
- Length of the battery plate:150mm
- The hole distance for mounting the motor: 14mm-28mm
- Motor base size: length 64mm*width 64mm*thickness 14mm
- ESC can be placed in the motoe base
- The diameter for maximum mounting carbon tube: 16mm

Note: No electronic accessories, but empty hexacopter frame only

Package included:
- 1 x L800 Hexacopter Frame
