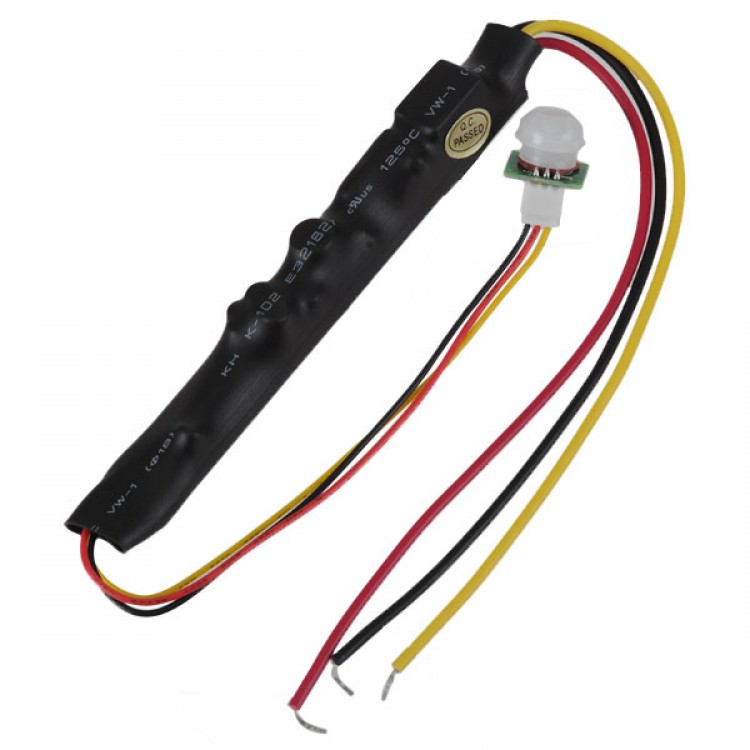

Lamp Control Infrared Motion Sensor Switch ModuleTDL-738
Specification:
- Power Source: 100~130V/AC
- 220~240V/AC
- 90~250V/AC
- Power Frequency: 50-60Hz
- Ambient Light: <3Lux~daylight
- Rated Load: 1200W(220~240V/AC)
- 800W(100~130V/AC)
- Time Delay: 5Sec.~9Min.
- Detection Distance: 12m( 24 adjustable)
- Green Led Activity Indicator
- Work Temperature: -20~+40
- Power Consumption: 0.45W(static 0.1W
- Installation height: 1.5-3.5m
- Detection Motion Speed: 0.6-1.5m/s
- Working Humidity: <93%RH
- Typical Applications
- Private Office
- Storage Closet
-Conference Room
- Restroom w/o obstructions
- Smaller Classroom
- Other enclosed areas with
- Obstructions.
Sensor Highlights
- SMD Technology Sensor
- Manual Override
- 360o Coverage
- Self-contained Relay
- Adjustable Time Delay
- Adjustable Lux
- Adjustable Sensitivity
- Multiple Sensor Capability
