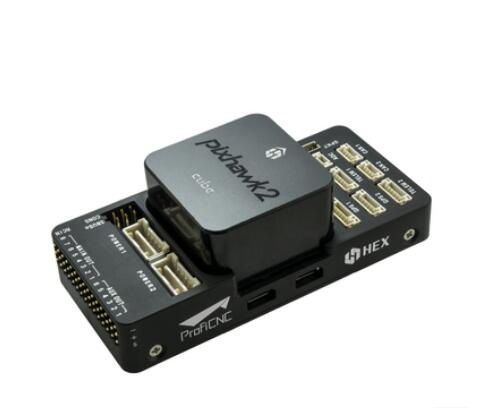

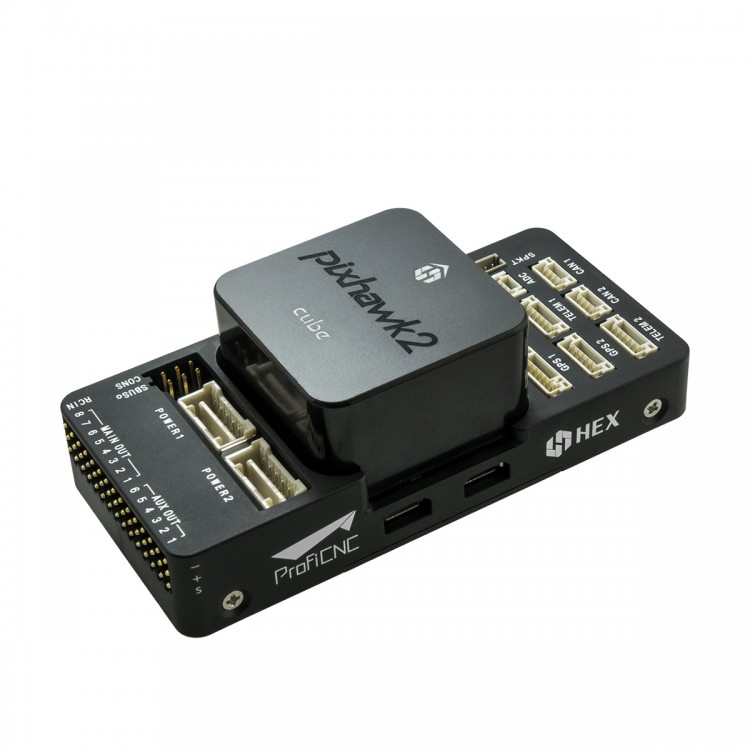

Latest PIXHAWK2 Open Source Auto Pilot Automatic Flight Controller PIX+GPS


Product Description:
- Built-in IMU heating system supports operation temperature below zero.

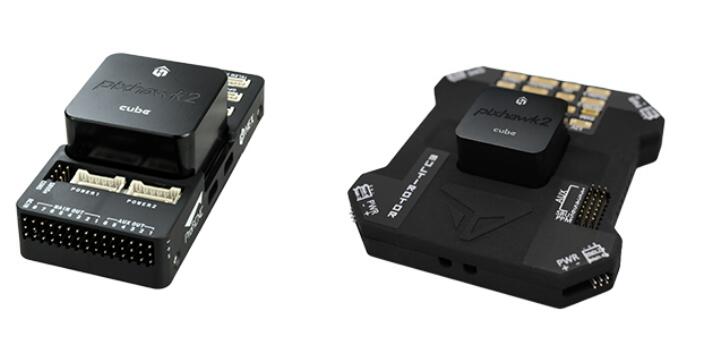

- Module flight control design,can provide custom carriers with different needs,fully compatible for RTK difference GPS,Centimeter accurate locating
- IMU:Two redundancy barometer,triplex accelerometer,gyroscope magnetometer
- Dual processor provides more stable flight schemes.
- Core processor and FPU (Floating point unit)Error protection coprocesor
- Flash memory 2MB,256kb memory

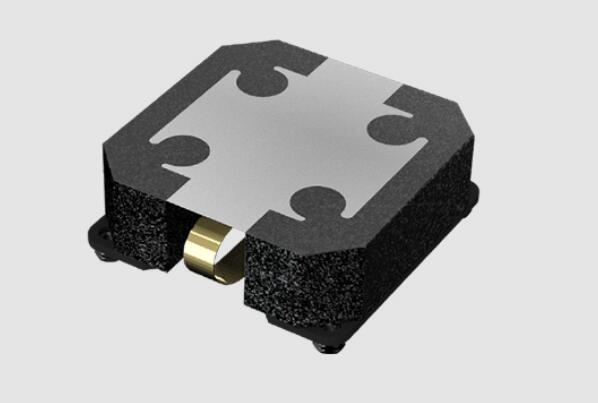

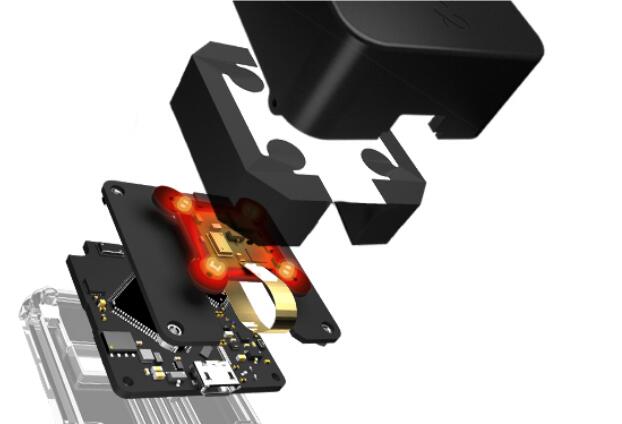

- IMU built-in isolation shock absorption
- Built-in heating resistance,IMU thermostatical control,working temperature(-10℃~55℃)

Hardware Parameter & Flight Function:

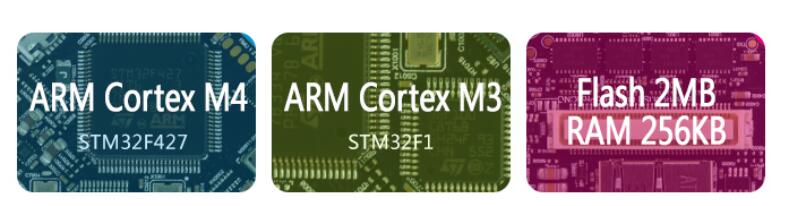

- Main processor:STM32F427 V3-------Support spot hover,high altitude flight,waypoint autonomous flight,following mode...,ect.Over 10 kinds flight mode.
- Coprocessor:STM32F1------Ground station support Qgroundcontrola and Mission Planner.
- Support remote control signal:PPM/SBUS/DSM----- Built-in flight date recording.
- Power supply redundancy support:Support 3-channel redundancy------Flight date real-time tranmission
- Sensor number:3 pairs IMU------Support 360 degree obstacle avoidance (need to use with ranging sensor)
- Sensor Details:
L3GD20 (triplex accelerometer)
LS303D (accelerometer+magnetometer)
MPU9250x2 (accelerometer+gyroscope+magnetometer)
MS5611x2 (barometer)
- Software support:PX4 and Ardupilot open flight control software-------Cooperative computer,support TX1,Raspberry Pi,Intel Edison...,ect. cooperate working.
- Model support:Fixed wing;Multiple rotor 3 axis~8 axis;helicopter;Vertical lifting fixed wing;car/boat/submarine-------Support OSD image transmission display.

Main parameter:
- Weight:73g
- Shell material:CNC aluminum alloy forming (cube)+Injection ABS (carrier)
- Dimension:cube 36.2X36.2X22mm;Carrier:94.5X44.3X17.3mm
- Working temperature:-10℃~55℃ IMU thermostatical control

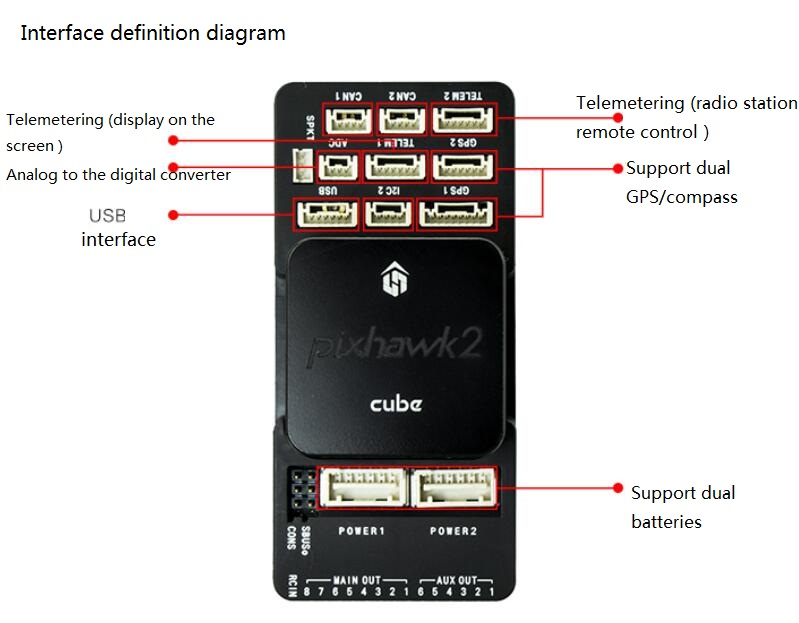

- PWM output IO:13
- Mavlink serial port:2
- GPS support number:2
- Debug debugging interface:1
- 12C interface:2
- CAN interface:1

Protection function:
- Intelligent return
- Battery low voltage protection
- Flight barrier
- Remote control Out of contact protection

Package List:
- PIXHAWK2 Open Source Auto Pilot
