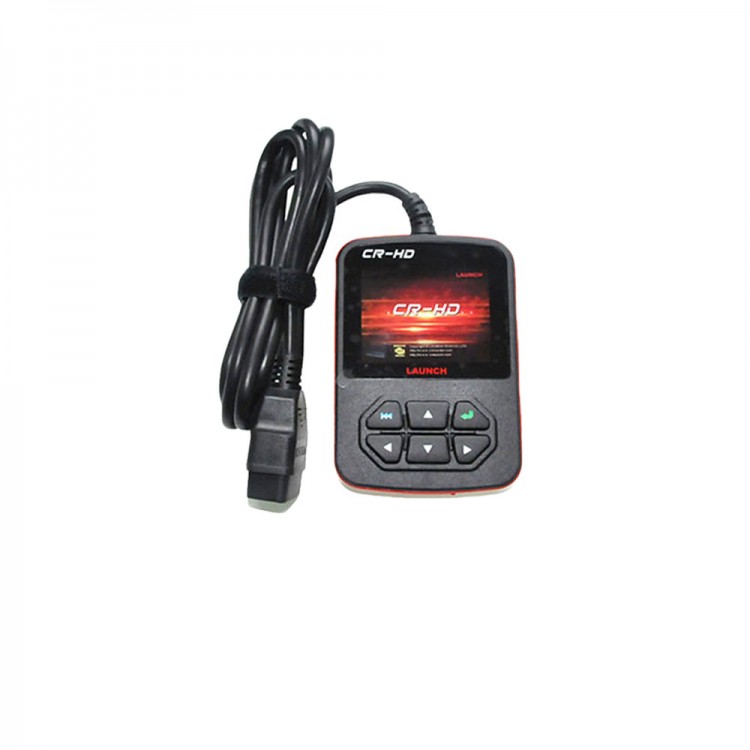

Launch CReader CR-HD Heavy Duty Code Scanner Launch 2.8" Color LCD Car Auto Truck Code Reader

Launch CReader CR-HD Heavy Duty Code Scanner Launch 2.8" Color LCD Car Auto Truck Code Reader

CR-HD Description:
- CR-HD is the first heavy truck code reader which Launch latest developed.
- It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708)
- Applied 2.8" color LCD with beautiful interface
- Equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks.
- From now on, the heavy duty trucks also have their own small-scale diagnostic tool.

CR-HD Functions:
- Read fault code
- Clear fault code
- Read data streams
- Support multiple ECUs
- Support 6PIN, 9PIN, and 16PIN diagnostic connectors
- Support J1939, and J1708 vehicle communication protocols
- With multi-languages function (English, and French, etc.)
- With online software upgrade function (USB2.0)

CR-HD parameters:
- Screen: 2.8", 262K true color, 320*240 LCD
- Input voltage range: 8~36V
- Operating current: typically <100mA
- Typical power consumption: <1.2W
- Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
- Environmental temperature: 0°C~50°C
- Storage temperature and humidity: -20°C~70°C@ RH 60%
- External dimension: L*W*H=121*82*26mm
- Single unit: <500g

Package List:
- 1 x Launch CReader CR-HD
- Accessories
