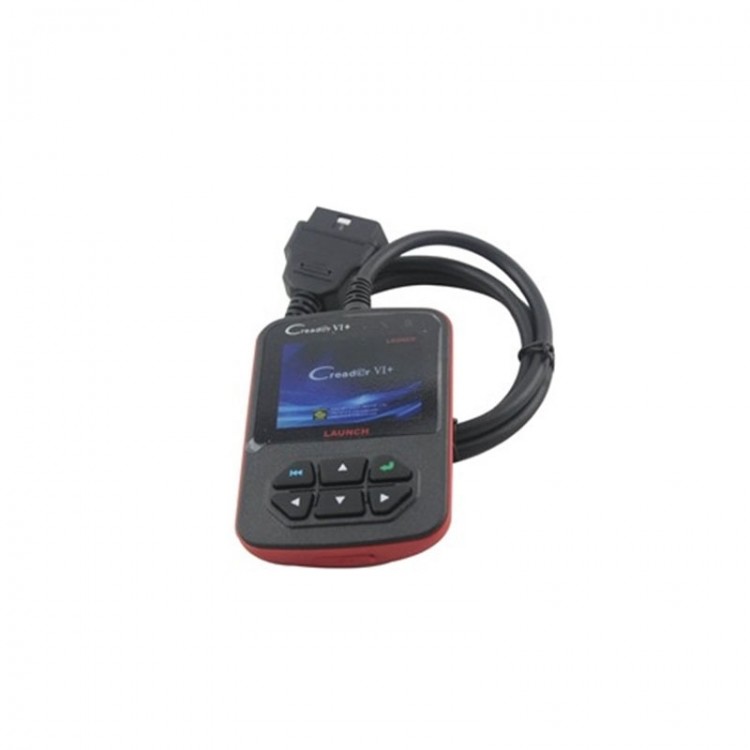

LAUNCH CREADER VI+ VI Plus 6+ Code Reader Support JOBD Automotive Fault Diagnostic Tool

LAUNCH CREADER VI+ VI Plus 6+ Code Reader Support JOBD Automotive Fault Diagnostic Tool

Description:
LAUNCH CREADER VI+ has applied new product platform, which makes Creader VI+ (code reader) run fast and diagnose more efficiently

100% Original code reader communicates with all OBD2/CAN compliant upgraded by internet.

LAUNCH Creader VI+ (code reader) is a new automotive fault diagnostic tool that Launch specially designed for DIY user and maintenance personnel of small auto repair shops. This product has applied color LCD, user-friendly function menu design, supporting full functions of OBD&EOBD vehicle and basic diagnostic functions of 8 Japanese brands JOBD vehicles,this is better than the creader VI. and  with multi-languages selection and LED diagnostic status indication, which greatly improves the operability of product. It has applied whole new product platform, which makes Creader VI+ (code reader) run fast and diagnose more efficient.

Product functions:
- JOBD basic diagnostic functions
- Read fault code
- Clear fault code
- Read data streams
- OBDII full diagnostic functions
- Read dynamic data streams
- MIL indication
- Readiness status testing
- Query freeze frame
- Read current fault code
- Clear fault code
- On-board monitoring test for specific monitored systems
- Oxygen sensor detection testing
- Read vehicle information
- Read pending fault code
- Read control of on-board systems or components
- Query fault code
- Read permanent fault code
- Play back test data

Parameters
- Screen: full 2.8", 262K true color, 320*240 LCD
- Input voltage range: 8-32V
- Typical power consumption: <1.2W
- Operating current: typically <100mA@12V
- Wire connection: standard 16Pin OBD diagnostic connector
- Storage temperature and humidity: -20°C-70°C@ RH 60%
- Environmental temperature: 0~ 50 degree C
- External dimension: L*W*H=121*82*26mm
- Single unit: <500g

Package Contents:
- 1 x LAUNCH CREADER
- 1 x Cable
- 1 x Manual
