Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $15.73 | $15.41 | $14.93 | $14.28 | Contact US |

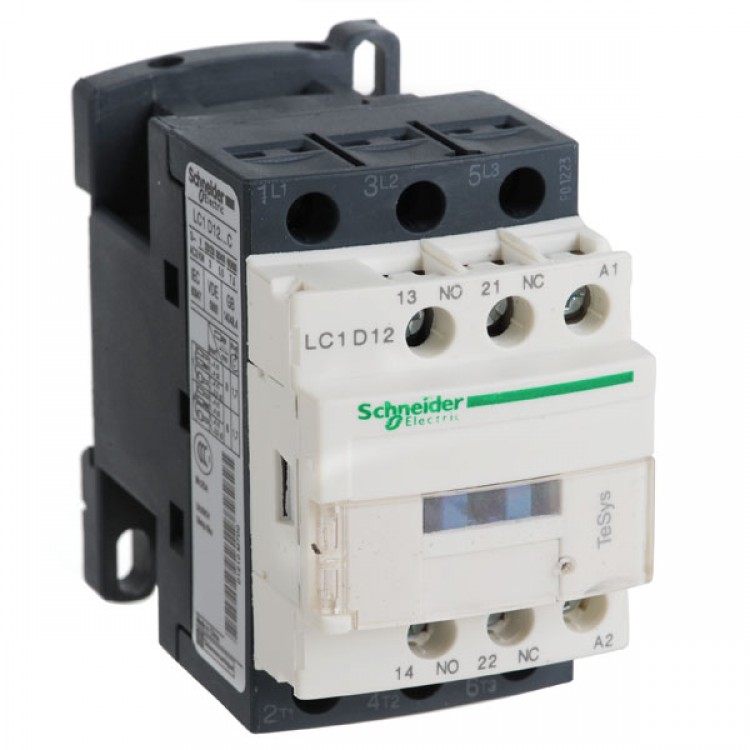

LC1D12B7C 24V 25A Rated 3 Poles 1NC 1NO AC Contactor
Descriptions:
- 3 Poles Contactor, Rated coil voltage in AC 24V, 50/60 Hz coil various voltages available,1 N/O and 1N/C instantaneous auxiliary contacts, connection by screw clamp terminals or connectors
- For long-distance making and breaking circuit and frequent start and control AC electric motors.
Specifications:
Product Name | AC Contactor | ||||||
Model Number | LC1D12B7C | ||||||
Material | Plastic, Metal, Electrical Parts | ||||||
Rated Coil Voltage | AC 24V, 50/60Hz | ||||||
Ith | 25A | ||||||
Ui | 690V | ||||||
Uimp | 6KV | ||||||
AC-3 | Voltage | 220/230V | 380/400V | 660/690V | |||
Power | 2.2KW | 4KW | 5.5KW | ||||
Number of Pole | 3 Poles | ||||||
Contact | 1NO+1NC | ||||||
Overall Size(Approx.) | 72 x 45 x 87mm/ 2.8" x 1.8" x 3.4" (L*W*H) | ||||||
Color | Gray, White | ||||||
Net Weight | 334g | ||||||
Package Content | 1 x AC Contactor |
