LC301 0.1nH-50uH SMD nH Inductance Frequency Meter High Precision L/F Test

Availability: In stock, usually dispatched in 1 business day

  • Price:$96.50
  • Price in reward points: 965 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $94.57 $92.64 $89.75 $85.89 Contact US
Quantity:

LC301 0.1nH-50uH SMD nH Inductance Frequency Meter High Precision L/F Test

Description:
- LC301 SMD nH inductance tester is the headquarters for the latest research and development of professional small inductance (0.1nH to 50uH) of the chip inductor designed measuring instruments, test terminals using four-terminal Kelvin test tongs, four RCA jacks to connect the interface to use, very easy to use random matching patch clamp set of Kelvin test, measurement range from 10nH to 50uH, the resolution is 0.1nH, less than 10nH can tell, but not accurate enough, the test frequency of 200kHz, 100kHz, 50kHz, 20kHz four kinds can be depending on the flexibility to choose the inductor, the following are some of the local measurement of chip inductors and 6000 U.S. BK886 diversified than holding the bridge test.

(1) The following picture is a local measure of a 3.9nH chip inductor, we can see that there is a certain error, but the same inductance bridge with BK886 test result is 12nH, more outrageous.




(2) The following picture is a local measurement of the chip inductor 68nH

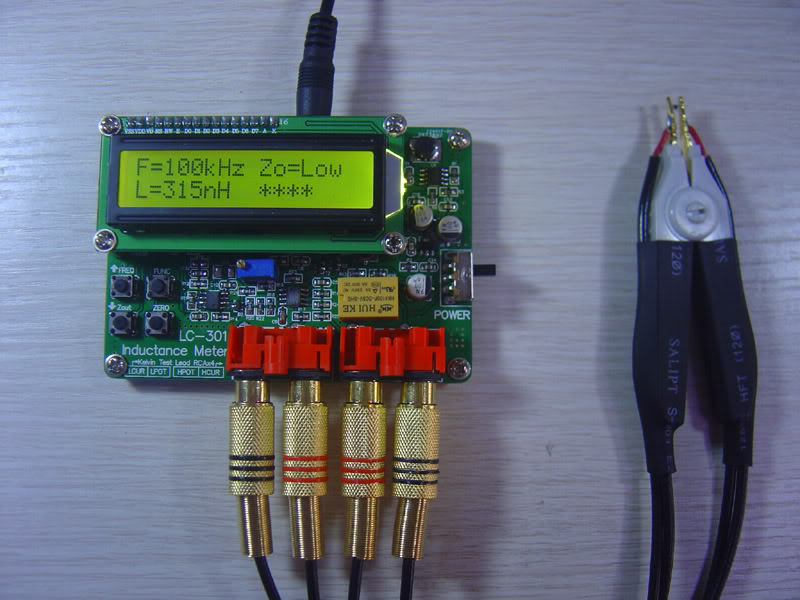

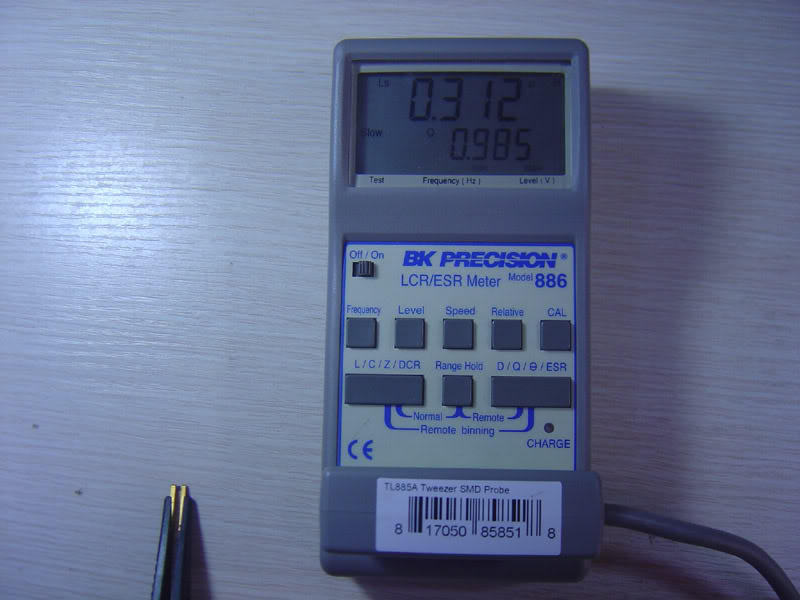

(3) measuring a 330nH laminated inductance, the machine is 315nH, BK886 measurement is 312nH, closer




Package list:
- LC301  nH inductance tester unit  x1
- Kelvin cable x1
- 1 matching power supply  x1
