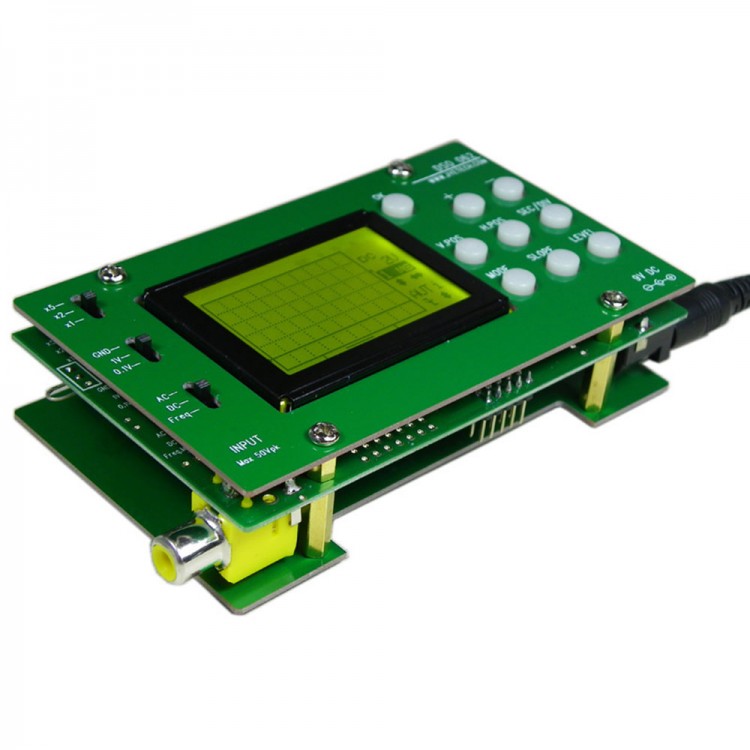

LCD Digital Storage Oscilloscope 1M Bandwidth 20Mhz Sampling Rate with Panel DSO06203P

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.96
  • Price in reward points: 450 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.06 $43.16 $41.81 $40.01 Contact US
Quantity:

LCD Digital Storage Oscilloscope 1M Bandwidth 20Mhz Sampling Rate with Panel DSO06203P

Description:

This small, simple yet useful digital oscilloscope is capable to do 20Msps hardware equivalent-time sampling. It is totally MCU based, excellent as a educational/training project for students/hobbyists.

Specification:
- The maximum equivalent sampling rate of 20MSa/s
- The real-time sampling rate of 2Msps
- Accuracy: 8Bit
- Sampling buffer depth: 256 byte
- Simulation of frequency band width:0- 1MHz
- Vertical sensitivity:100mV/Div - 5V/Div (progressive by 1-2-5)
- The vertical displacement is adjustable, with instructions
- Input impedance 1M
- Maximum input voltage: 50VpK (peak)
- Coupling DC/AC
- Horizontal sweep range: 0.2 s/Div - 10m (min) /Div (progressive by 1-2-5)
- With automatic, conventional and single trigger mode, easy to collect transient waveform
- Selection of internal / external trigger source
- Available rising or falling edge trigger
- Trigger level position can be adjusted, with instructions
- Observable trigger before the wave (Fu Yanchi)
- Trigger output, can be more than one oscilloscope connected in series to achieve the multichannel measurement, or other instrument used for synchronization.
- May at any time to freeze the waveform display (HOLD)
- With the 500Hz/5Vpp test signal
- Can be stored up to 6 groups of waveform, the shutdown is not lost
- Can facilitate the transfer of stored waveform display
- The display screen in the form of graphics files sent through the serial port to the PC machine
- Meter can measure frequency up to 5MHz frequency

Package Including:
- 1 X DSO062 oscilloscope (Finished product)
- 1 X Probe
- 1 X Power adapter
