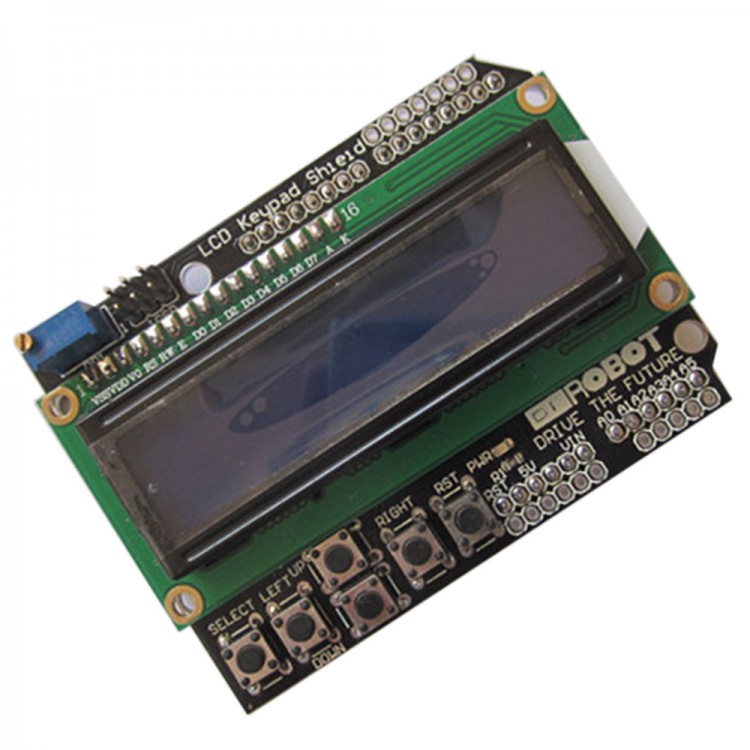

LCD Keypad Shield LCD1602 LCD 1602 Module Display for ATMEGA328 ATMEGA2560 Raspberry Pi UNO Blue Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$6.93
  • Price in reward points: 69 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $6.79 $6.65 $6.44 $6.17 Contact US
Quantity:

LCD Keypad Shield LCD1602 LCD 1602 Module Display for ATMEGA328 ATMEGA2560 Raspberry Pi UNO Blue Screen

Description:

The expansion board, Immersion Gold PCB processing technology, materials and full motherboard with a brand new high-quality 2-line, 16-character LCD, not only has the contrast knob, backlight selector switch, also with four direction keys and a select buttonand a reset button; this 1602 LCD expansion board will simplify the circuit in the true sense of the direct plug this board Duemilanove controller can.

Specifications
- Module size: 20.5mm × 41mm
- Weight: 57g
- 1602 Character LCD Overview

The 1602LCD main technical parameters:
- Display capacity: 16 x 2 characters
- Chip working voltage :4.5-5 .5 V
- Working current: 2.0mA (5.0V)
- Module operating voltage: 5.0V
- Size: 2.95 × 4.35 (W × H) mm
- Pin Function Description:
- 1602LCD using a standard 14-pin (no backlight) or 16 feet (with backlight) interface, pin interface description

Instruction: Click here
Data download: Click here

Package included:
- 1 x 1602 Module
