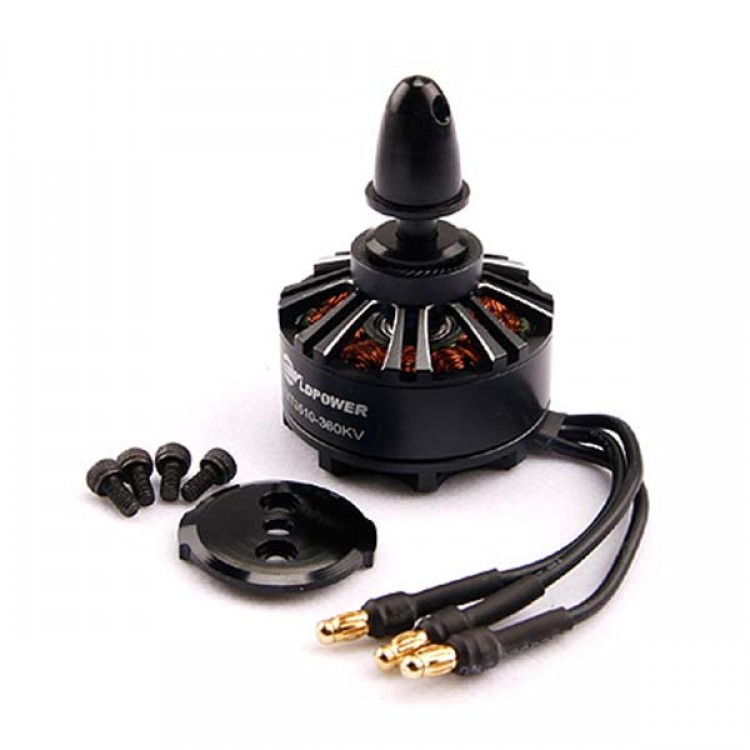

LD-Power MT3510 360KV Brushless Motor for Multicopter (3-6S)

Model MT3510
Motor  Diameter 42mm
Motor Length 29mm
Stator Diameter 35mm
Stator Length 10mm
Shaft 4mm
Weight 102
Batteries 3-6Cells
No Load Current 0.8A


Prop Test Data                            MT3510-360KV
Voltage(V) Propeller
(inch)
Throttle Current (A) Watts(W) Thrust(G) RPM
(RPM/Min)
Efficiency (G/W)
18.5 APC12*3.8 1 18.5 256 2134 13.84
2 37 478 2786 12.92
3 55.5 650 3124 11.71
4 74 784 3467 10.59
5 92.5 930 3789 10.05
6 111 1023 4111 9.22
7 129.5 1156 4231 8.93
8 148 1234 4567 8.34
9 166.5 1345 4789 8.08
10 185 1456 4890 7.87
100% 11.5 212.75 1600 5004 7.52
APC14*4.7 1 18.5 310 2330 16.76
2 37 505 3000 13.65
3 55.5 678 3245 12.22
4 74 809 3556 10.93
5 92.5 920 3789 9.95
6 111 1020 3889 9.19
7 129.5 1100 4067 8.49
8 148 1200 4188 8.11
9 166.5 1320 4398 7.93
10 185 1333 4660 7.21
100% 12.2 225.7 1620 4988 7.18
DJI5*5 1 18.5 314 2335 16.97
2 37 508 3000 13.73
3 55.5 678 3500 12.22
4 74 813 3800 10.99
5 92.5 955 4110 10.32
6 111 1100 4300 9.91
7 129.5 1200 4566 9.27
8 148 1300 4699 8.78
9 166.5 1400 4788 8.41
10 185 1500 5112 8.11
100% 10.7 197.95 1500 5234 7.58


Includes:
1 x motor
1 x prop adaptor
1 x prop holding down plate
4 x screws
