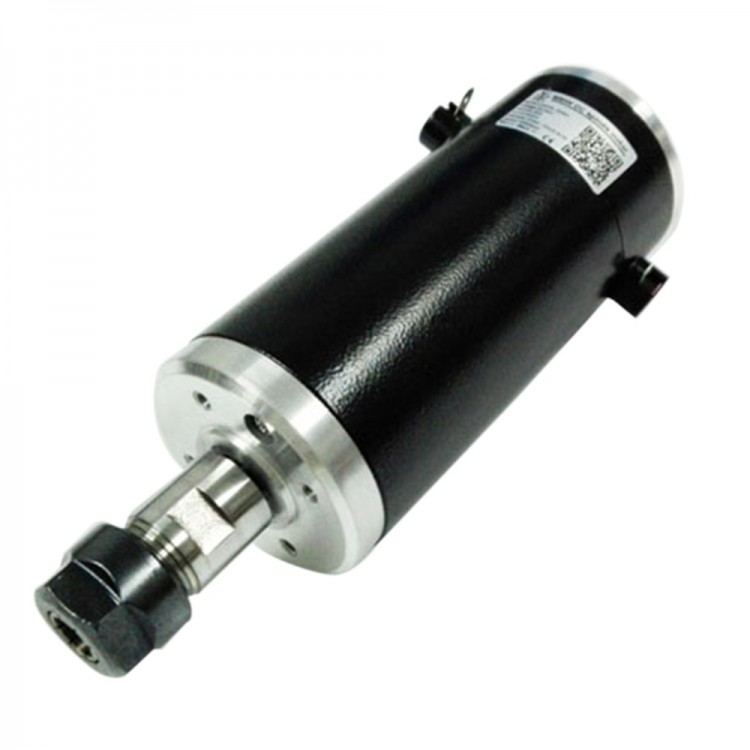

LD45Zk-100 DC24V 4A 0.1KW High Torque Drilling Motor 1000r/min for CNC Carving Engraving Drilling Punching
Specification:
- Working voltage: DC DC24V, maximum current: 4A, maximum power: 0.1KW.
- Speed: 1000r/min torque: 1000mN.m insulation resistance: >2MOhm insulation dielectric strength: 400V
- Motor body diameter: 45mm, part of the clamping head length: 37mm collet portion, diameter: 16 mm. The length of the fuselage, 105mm, motor length: 142mm.
- Can be used for carving metal or nonmetal materials.
- Chuck ER11 can be processed in accordance with the requirements of change casually, 1-7MM specifications ER11 chuck specifications support 1, 1.5, 2.0, 2.5, 3.0, 3.175, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0
- Can be replaced by an external motor carbon brush wear design
Parameter:
- Size: 45*142mm
- Accuracy: 0.05mm
- Power: 100w
- Voltage: DC24V
- Speed: 1000rpm
- Resistance: 100MOhm DC500V
- Current: 4A
- Torque: 1000mN.m
- Weight: 0.6kg
Package included:
- 1 x High Torque Drilling Motor
