LD52GF-300W DC48V High Speed Spindle Motor kit MACH3 Control Drilling Motor for CNC Carving Engraving Drilling Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$130.56
  • Price in reward points: 1306 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $127.95 $125.34 $121.42 $116.20 Contact US
Quantity:

LD52GF-300W DC48V High Speed Spindle Motor kit MACH3 Control Drilling Motor for CNC Carving Engraving Drilling Machine

Description:
High precision 300W spindle motor. The speed can be up to 12000 rpm, the built-in brush is convenient to replace. Support AC220V and 110V voltage input for different regions of the voltage needs, control the speed of manual speed control, support for analog and MACH3/PLC control. High quality components, over current, over load, short circuit protection. Long service life, easy to install, is a cost-effective DC speed control power supply is widely used in automation equipment

Specification:
- Speed: 1000r/min torque: 230mN.m insulation resistance: >2 Mohm insulation dielectric strength: 400V
- Motor body diameter: 52mm, part of the clamping head length: 48mm collet portion, diameter: 16 mm.
- Can be used for carving metal or nonmetal materials.
- Chuck ER11 can be processed in accordance with the requirements of change casually, 1-7MM specifications ER11 chuck specifications support 1, 1.5, 2.0, 2.5, 3.0, 3.175, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0

Parameter:
- Size: 52*175mm
- Accuracy: 0.02mm
- Voltage: DC12-48V
- Power: 300W
- Speed: 3000-12000r/min
- Resistance: 100MOhm DC500V
- Current: 6A
- Torque: 230mN.m
- Weight: 0.6kg

LD-S-500 speed-regulation power supply:
- Input voltage: AC110V-220V
- Ouput voltage: DC0-52V;Excitation output voltage DC52V
- Output current: 10A
- Size: length 190mm x width 105mm x high 60mm
- Adapter motor power: 50W ~ 500W
- Support manual potentiometer speed, 0-5V/0-10V analog speed and MACH3 software G code speed.
- For the DC otor 300W/400W/450W

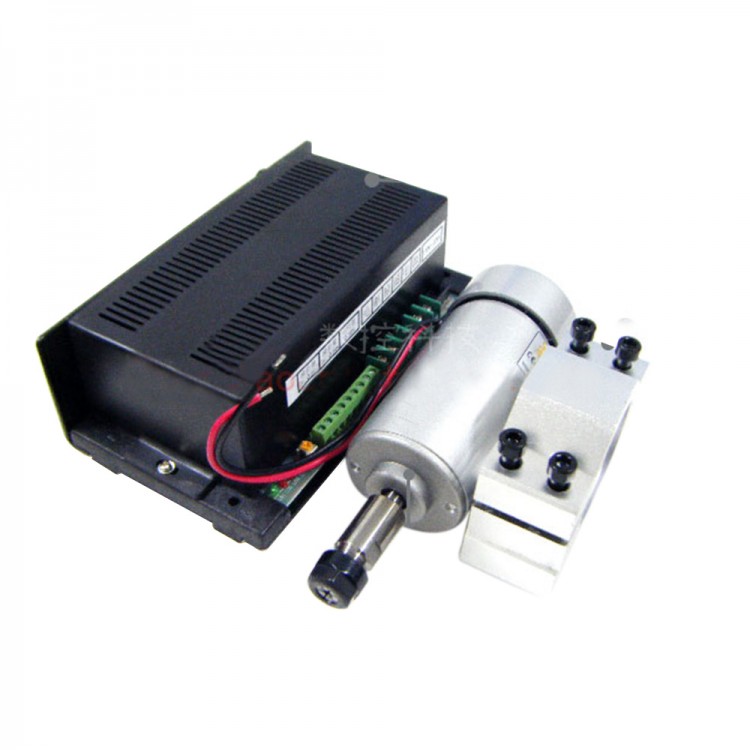

Package included:
- 1 x Motor
- 1 x Clamping seat
- 1 x LD-S-500 speed-regulation power supply
