• LD52GF-400W Air Cooled Spindle Motor DC 24V-52V 0.4KW 12000rpm for CNC Carving Milling
  • LD52GF-400W Air Cooled Spindle Motor DC 24V-52V 0.4KW 12000rpm for CNC Carving Milling

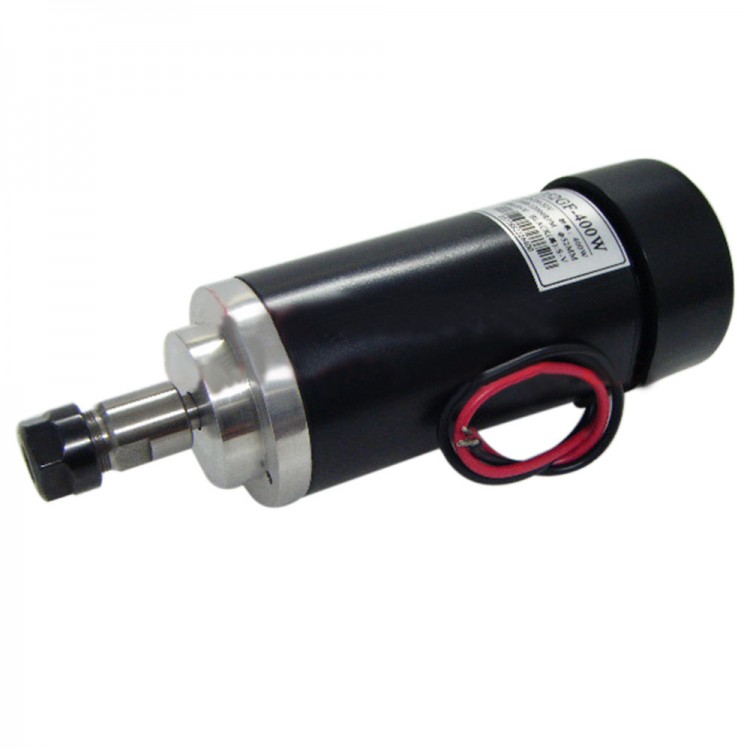

LD52GF-400W Air Cooled Spindle Motor DC 24V-52V 0.4KW 12000rpm for CNC Carving Milling

Availability: In stock, usually dispatched in 1 business day

  • Price:$73.11
  • Price in reward points: 731 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $71.65 $70.19 $67.99 $65.07 Contact US
Quantity:

LD52GF-400W Air Cooled Spindle Motor DC 24V-52V 0.4KW 12000rpm for CNC Carving Milling

Technical parameters:

- Spindle motor: DC brushed air-cooled spindle motor
- Power: 400W
- Operating voltage: 12-52VDC
- Maximum working current: 8A
- Rotation Speed: 2000-12000r / min.
- Torque: 343mN.m
- Diameter: 52mm
- Insulation resistance: 100MOhm DC500V
- Motor Overall length: 170mm (includes gripping parts and motor)
- Axis collet Length: 37mm
- Diameter of ER11-A clamping holder: 16mm
- The spindle run out: about 0.01-0.03.
- Weight: 0.9kg
- Material of clamp mount: Aluminum

Package:
- 1pcs 400W Spindle Motor
