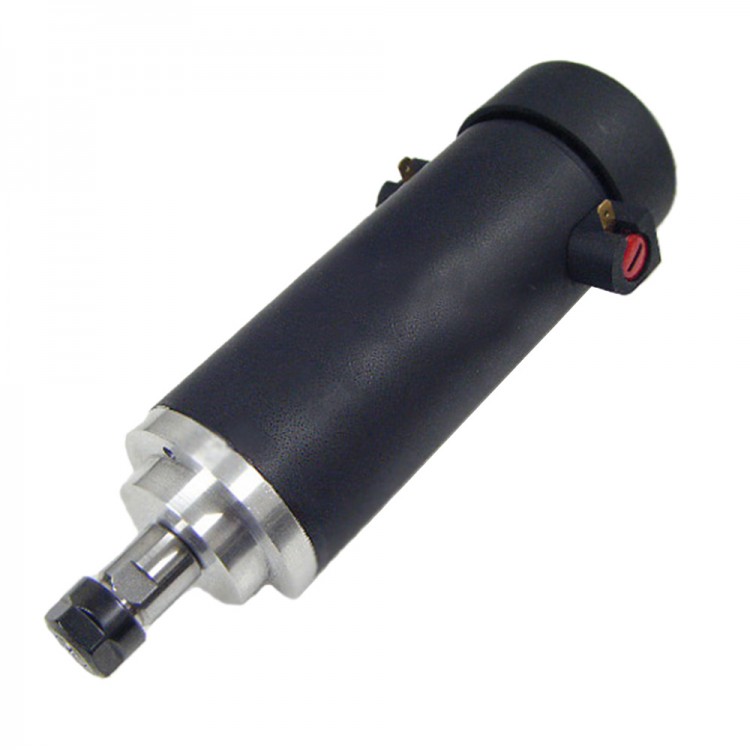

LD52GF-450W High-Speed Air-Cooled DC Spindle Motor for CNC Engraving Machine Drilling DIY Ppolishing Machine
Description:
Motor voltage DC voltage needs some straight ≤ + 52V, current 6A above, the best choice to use switching power supplies, power point margin to stay. If you are using a transformer, be sure to output AC to DC rectifier filter, otherwise it will damage the motor. Motor (red) terminal connected to the power supply + V pole motor (black) terminals connected to the supply -V pole.
Technical parameters
- Operating voltage: DC12-52V
- Rated voltage: 48V
- Work maximum current: 9A
- Maximum power: 0.45KW
- Speed: 3000-12000r / min
- Torque: 450mN.m
- Insulation resistance:> 2 megohms insulation
- Dielectric strength: 400V
- Motor Body Diameter: 52mm
- Chuck portion length: 32mm
- Chuck portion, diameter: 16mm
- Body length: 135mm
- Motor Overall Length: 192mm
- Spindle runout about 0.01-0.03
- Can be used for engraving metal or non-metallic materials
- ER11 collet can be easily replaced as processing requirements, specifications support 1,1.5,2.0,2.5,3.0,3.175,3.5,4.0,4.5,5.0,5.5,6.0,6.5,7.0MM ER11 chuck,
- Motor brush wear can be replaced.
Package included:
- 1 x Motor
