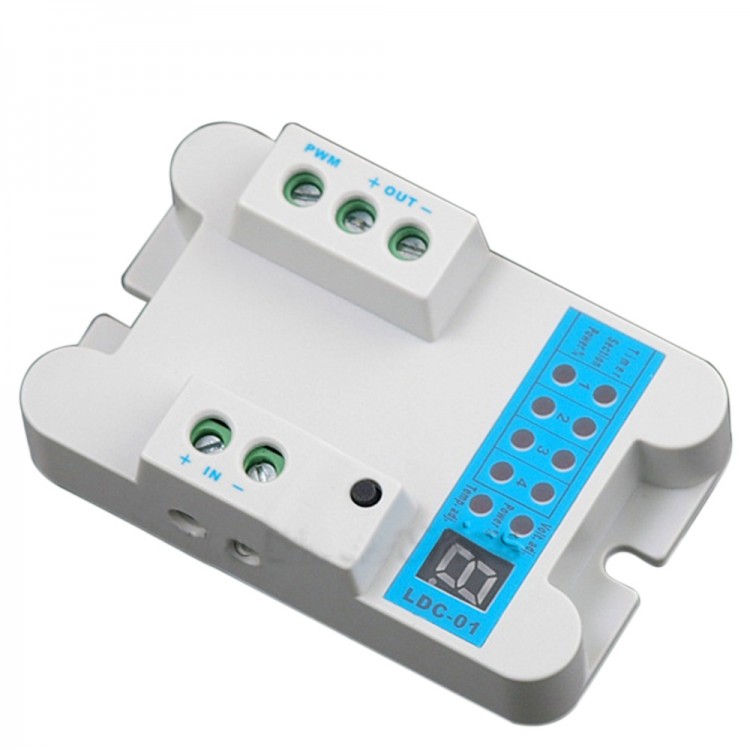

LDC-01 LED DC8V-32V 9A Constant Current Driver Digital Display Power Management Unit
Features:
- Wide input voltage range: DC8.0V-DC32V ,compatible with 12V/24V full voltage range ·
- High precision constant current control (<±2)
- Efficiency >=95 % in 24V system;
- Efficiency >=92 % in 12V system;
- Peak efficiency of 96 %;·High power density design with small size
-Using the extraordinary life of the metalized film capacitors as power-driven filter which ensures the long lifetime of driver
- Adjustable rated output current ·Linear PWM duty cycle dimming control with high reliability
- PCB with high-moisture proof, anti-condensation resin processing
- Nature cooling
- Optional digital management unit LDC-01, which has four working timer period. For each period, the working hours and power(0~100%) can be set independently.
Protections:
- Input polarity reverse protection
- Output short circuit protection
- Output open circuit protection
Package included:
- 1 x Digital Display Power Management Unit
