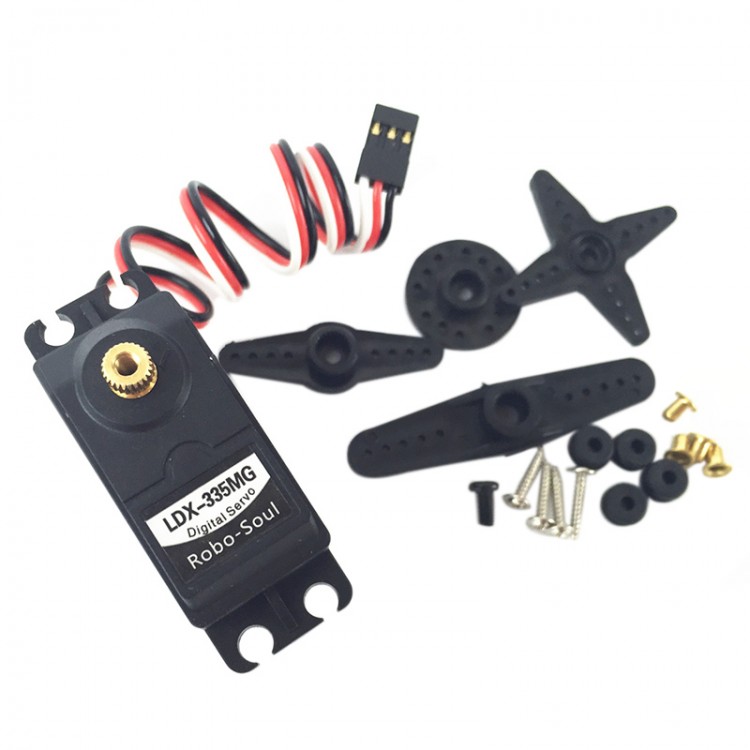

LDX-335MG Digital Metal Gear Robot Servo Mechanical Arm 180 Degrees Robot Servo for Remote Control Car Robot
Description:
- This is the digital servo, only need to send a signal to lock the angle to be unchanged.
- Precised control, good linearity and control protocol. The output angle is accurate and fast response
- Added micro controller. That's a programmable SCM
- When interruption of power supply, the digital servo can be used to twist 360 degrees, on the electric control of the time, 180 degrees of precision rotation. Controlled by the servo controller and PC slider index 500~2500 (0.5ms~2.5ms) that corresponds to this actuator 0-180 degrees.
Instruction:
PWM pulse width adjustment angle, the period is 20ms, duty cycle 0.5ms~2.5ms of the pulse width level corresponding to 0 degree -180 degree, that is a linear relationship. Usually the servo actuator controller uses 500-2500 value corresponding to the servo control of the output angle of the duty ratio of 0.5ms~2.5ms, so that the control accuracy of the LDX-335MG servo is 3us, the minimum control accuracy can reach 0.2 degrees within the 2000 pulse width!
Specification:
- Dimension : 40mm x 20mm x 40.5mm
- Weight: 60g
- Blocking torque: 15kg/cm 6V; 17KG/CM 7.4V
- Operating Speed : 0.16sec / 60 degrees 7.4V
- Operating current: 100mA (Mo load)
- Connector Wire: 300mm
Packing content:
- 1 x LDX-335MG Servo Sets
