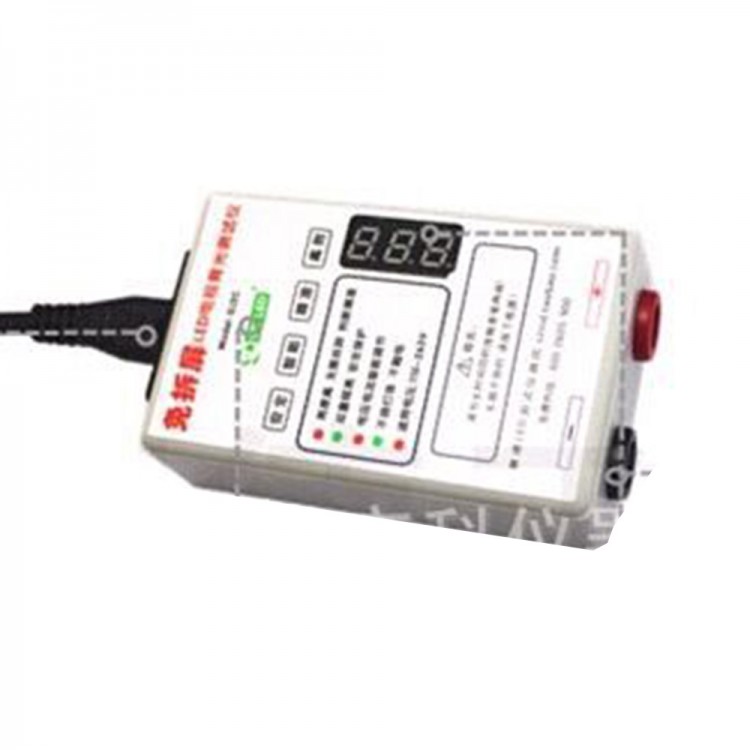

LED LCD TV Laptop Backlight Tester Tool Lamp Beads Test Detect Repair Voltage Regulator

LED LCD TV Laptop Backlight Tester Tool Lamp Beads Test Detect Repair Voltage Regulator

Description:
LED LCD TV screen backlight problems are getting increasingly common.As we know,slight voltage change can have a big influence on TV function.So you need a useful tool which is called LED LCD screen backlight tester.With help of this tool,you can know the LED LCD screen backlight problem quickly .With function of showing working voltage,you can know the exact problem.If there is something wrong with LED light group,you can change it or replace the bad LED beads.

PRODUCT DESCRIPTION
- Model No: SID-GJ2C
- Input Voltage: 110-265V  (International)
- Output Voltage: 0-270V
- English Version
- High Brightness No Disassemble More Accurate.
- Double Isolated Safe Protection.
- Voltage and Current Intelligent Adjustment.
- Voltage Range:0-300V (slow boost safety design of soft start,About 4% of the reasonable error!)

MAIN APPLICATION
- Testing the backlight of LED at any size Display the voltage, It can be tested in a long time, and will not damage the lamp beads .
- If you are used to test the LED finished lamps, please disconnect the power supply before! Because it is likely to form a loop, resulting in abnormal test!

ADDITIONAL APPLICATION
- Can test the capacitance voltage
- Can test the regulator voltage regulator
- Lamp lamp plate voltage test value.

TESTING SKILLS
- Plug in power,it can be used after 5 to 10 seconds (first time, the machine needs to warm up).
- The soft start mode make the backlight getting brighter slowly.
- No burn out, If you can't make sure the "+"and "-", Don't connect the probes to the LED which be tested for a long time.
- Open Ciruit Protection : Don’t touch the output terminal of probes for a long time .It’s safe for touch the probes in short time periods.
- Double Isolate Design makes our tester safety with high strength and flame retardancy materials.

SAFE/SMART/ACCURATE/High EFFICIENT
- Double Isolated Safe protection No Burn out ,No Electric shock, Voltage and Current Intellgent Adjustment,
- High Brightness No need disassemble.

SINGLE LED LIGHT BAR BACKLIGHT TESTING
- Make sure the anode and the acthode.
- Connect the probes on the anode and the cathode.
- Light up the Single LED light Bar Backlight.
- Light up the Double LED Light Bar Backlight.

Package list:
- 1 x Tester
- 1 x Manual
- 1 x Test line
