| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $117.11 | $114.72 | $111.14 | $106.36 | Contact US |
The Latest DDCS Version4.1 4 Axis Independent CNC Offline Controller Machine and Manual Pulse Generator DDPMG
$329.72
The Latest DDCS Version4.1 3 Axis Independent CNC Offline Controller Machine and Manual Pulse Generator DDMPG
$310.28
DDCS-V4.1 4-Axis Standalone Motion Controller Offline Controller Support 3 Axis/4Axis USB CNC Controller Interface
$296.11

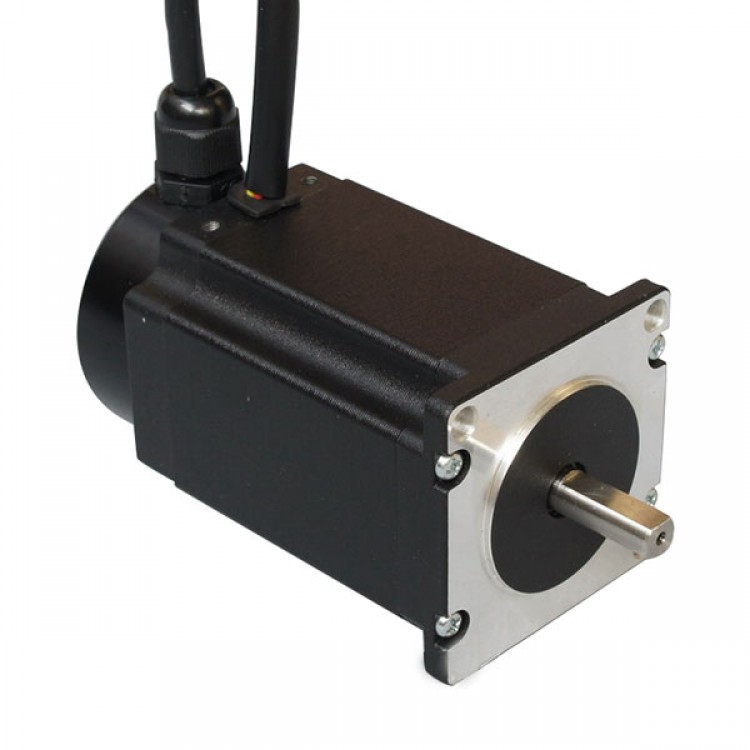

Lengthened 60x84 Two Phase Stepper Motor 5A 3N/M High Speed Type with Encoder
Description:
- This stepper motor with encoder is to cooperate stepper motor(real time compansation type) close loop controller to use.
- Encoder is 400, 500 or 1000 wires, by close loop controller software 4 microstep can reach 1600, 2000, 4000 pulses/round
- This motor is 4 wires high quality high speed motor, better than other motor, high speed performance, small noise and vibration, rotation speed can reach at 3000 round, 1200-1500 round can steadily drive carving machine or CNC mililng
Specification:
- Base: 60*60
- Length: 84
- Phase resistor: 0.5R
- Rated current: 5A
- Max torque: 3N/m
- Shaft dia: 8mm, length: 20mm
- Weight: 1.4kg
- Instal hole: dia 5.2*4,
- Center distance: 47.2*47.2MM
