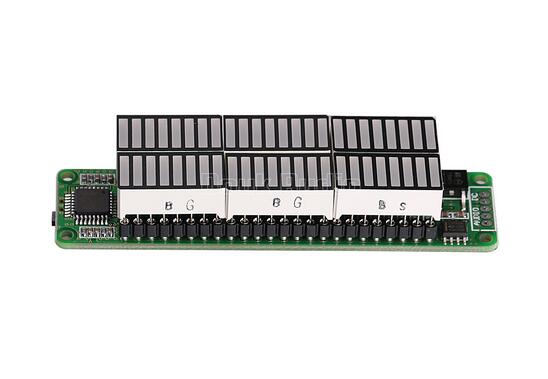

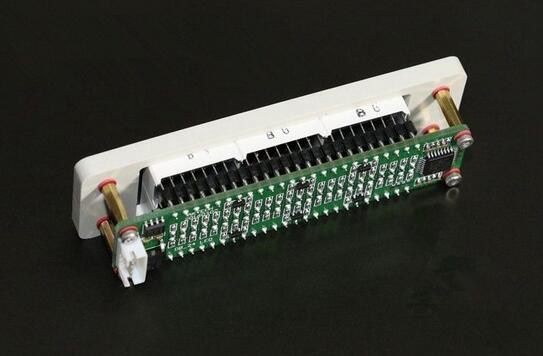

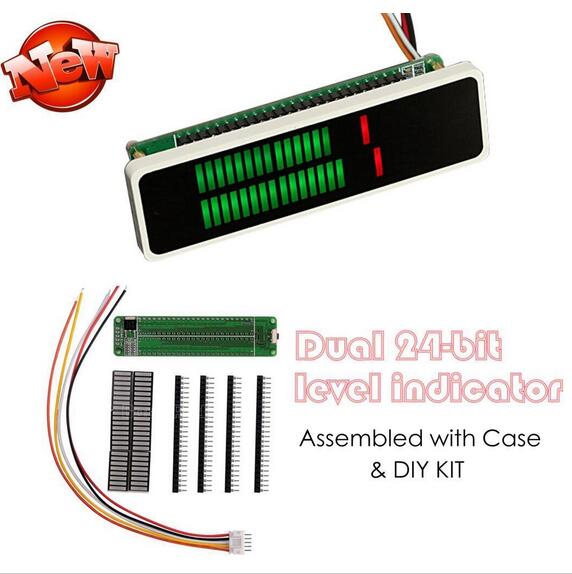

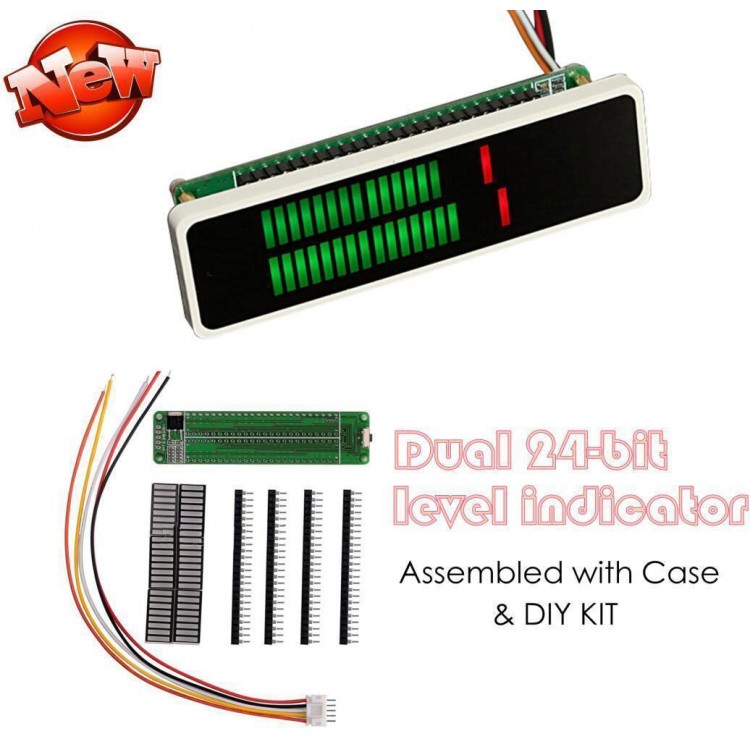

Level Indicator Dual 24 Stereo VU Meter AGC Mode LED Music Display Amplifier DIY

Level Indicator Dual 24 Stereo VU Meter AGC Mode LED Music Display Amplifier DIY


Descriptions:
- Ultra-small size stereo level lights, light bar can be adjusted to rise, the rate of decline and peak lamp residence time, the rate of decline. Each lamp set up a separate current limiting resistor, Ensure the same brightness of the different color lights ,Signal input through the op-amp isolation,Avoid single-chip high frequency interference AUDIO
- The minimum volume, PCB the size of 80 * 21mm LED module area : 61* 21mm
- The feature-rich, user can freely adjust each light bar and the main peak of the real speed of light, with the most suitable for their own display

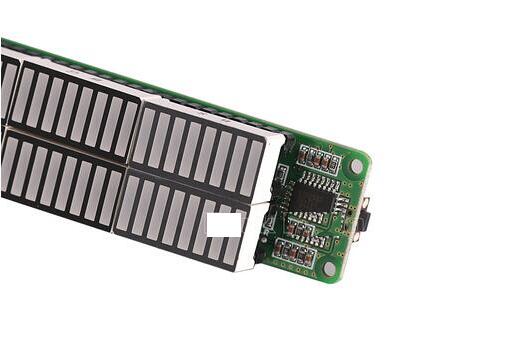

- Audio input through the TI original signal isolation, the maximum to avoid the single-chip high-frequency interference to an audio circuit in series
- Different colors of light alone provided a current limiting resistor. Guarantee a perfect match.
- This Level indicator lamps has 15 level brightness control;Ultra-small size stereo level lights, light bar can be adjusted to rise, the rate of decline and peak lamp residence time, the rate of decline. Each lamp set up a separate current limiting resistor, Ensure the same brightness of the different color lights ,Signal input through the op-amp isolation,Avoid single-chip high frequency interference AUDIO

Important note:
1. MCU in the sampling time-sampling, so that there is dual-channel simultaneous parallel input signal changes fast, the amplitude of the two light bar display may vary, this is a normal situation.
2. In extreme cases, there may be very slight high frequency noise. Recommended to replace the signal input line head position as dual-core shielded cable.
3. Operating voltage: 7-12v current can work in more than 100MA. Prohibited or voltage exceeds 15v cann't positive and negative reversed, whether the person will cause light damage level

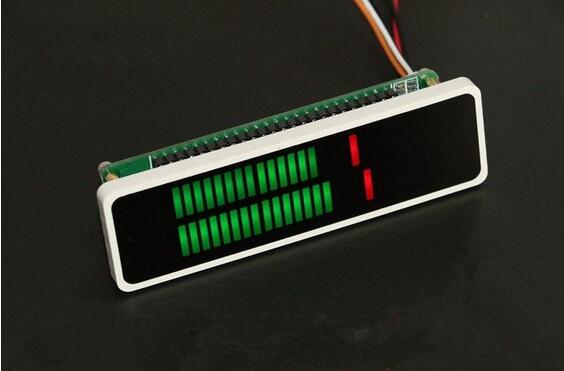

Display effect:
1. strip show+ after peak travel whereabouts
2. strip show after+ the disappearance of the peak travel
3. The strip display + (no peak display)
4. strip show+ right after the peak flow disappears
5. The strip display + (three lights)
6. striped marquee display + peak effect
7. Peak + strip show right jump lamp lights two bits whereabouts

Operating Voltage: 7v-12v 100MA
Colors: 16 Green + 8 red

Function operation video:Click here

AK_DB24_L Operating instructions

Features:
- Stereo 24 segment widening lights to ensure adequate
Dynamic range and fine enough
- Exclusive custom widening lights strip. (There are no similar
Lights in the market).
- The rising speed and the falling speed of the light bar, the
Holding time and the falling speed of the peak can be adjusted
Separately
- Real-time mode and AGC mode selection (super wide range of
AGC adaptive algorithm to ensure the best effect
- Small size, can be easily loaded into small case.

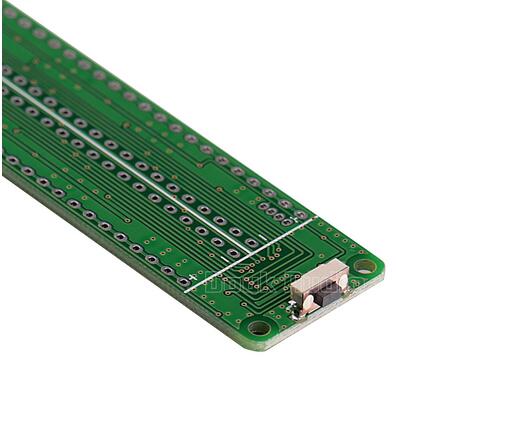

- Single button operation.
- Brightness adjustment function.

Specific operation: (There are LED instructions operating time)
Normal mode:
1. Press the button for 1 second - Mode switch (there will be a
Corresponding preview).
2. Press the button for 3 seconds - Switch between real mode
And AGC mode (there will be a corresponding preview).
3. Press the button for 5 seconds - Enter the speed setting
Mode.
4. Press the button for 10 seconds - Factory default.

Speed ​​setting mode: (In normal mode, press the button for 5
Seconds to enter, press the button for 5 seconds to exit).
1. press the button for 1 second
A. The rising speed of the light bar (15 optional)
B. The falling speed of the light bar (15 optional)
C. The holding time of the peak (15 optional)
D. The falling speed of the peak (15 optional)
E. Zoom in / out in real time mode (15 optional)
F. Brightness adjustment (15 optional)
Loop in these functions.
2. Click the button - Loop to change the parameters set.

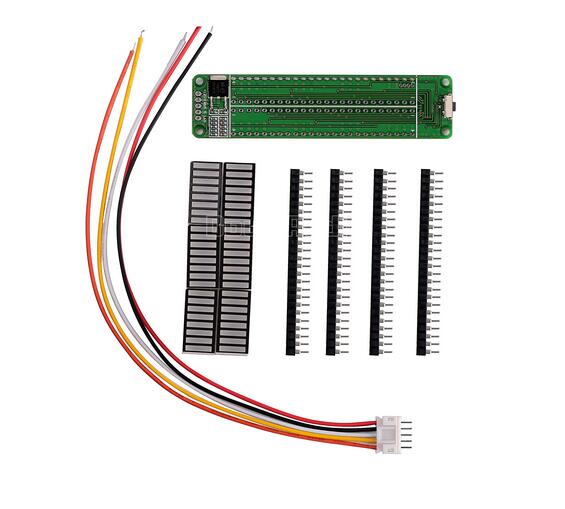

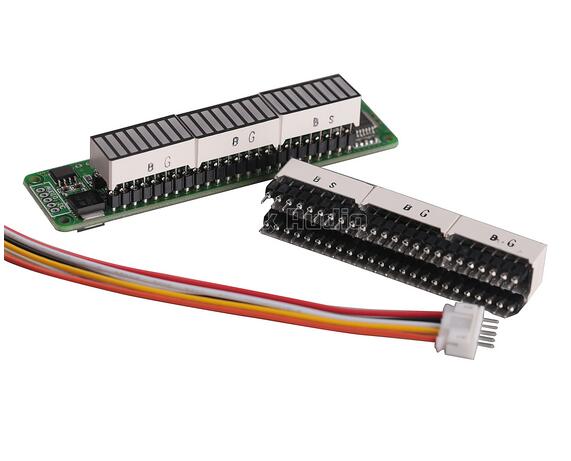

Package include:
- 1 x 24-bit Level indicator
- 1 x 5-pin Cable
