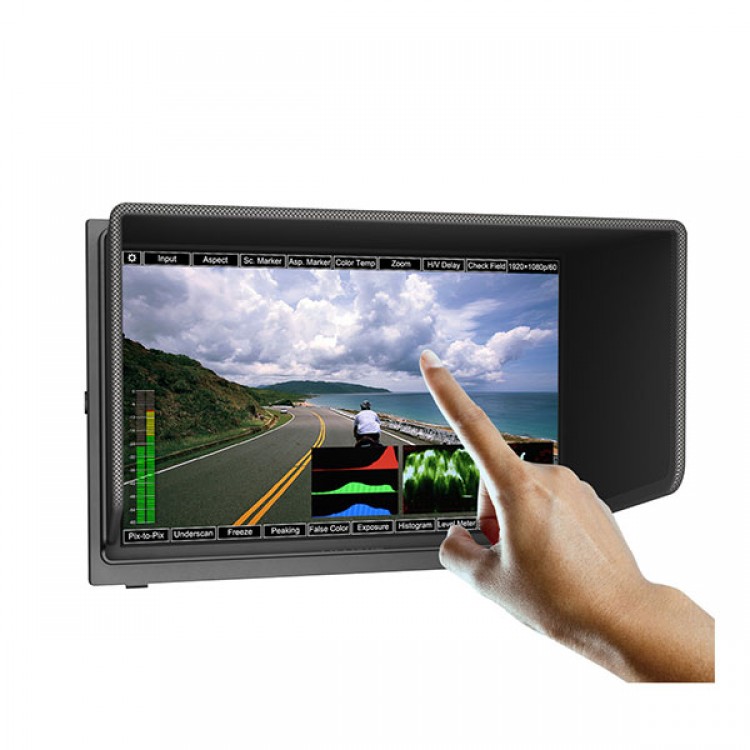

LILIPUT TM-1018/S 10.1" 3G-SDI Monitor for FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$799.00
  • Price in reward points: 7990 Reward Points: 80
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $783.02 $767.04 $743.07 $711.11 Contact US
Quantity:

LILIPUT TM-1018/S 10.1" 3G-SDI Monitor for FPV Photography

Description:

- Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.
Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realise and record Natural color.

Advanced Functions:
Histogram:

Histogram consist of RGB, Color & Luminance histograms.
    RGB histogram: shows the red, green, and blue channels in overlay histogram,
    Color histogram: shows histograms for each of the red, green, and blue channels,
    Luminance histogram: shows the distribution of brightness in an image as a graph of luminance.

Waveform
Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used for measuring the brightness, luminance or chroma values from a video input signal. It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with colour correction & camera white and black balance.

Vector scope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Audio Level Meter
The Audio Level Meters provide numerical indicators and headroom levels.
It can generate accurate audio level displays to prevent errors during monitoring.

Audio level meter
Abundant interfaces: 3G-SDI, HDMI, VGA, AV input
TM-1018/S includes 3G-SDI connection to meet a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.


DISPLAY
  Display Screen   10.1" LED IPS
  Touch Panel   Multi-touch capacitive
  Physical Resolution   1280×800, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   350cd/㎡
  Contrast   800:1
  Viewing Angle   170°/170°(H/V)
INPUT
  3G-SDI   1
  HDMI   1
  Composite   1
  TALLY   1
  VGA   1
OUTPUT
  3G-SDI   1
  HDMI   1
  VIDEO   1
AUDIO
  Speaker   1(build-in)
  Ear Phone Slot   1
POWER
  Current   1200mA
  Input Voltage   DC 7-24V
  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤12W
ENVIRONMENT
  Operating Temperature   0℃~50℃
  Storage Temperature   -20℃~60℃
DIMENSION
  Dimension(LWD)   250×170×29.6mm
  Weight   630g


Package includes:
Suitcase
Mount plate bracket
Battery Plate
Shoe Mount
Folding sun shade
Composite cable
HDMI A/C cable
VESA battery bracket
Mini XLR
Gimbal bracket
12V DC adapter
Manual
