Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $783.02 | $767.04 | $743.07 | $711.11 | Contact US |

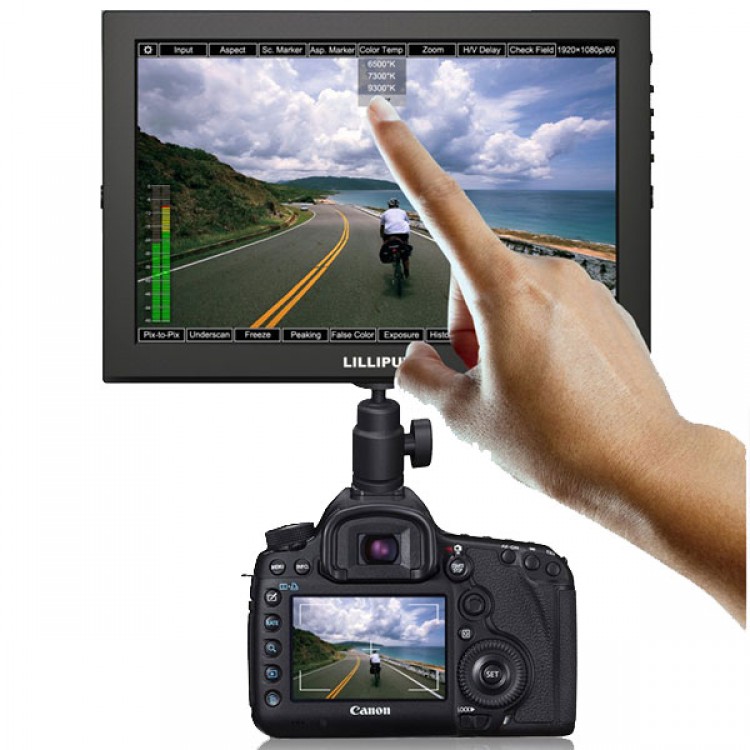

LILLIPUT 10.1" TM-1018/S SDI 1280X800 IPS Touch Camera Monitor peaking waveform
Specification:
- Color/RGB histogram, waveform, vector scope & Audio level meter,
- Multi-touch capacitive screen,
- IPS panel 170° wide viewing angles,
- High resolution: 1280×800,
- High contrast: 800:1,
- Abundant interfaces: 3G-SDI, HDMI, VGA, AV input,
- Wide voltage: DC 7-24V,
- Tally indicating, Slimmer & portable design!
- TM-1018/S (with new advanced Functions, with SDI input and output )
- Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.
Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realise and record Natural color.
Advanced Functions:
- Histogram:
- Histogram consist of RGB, Color & Luminance histograms.
- RGB histogram: shows the red, green, and blue channels in overlay histogram,
- Color histogram: shows histograms for each of the red, green, and blue channels,
- Luminance histogram: shows the distribution of brightness in an image as a graph of luminance
Waveform
- Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used for measuring the brightness, luminance or chroma values from a video input signal. It not only can warn the user for out-of-range conditions such as overexposure errors, but also assist with colour correction & camera white and black balance.
Vector scope
- Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Audio Level Meter
- The Audio Level Meters provide numerical indicators and headroom levels.
- It can generate accurate audio level displays to prevent errors during monitoring.
Pacakge includes:
- Suitcase x 1
- Mount plate bracket x 1
- Battery Plate (choose 2 out of 4) x 1
- Shoe Mount x 1
- Folding sun shade x 1
- Composite cable x 1
- HDMI A/C cable x 1
- VESA battery bracket x 1
- Mini XLR x 1
- Gimbal bracket x 1
- 12V DC adapter x 1
- Manual x 1
